74432 (ZD 380) - Toro 97cm TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) CYLINDER ASSEMBLY BRIGGS AND STRATTON 31A707-0116-E1 Parts Diagram

97cm TimeCutter Zero-Turn Mower

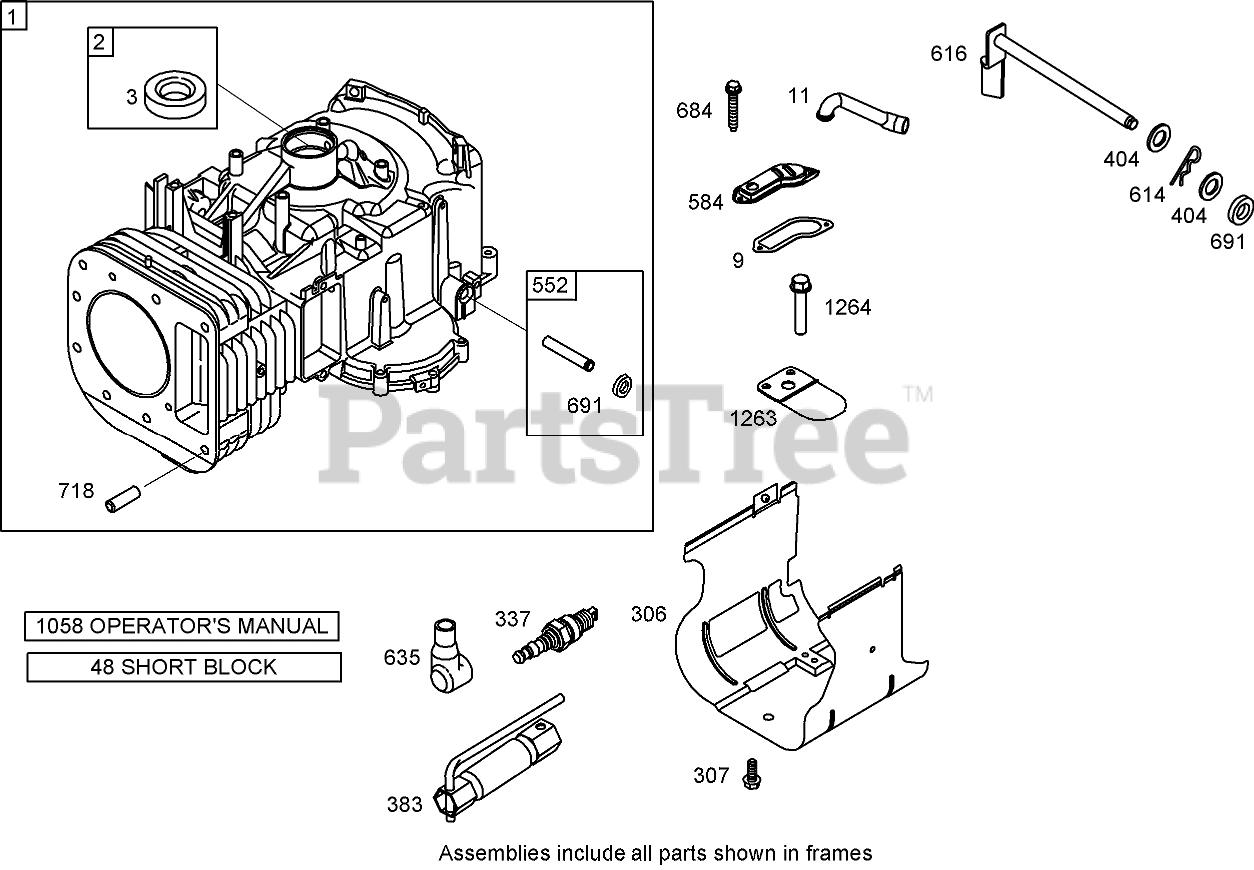

CYLINDER ASSEMBLY BRIGGS AND STRATTON 31A707-0116-E1 Parts Diagram

  • Title

1

Briggs & Stratton 697174

Cylinder ASM
(Superseded to 796010)

Note: Obtain parts from www.briggsandstratton.com

$524.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 399265

Bushing / Seal Kit (Magneto Side)
(Superseded to 797673)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, Qty 8

0

3

Toro 391086s

Seal-Oil (Magneto Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

3

Toro 391086s

Seal-Oil (Magneto Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

9

Briggs & Stratton 697109

Gasket-Breather

Note: Included in Engine Gasket Set (Ref. No. 358)

$7.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 697109

Gasket-Breather

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 697113

Tube-Breather
(Superseded to 794683)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 697761

Short Block

Note: Obtain parts from www.briggsandstratton.com

$597.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 697107

Shield-Cylinder

Note: Obtain parts from www.briggsandstratton.com

$55.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

Screw (Cylinder Shield)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

337

Briggs & Stratton 691043

Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

383

Toro 89838s

Wrench-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

404

Briggs & Stratton 691691

Washer (Governor Crank)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 5

0

552

Briggs & Stratton 697144

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 697112

Cover-Passage, Breather
(Superseded to 794682)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 6

0

614

Briggs & Stratton 691620

Pin-Cotter

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

Crank-Governor

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 2 left!

0

635

Briggs & Stratton 691909

Boot-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 5

0

684

Briggs & Stratton 697157

Screw (Breather Passage Cover)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 692407

Seal-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 8

0

691

Briggs & Stratton 692407

Seal-Shaft, Governor

Note: Included in Engine Gasket Set (Ref. No. 358)

$7.99

$

In Stock, Qty 8

0

718

Briggs & Stratton 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

1058

Toro MS5935

Manual-Operator

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1263

Briggs & Stratton 697124

Reed-Breather

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

1264

Briggs & Stratton 697104

Screw (Breather Reed)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0
