74432 (ZD 380) - Toro 97cm TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) GOVERNOR ASSEMBLY BRIGGS AND STRATTON 31A707-0116-E1 Parts Diagram

97cm TimeCutter Zero-Turn Mower

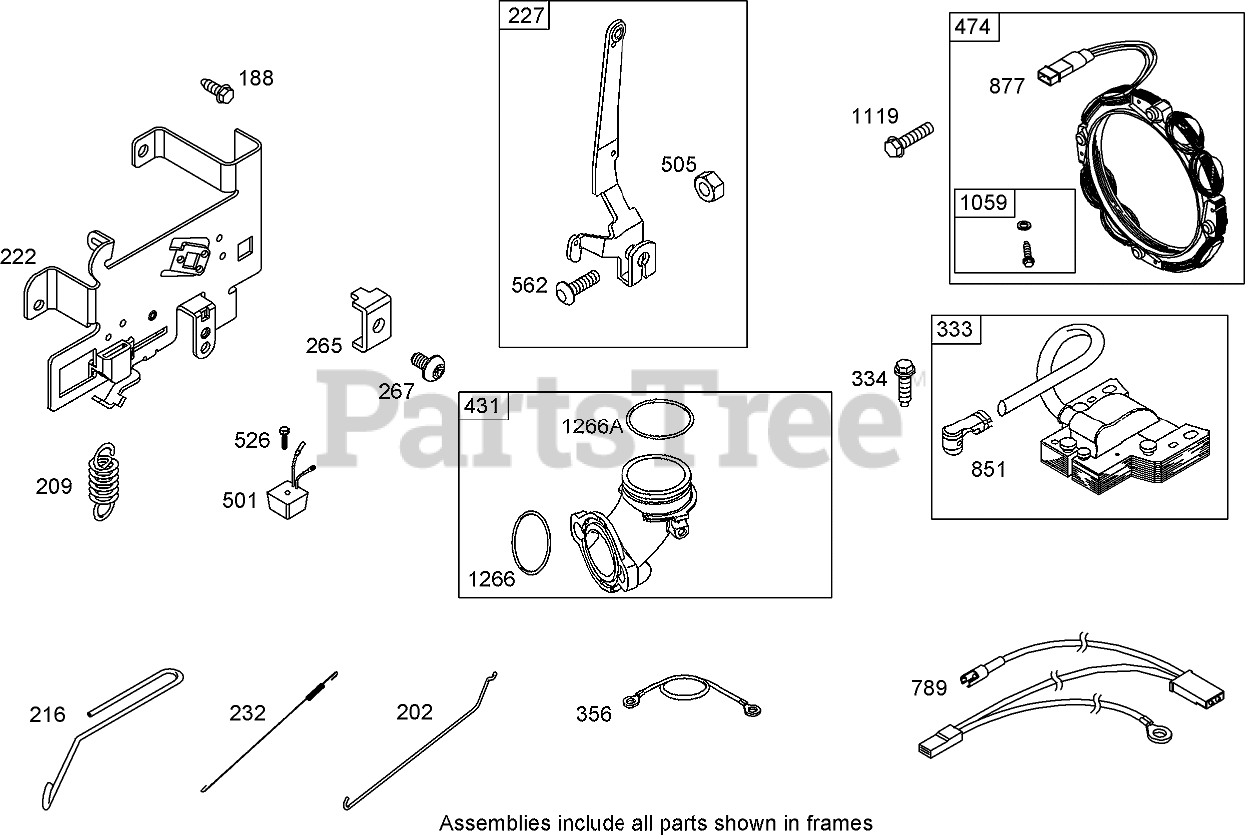

GOVERNOR ASSEMBLY BRIGGS AND STRATTON 31A707-0116-E1 Parts Diagram

  • Title
188

Briggs & Stratton 691693

Screw (Control Bracket)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 8

0

202

Briggs & Stratton 691841

Link-Governor, Mechanical

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 13

0

209

Briggs & Stratton 692208

Spring-Governor
(Superseded to 796260)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 13

0

216

Briggs & Stratton 691840

Link-Choke

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 19

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 691374

Lever-Control, Governor

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

Spring-Link, Governor

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

Clamp-Casing

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 6

0

267

Briggs & Stratton 695134

Screw (Casing Clamp)
(Superseded to 792629)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

Note: Obtain parts from www.briggsandstratton.com

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

Screw (Magneto Armature)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 697089

Stop-Wire

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 697122

Elbow-Intake (Armature)

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, only 1 left!

0

474

Briggs & Stratton 696457

Alternator
(Superseded to 592829)

Note: Obtain parts from www.briggsandstratton.com

$102.99

$

In Stock, Qty 7

0

501

Briggs & Stratton 691188

Regulator
(Superseded to 794360)

Note: Obtain parts from www.briggsandstratton.com

$64.99

$

In Stock, only 2 left!

0

505

Briggs & Stratton 691251

Nut (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

526

Briggs & Stratton 697088

Screw (Regulator)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 691119

Bolt (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 17

0

789

Briggs & Stratton 692037

Wiring-Harness

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 1 left!

0

851

Toro 493880s

Terminal-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

877

Briggs & Stratton 393537

Connector-Wire, Tri Circuit

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1059

Briggs & Stratton 698516

Screw and Washer Kit

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

Seal-O Ring (Intake Elbow)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

Seal-O Ring (Intake Elbow)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.49

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

Seal-O Ring (Intake Elbow)

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring (Intake Elbow)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.99

$

In Stock, Qty 19

0

1266A

Briggs & Stratton 697123

Seal-O Ring (Intake Elbow)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 19

0
