74425 (Z 530) - Toro 107cm TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) STYLING ASSEMBLY Parts Diagram

107cm TimeCutter Zero-Turn Mower

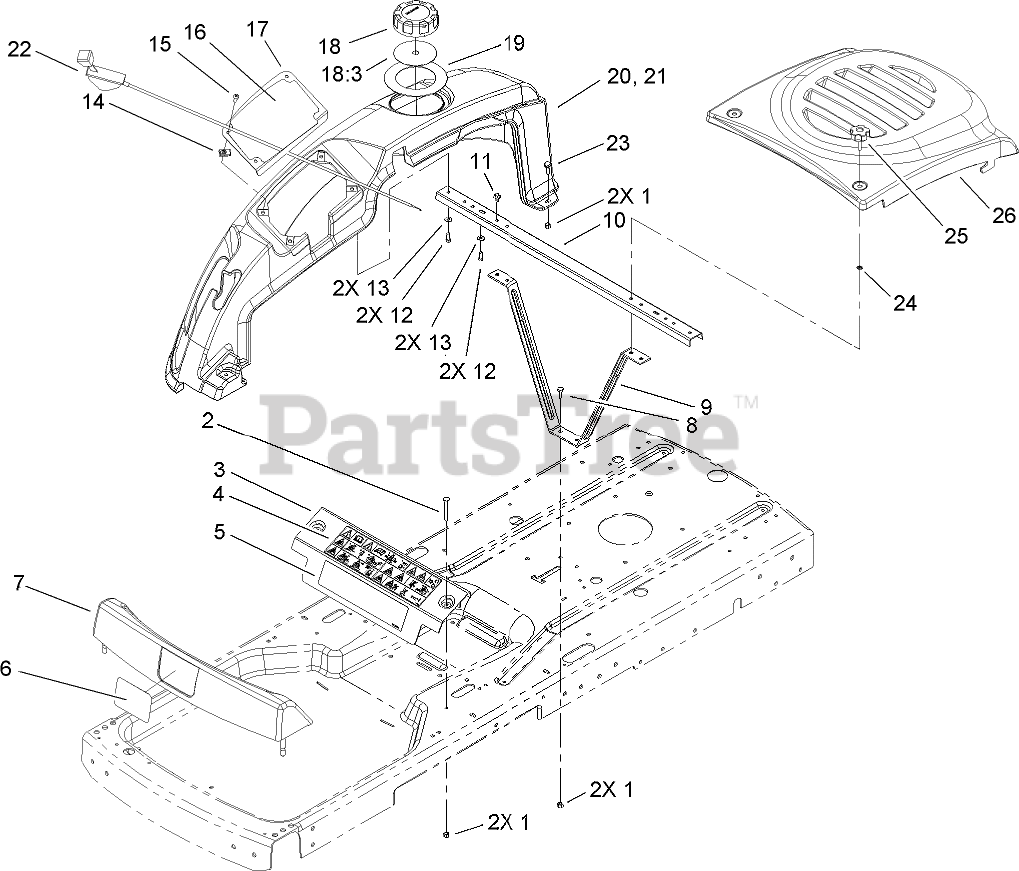

STYLING ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

2

Toro 3229-7

SCREW-CARR

$

$

Not available

3

Toro 106-2164-03

BRACKET-SUPPORT, FRONT

$

$

Not available

4

Toro 110-6567

DECAL-DANGER

$28.99

$

Usually ships in 3-6 days

0

5

Toro 110-6550

DECAL

$

$

Not available

6

Toro 105-6971

DECAL

$8.99

$

Usually ships in 3-6 days

0

7

Toro 105-6965

FOOTREST ASM

$

$

Not available

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 106-6994-03

BRACE ASM

$

$

Not available

10

Toro 108-2313-03

CHANNEL-CROSS

$

$

Not available

11

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

12

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

16

Toro 106-2224

DECAL-CONTROL

$40.99

$

Usually ships in 3-6 days

0

17

Toro 106-2167-03

PANEL-CONTROL

$

$

Not available

18

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

18:3

Toro 88-4010

GASKET-CAP, GAS

$34.99

$

In Stock, only 1 left!

0

19

Toro 106-7042

SEAL-RUBBER

$11.99

$

Usually ships in 3-6 days

0

20

Toro 106-2161

COVER-SIDE, RH

$314.99

$

Usually ships in 3-6 days

0

21

Toro 106-2162

COVER-SIDE, LH

Note: Not illustrated

$

$

Not available

22

Toro 104-8081

CABLE-THROTTLE

$115.99

$

In Stock, only 2 left!

0

23

Toro 11-9030

SCREW-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

24

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

25

Toro 106-7017

KNOB

$21.99

$

In Stock, only 3 left!

0

26

Toro 110-8608

COVER-ENGINE

$

$

Not available
