74425 (Z 530) - Toro 107cm TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) FAN COVER ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

107cm TimeCutter Zero-Turn Mower

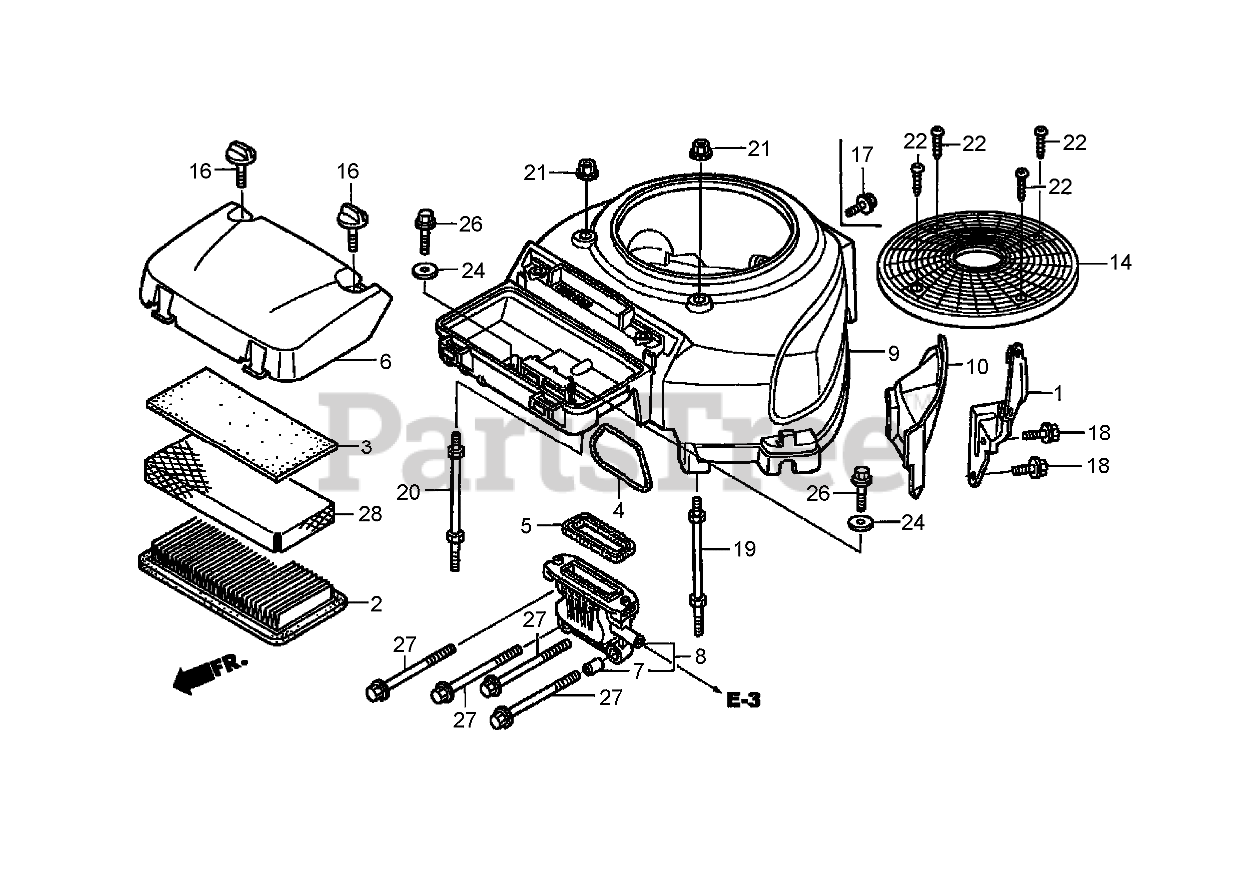

FAN COVER ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

  • Title

1

Honda 16711-Z0A-000

STAY-PUMP, FUEL

Note: Obtain parts from www.honda-engines.com

$24.99

$

Usually ships in 3-6 days

0

2

Honda 17211-Z0A-013

ELEMENT-CLEANER, AIR

Note: Obtain parts from www.honda-engines.com

$13.99

$

Usually ships in 3-6 days

0

3

Honda 17218-Z0A-810

FILTER (OUTER)

Note: Obtain parts from www.honda-engines.com

$6.99

$

Usually ships in 3-6 days

0

4

Honda 17228-Z0A-003

GASKET-CLEANER, AIR

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

5

Honda 17229-Z0A-000

SEAL-HOUSING, AIR CLEANER

Note: Obtain parts from www.honda-engines.com

$4.99

$

Usually ships in 3-6 days

0

6

Honda 17231-Z0A-000

COVER-CLEANER, AIR

Note: Obtain parts from www.honda-engines.com

$26.99

$

Usually ships in 3-6 days

0

7

Honda 17238-ZJ4-830

COLLAR A-CLEANER, AIR

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 3 left!

0

8

Honda 17410-Z0A-010

ELBOW-CLEANER, AIR

Note: Obtain parts from www.honda-engines.com

$18.99

$

Usually ships in 3-6 days

0

9

Honda 19611-Z0A-010ZA

COVER-FAN (NH1) (BLACK)

Note: Obtain parts from www.honda-engines.com

$52.99

$

Usually ships in 3-6 days

0

10

Honda 19612-Z0A-000

PLATE-SIDE

Note: Obtain parts from www.honda-engines.com

$10.99

$

Usually ships in 3-6 days

0

14

Honda 28452-Z0A-000ZA

GRID-SCREEN NH105 (MATTE BLACK)

Note: Obtain parts from www.honda-engines.com

$26.99

$

Usually ships in 3-6 days

0

16

Honda 90004-Z0A-000

BOLT (6MM)

Note: Obtain parts from www.honda-engines.com

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90013-ZL8-000

BOLT-FLANGE (6X14) (CT200)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 5

0

18

Honda 90014-952-000

BOLT-FLANGE (6X14) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 4 left!

0

19

Honda 90044-Z0A-000

BOLT-STUD, LEFT (IGNITION COIL)
(Superseded to 90044-Z0A-010)

Note: Obtain parts from www.honda-engines.com

$9.99

$

Usually ships in 3-6 days

0

20

Honda 90045-Z0A-000

BOLT-STUD, RIGHT (IGNITION COIL)
(Superseded to 90045-Z0A-010)

Note: Obtain parts from www.honda-engines.com

$9.99

$

Usually ships in 3-6 days

0

21

Honda 90201-ZM0-000

NUT-FLANGE (6MM)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, Qty 20+

0

22

Honda 93913-24410

SCREW-TAPPING (4X16)

Note: Obtain parts from www.honda-engines.com

$1.49

$

Usually ships in 3-6 days

0

22

Honda 93913-24780

SCREW-TAPPING (4X30) (P0)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 10

0

24

Honda 94103-06800

WASHER-PLAIN (6MM)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 10

0

26

Honda 95701-06012-00

BOLT-FLANGE (6X12)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 19

0

27

Honda 95801-06100-00

BOLT-FLANGE (6X100)

Note: Obtain parts from www.honda-engines.com

$2.49

$

Usually ships in 3-6 days

0

28

Honda 17212-Z0A-000

GRID-CLEANER, AIR

Note: Obtain parts from www.honda-engines.com

$25.99

$

In Stock, only 1 left!

0
