74425 (Z 530) - Toro 107cm TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) PISTON AND CONNECTING ROD ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

107cm TimeCutter Zero-Turn Mower

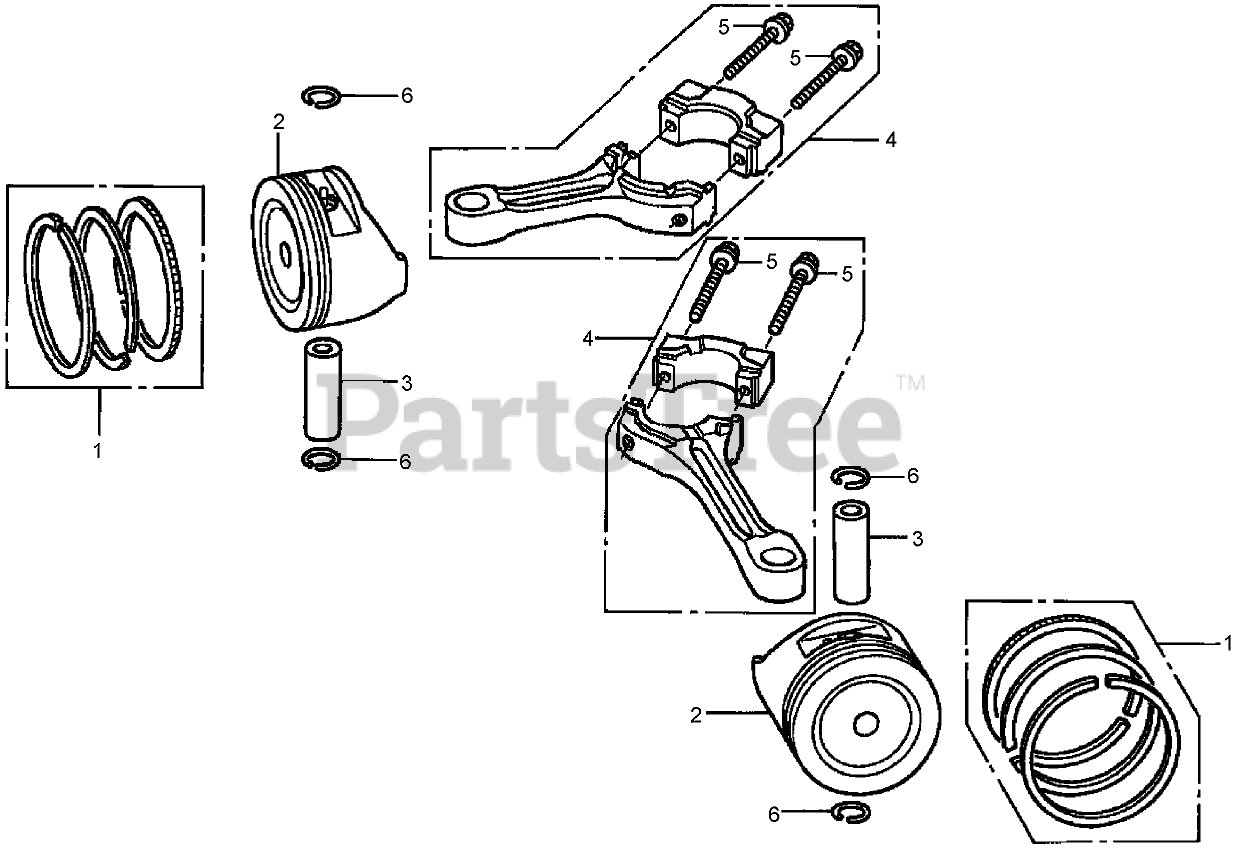

PISTON AND CONNECTING ROD ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

  • Title

1

Honda 13010-Z0A-003

PISTON RING SET (STD) (NIPPON)

Note: Obtain parts from www.honda-engines.com

$51.99

$

In Stock, only 2 left!

0

1

Honda 13010-Z0A-014

PISTON RING SET

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Honda 13101-Z0A-800

PISTON (STD)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

3

Honda 13111-ZJ1-840

PIN-PISTON

Note: Obtain parts from www.honda-engines.com

$18.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z0A-801

CONNECTING ROD ASM

Note: Obtain parts from www.honda-engines.com

$108.99

$

Usually ships in 3-6 days

0

5

Honda 90001-ZN1-000

BOLT-ROD, CONNECTING (6X37)

Note: Obtain parts from www.honda-engines.com

$8.99

$

Usually ships in 3-6 days

0

6

Honda 90551-ZE1-000

CLIP-PIN, PISTON (18 mm)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 20+

0
