74425 (Z 530) - Toro 107cm TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) ENGINE ASSEMBLY Parts Diagram

107cm TimeCutter Zero-Turn Mower

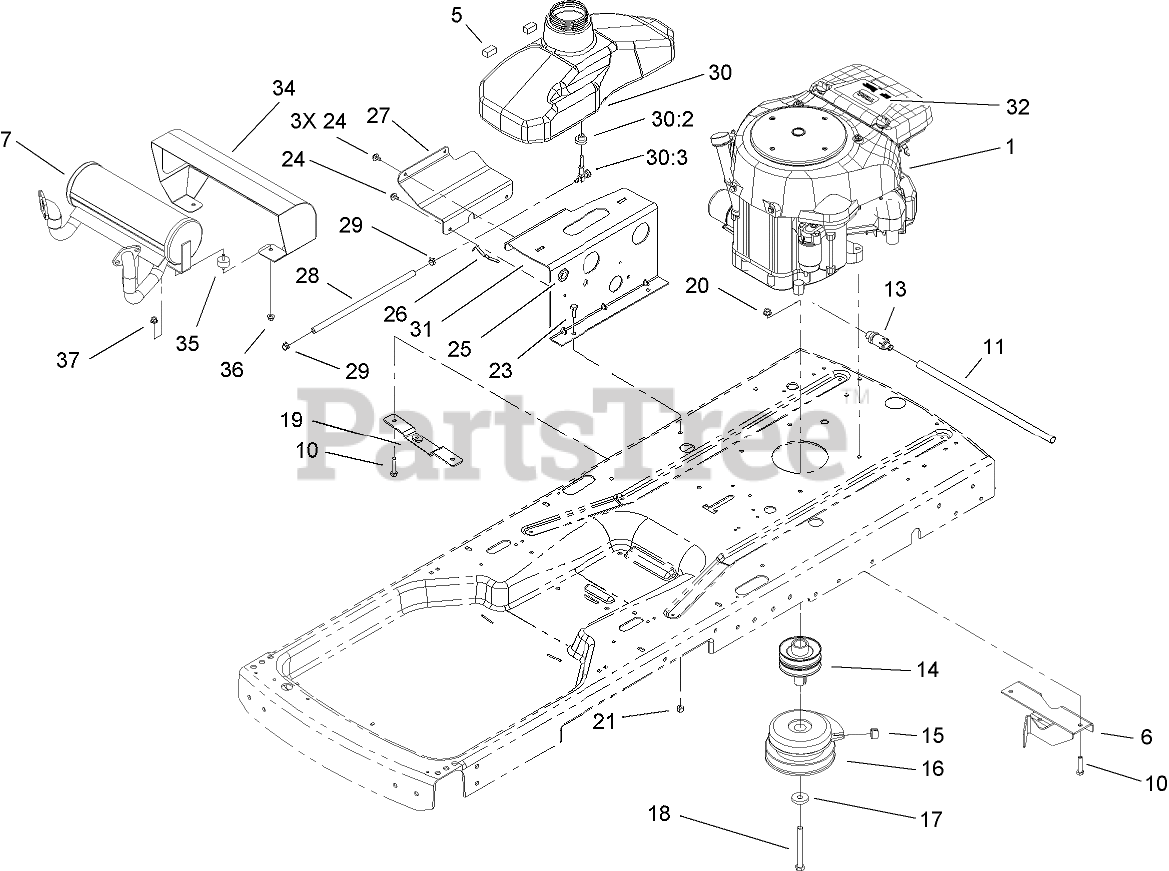

ENGINE ASSEMBLY Parts Diagram

  • Title
1

ENGINE-HONDA, GXV 530 EXA2LB

Note: Not serviced separately

$

$

Not available

1

ENGINE-HONDA, GXV 530 EXA2LB

Note: Obtain parts from www.honda-engines.com

$

$

Not available

5

Toro 104-2488

FOAM-SWITCH, SEAT

$7.99

$

Usually ships in 3-6 days

0

6

Toro 107-4873

BRACKET-PIVOT

$56.99

$

Usually ships in 3-6 days

0

7

Toro 110-8625

MUFFLER

$

$

Not available

10

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

11

Toro 106-7022

TUBE-DRAIN, OIL

$9.49

$

In Stock, only 1 left!

0

13

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

14

Toro 105-3472

PULLEY-ENGINE

$298.99

$

Usually ships in 3-6 days

0

15

Toro 98-5023

BUMPER

$8.49

$

Usually ships in 3-6 days

0

16

Toro 104-3334

CLUTCH-ELECTRIC

$474.99

$

In Stock, only 2 left!

0

17

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

18

Toro 3212-16

SCREW-HH

$19.99

$

In Stock, Qty 12

0

19

Toro 106-2156

PLATE-MOUNT, IDLER

$37.99

$

Usually ships in 3-6 days

0

20

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

25

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

26

Toro 609830

SPRING

$5.49

$

In Stock, Qty 6

0

27

Toro 108-2315-03

PLATE-SUPPORT

$

$

Not available

28

Toro 110-1876

HOSE-FUEL

$12.99

$

In Stock, only 1 left!

0

29

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

30

Toro 105-3464

GAS TANK ASM

$

$

Not available

30:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 18

0

30:3

Toro 110-6565

VALVE-FUEL

$38.99

$

Usually ships in 3-6 days

0

31

Toro 108-2314-03

PLATE-TANK

$

$

Not available

32

$

$

Not available

34

Toro 110-8623-03

SHIELD-MUFFLER

$

$

Not available

35

Toro 108-6183

ISOLATOR-RUBBER

$

$

Not available

36

Toro 32128-32

NUT-HHF

$2.99

$

Usually ships in 3-6 days

0

37

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0
