74425 (Z 530) - Toro 107cm TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) CONTROL ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

107cm TimeCutter Zero-Turn Mower

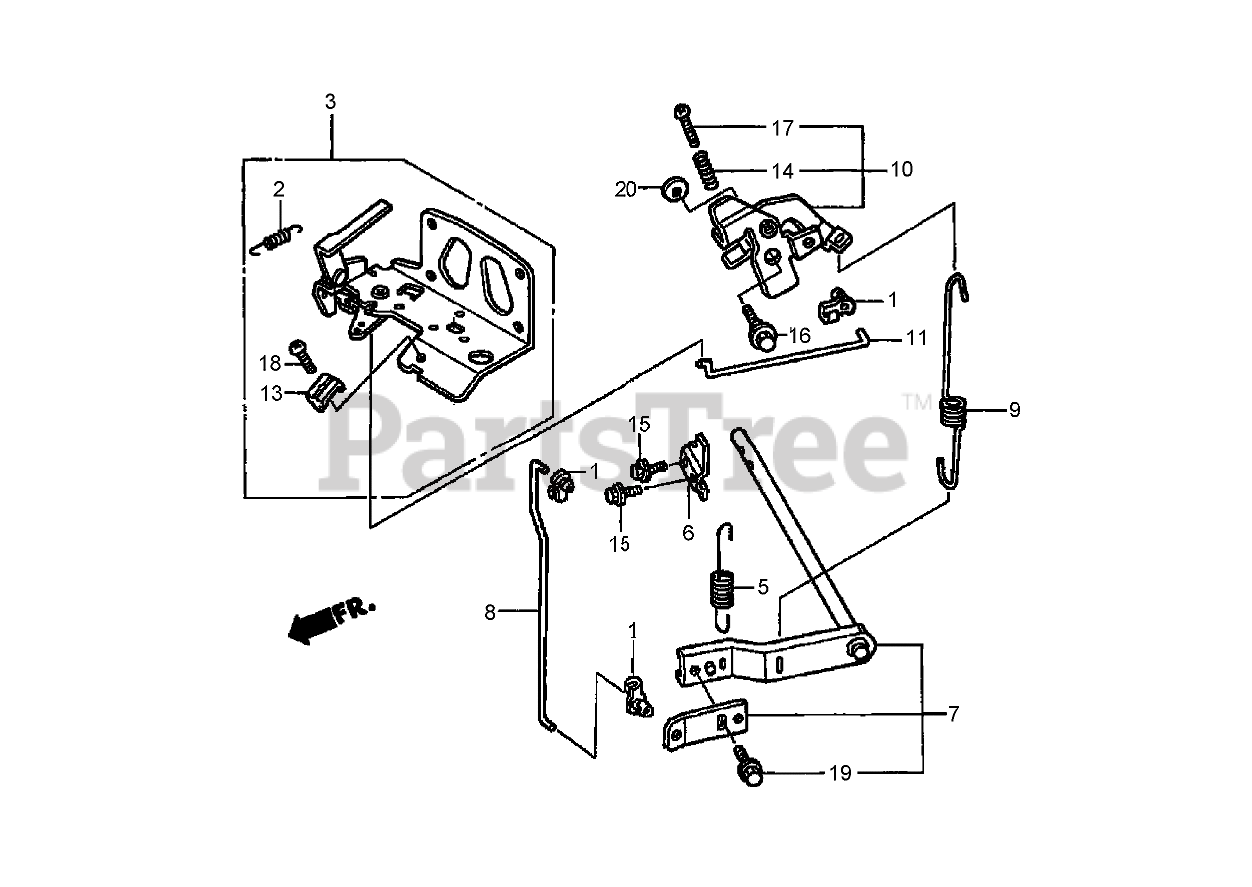

CONTROL ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

  • Title

1

Honda 16263-ZJ7-871

ROD-JOINT

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

2

Honda 16268-Z0A-300

SPRING-RETURN, CHOKE

Note: Obtain parts from www.honda-engines.com

$3.99

$

Usually ships in 3-6 days

0

3

Honda 16500-Z0A-000

CONTROL ASM (1-LEVER)

Note: Obtain parts from www.honda-engines.com

$60.99

$

Usually ships in 3-6 days

0

5

Honda 16534-Z0A-000

SPRING-STARTER (Up to Engine Serial No. 1014986)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

5

Honda 16534-Z0P-V00

SPRING-STARTER (From Engine Serial No. 1038646)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 4 left!

0

6

Honda 16542-Z0A-000

FORK-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$9.49

$

Usually ships in 3-6 days

0

7

Honda 16550-Z0A-000

ARM-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$38.99

$

Usually ships in 3-6 days

0

8

Honda 16555-Z0A-000

ROD-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, only 2 left!

0

9

Honda 16561-Z0A-000

SPRING-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, only 1 left!

0

10

Honda 16565-Z0A-000

LINK-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$24.99

$

Usually ships in 3-6 days

0

11

Honda 16566-Z0A-000

ROD-LINK, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$6.99

$

Usually ships in 3-6 days

0

13

Honda 16576-891-000

Holder-Cable

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, only 1 left!

0

14

Honda 16584-883-300

SPRING-ADJUSTING, CONTROL

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, Qty 6

0

15

Honda 90002-892-000

BOLT-FLANGE (5X10)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 5

0

16

Honda 90015-Z0A-000

BOLT-FLANGE (6MM) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90016-ZG9-N30

SCREW-RECESSED (5X25)

Note: Obtain parts from www.honda-engines.com

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90016-Z0A-V00

SCREW-RECESSED (5X18)

Note: Obtain parts from www.honda-engines.com

$2.99

$

Usually ships in 3-6 days

0

19

Honda 95701-06010-00

Bolt-Flange (6X10)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 8

0

20

Honda 94101-06800

WASHER-PLAIN (6MM)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+

0
