74425 (Z 530) - Toro 107cm TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) CAMSHAFT ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

107cm TimeCutter Zero-Turn Mower

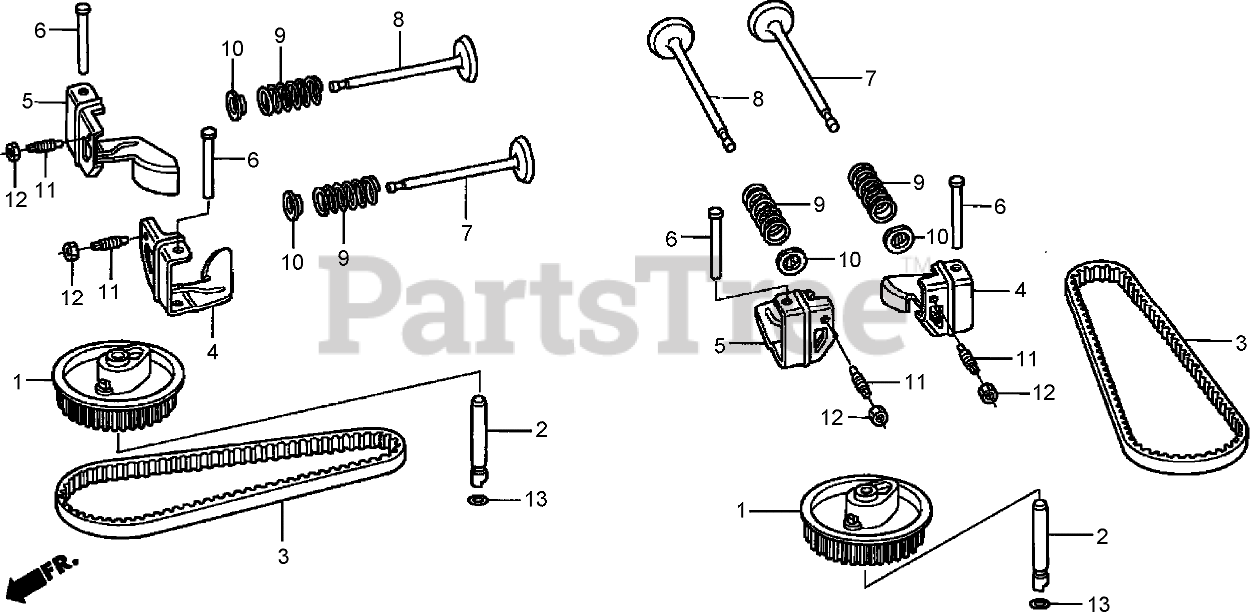

CAMSHAFT ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

  • Title

1

Honda 14320-Z0A-000

PULLEY-CAMSHAFT

Note: Obtain parts from www.honda-engines.com

$34.99

$

In Stock, only 1 left!

0

2

Honda 14324-ZL8-000

SHAFT-PULLEY, CAM

Note: Obtain parts from www.honda-engines.com

$6.49

$

In Stock, Qty 8

0

3

Honda 14400-Z0A-003

BELT-TIMING (97HU8 G-200)

Note: Obtain parts from www.honda-engines.com

$36.99

$

Usually ships in 3-6 days

0

4

Honda 14431-Z0A-000

ARM-VALVE ROCKER, INTAKE

Note: Obtain parts from www.honda-engines.com

$13.99

$

In Stock, only 1 left!

0

5

Honda 14441-Z0A-000

ARM-VALVE ROCKER, EXHAUST

Note: Obtain parts from www.honda-engines.com

$17.99

$

In Stock, only 1 left!

0

6

Honda 14461-Z0A-000

SHAFT-ARM, ROCKER

Note: Obtain parts from www.honda-engines.com

$3.99

$

Usually ships in 3-6 days

0

7

Honda 14711-Z0A-000

VALVE-INTAKE

Note: Obtain parts from www.honda-engines.com

$22.99

$

Usually ships in 3-6 days

0

8

Honda 14721-Z0A-000

VALVE-EXHAUST

Note: Obtain parts from www.honda-engines.com

$34.99

$

In Stock, only 1 left!

0

9

Honda 14751-ZE1-000

Spring-Valve

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, only 3 left!

0

10

Honda 14771-ZE1-000

RETAINER-SPRING, VALVE (INTAKE)
(Superseded to 14771-Z0T-900)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 14

0

11

Honda 90012-333-000

SCREW-ADJUSTING, TAPPET

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, Qty 20+

0

12

Honda 90206-001-000

NUT-ADJUSTING, TAPPET

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 20+

0

13

Honda 91301-ZM0-V31

O-RING (6.8X19) (ARAI)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 20+

0
