74419 (Z 380) - Toro 97cm TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) RECYCLER ASSEMBLY Parts Diagram

97cm TimeCutter Zero-Turn Mower

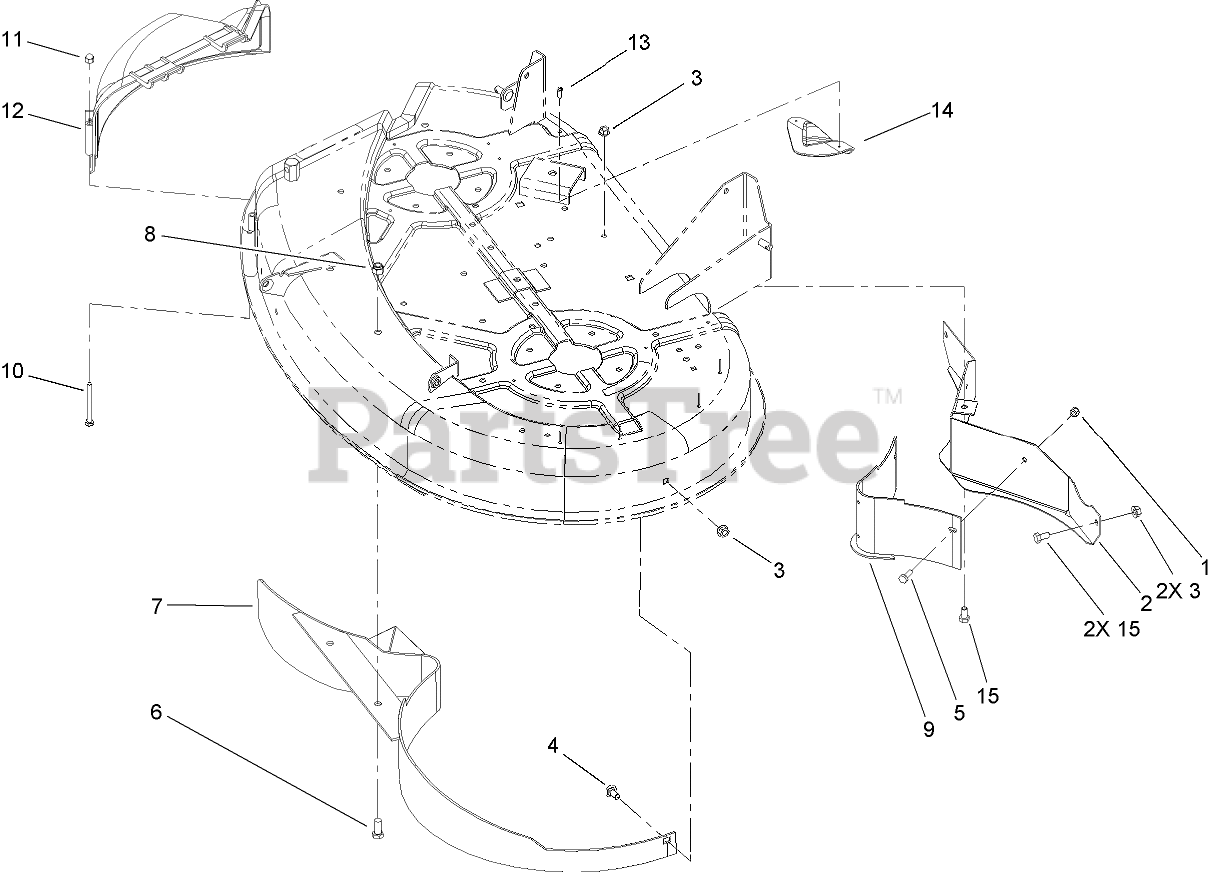

RECYCLER ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 107-2484-03

BAFFLE-REAR

$

$

Not available

3

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

4

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

7

Toro 79-1600-03

BAFFLE ASM

$109.99

$

Usually ships in 3-6 days

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 79-1640-03

BAFFLE ASM

$69.99

$

Usually ships in 3-6 days

0

10

Toro 321-55

SCREW-HH

$28.99

$

Usually ships in 3-6 days

0

11

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

12

Toro 88-4430

COVER-RECYCLER

$

$

Not available

13

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

14

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

15

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0
