74419 (Z 380) - Toro 97cm TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) HYDRO AND BELT DRIVE ASSEMBLY Parts Diagram

97cm TimeCutter Zero-Turn Mower

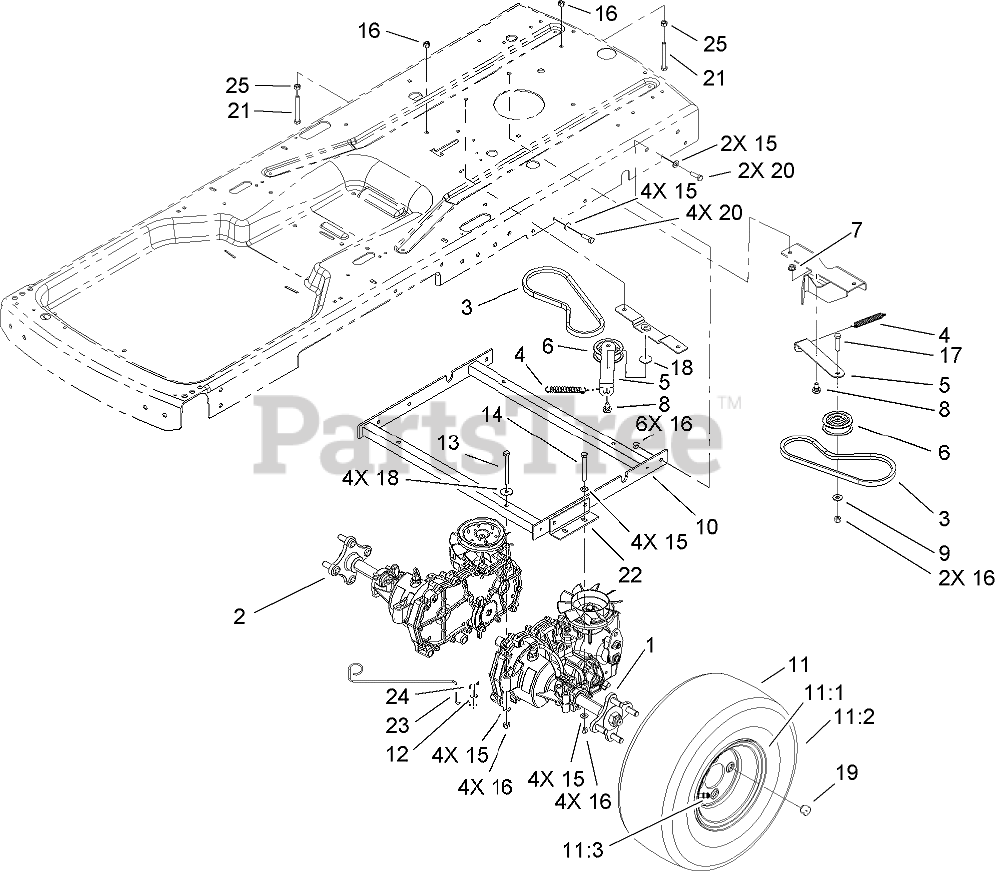

HYDRO AND BELT DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 112-4760

TRANSAXLE-HYDRO, LH
(Superseded to 114-8521)

$2229.99

$

Usually ships in 3-6 days

0

2

Toro 112-4761

TRANSAXLE-HYDRO, RH
(Superseded to 114-8520)

$2204.99

$

Usually ships in 3-6 days

0

3

Toro 106-2174

V-BELT

$24.99

$

In Stock, only 3 left!

0

4

Toro 95-3805

SPRING

$14.99

$

In Stock, Qty 7

0

5

Toro 105-7047

ARM-IDLER

$15.99

$

In Stock, only 2 left!

0

6

Toro 106-2176

PULLEY-IDLER

$31.99

$

In Stock, Qty 20+

0

7

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

8

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

9

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 107-4878-03

HYDRO MOUNT ASM

$208.99

$

In Stock, only 1 left!

0

11

Toro 106-7003

REAR WHEEL ASM

$

$

Not available

11:1

$219.99

$

Usually ships in 3-6 days

0

11:2

$236.99

$

Usually ships in 3-6 days

0

11:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

11:99

Toro 107-2491

TUBE-TIRE

Note: Not illustrated

$83.99

$

In Stock, only 2 left!

0

12

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 322-20

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

14

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

19

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

20

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

22

Toro 105-7039-03

SUPPORT-HYDRO

$

$

Not available

23

Toro 107-4875

ROD-BYPASS

$28.99

$

Usually ships in 3-6 days

0

24

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

25

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0
