74419 (Z 380) - Toro 97cm TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) CARBURETOR OVERHAUL KIT (KEIHIN) BRIGGS AND STRATTON 31A707-0116-E1 Parts Diagram

97cm TimeCutter Zero-Turn Mower

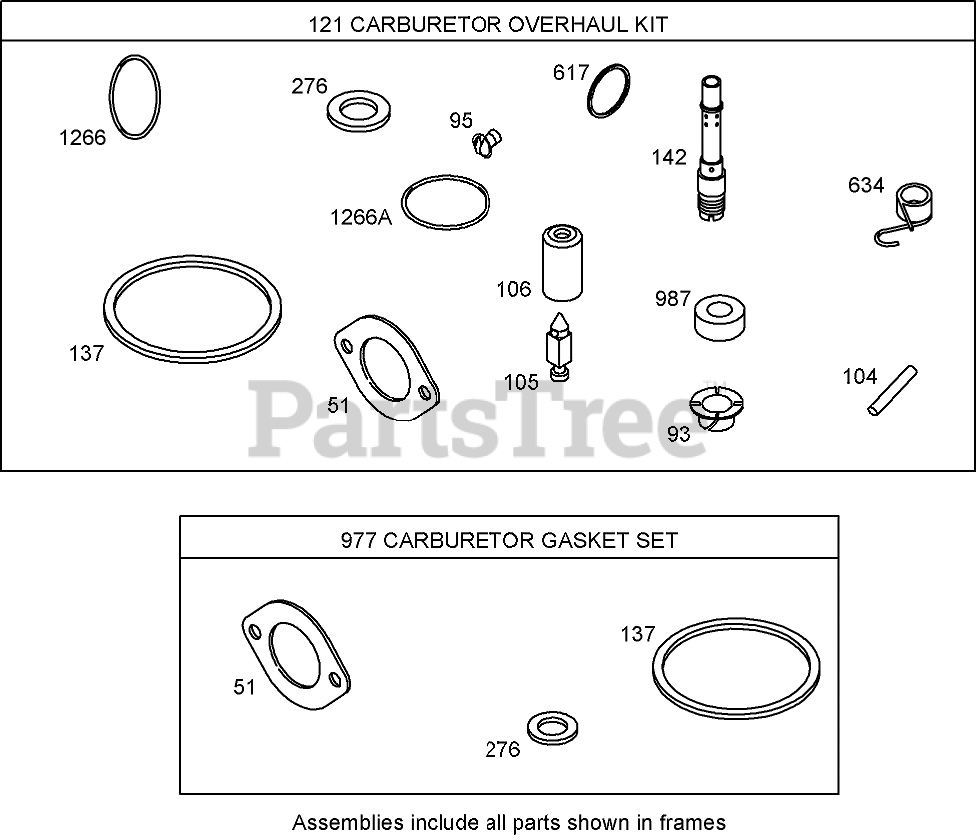

CARBURETOR OVERHAUL KIT (KEIHIN) BRIGGS AND STRATTON 31A707-0116-E1 Parts Diagram

  • Title

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: For Service with Keihin Carburetors

$3.49

$

In Stock, Qty 20+

0

93

Briggs & Stratton 690602

Bushing-Shaft, Throttle

Note: For Service with Keihin Carburetors

$9.49

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 690602

Bushing-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$9.49

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 690602

Bushing-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 691636

Screw (Throttle Valve)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 691636

Screw (Throttle Valve)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 691636

Screw (Throttle Valve)

Note: For Service with Keihin Carburetors

$3.99

$

In Stock, only 2 left!

0

104

Briggs & Stratton 690525

Pin-Hinge, Carburetor Float

Note: For Service with Keihin Carburetors

$4.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Hinge, Carburetor Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Hinge, Carburetor Float

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

105

Toro 231855s

Valve-Float, Needle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

105

Toro 231855s

Valve-Float, Needle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

105

Toro 231855s

Valve-Float, Needle

Note: For Service with Keihin Carburetors

$

$

Currently unavailable

106

Briggs & Stratton 690577

Seat-Inlet

Note: For Service with Keihin Carburetors

$7.99

$

In Stock, only 3 left!

0

106

Briggs & Stratton 690577

Seat-Inlet

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$7.99

$

In Stock, only 3 left!

0

106

Briggs & Stratton 690577

Seat-Inlet

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 3 left!

0

121

Briggs & Stratton 697241

Carburetor Overhaul Kit

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 697241

Carburetor Overhaul Kit

Note: For Service with Keihin Carburetors

$43.99

$

In Stock, only 1 left!

0

137

Toro 281165s

Gasket-Bowl, Float

Note: For Service with Keihin Carburetors

$

$

Currently unavailable

137

Toro 281165s

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

137

Toro 281165s

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

137

Toro 281165s

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

142

Briggs & Stratton 697140

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Not available

142

Briggs & Stratton 697140

Nozzle-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

142

Briggs & Stratton 697140

Nozzle-Carburetor

Note: For Service with Keihin Carburetors

$

$

Not available

276

Briggs & Stratton 692255

Washer-Sealing

Note: For Service with Keihin Carburetors

$5.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$5.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 692138

Seal-O Ring (Intake Manifold)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.49

$

In Stock, Qty 18

0

617

Briggs & Stratton 692138

Seal-O Ring (Intake Manifold)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.49

$

In Stock, Qty 18

0

617

Briggs & Stratton 692138

Seal-O Ring (Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 18

0

617

Briggs & Stratton 692138

Seal-O Ring (Intake Manifold)

Note: For Service with Keihin Carburetors

$5.49

$

In Stock, Qty 18

0

634

Briggs & Stratton 690802

Spring and Seal Asm

Note: For Service with Keihin Carburetors

$9.49

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 690802

Spring and Seal Asm

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 690802

Spring and Seal Asm

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$9.49

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 690192

Carburetor Gasket Set
(Superseded to 497535)

Note: Obtain parts from www.briggsandstratton.com

$67.99

$

In Stock, only 2 left!

0

977

Briggs & Stratton 690192

Carburetor Gasket Set
(Superseded to 497535)

Note: For Service with Keihin Carburetors

$67.99

$

In Stock, only 2 left!

0

987

Briggs & Stratton 691326

Seal-Shaft, Throttle

Note: For Service with Keihin Carburetors

$5.49

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691326

Seal-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691326

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.49

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

Seal-O Ring (Intake Elbow)

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.49

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

Seal-O Ring (Intake Elbow)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.49

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

Seal-O Ring (Intake Elbow)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

Seal-O Ring (Intake Elbow)

Note: For Service with Keihin Carburetors

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring (Intake Elbow)

Note: For Service with Keihin Carburetors

$5.99

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring (Intake Elbow)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring (Intake Elbow)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.99

$

In Stock, Qty 20+

0
