74419 (Z 380) - Toro 97cm TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) 38IN DECK ASSEMBLY Parts Diagram

97cm TimeCutter Zero-Turn Mower

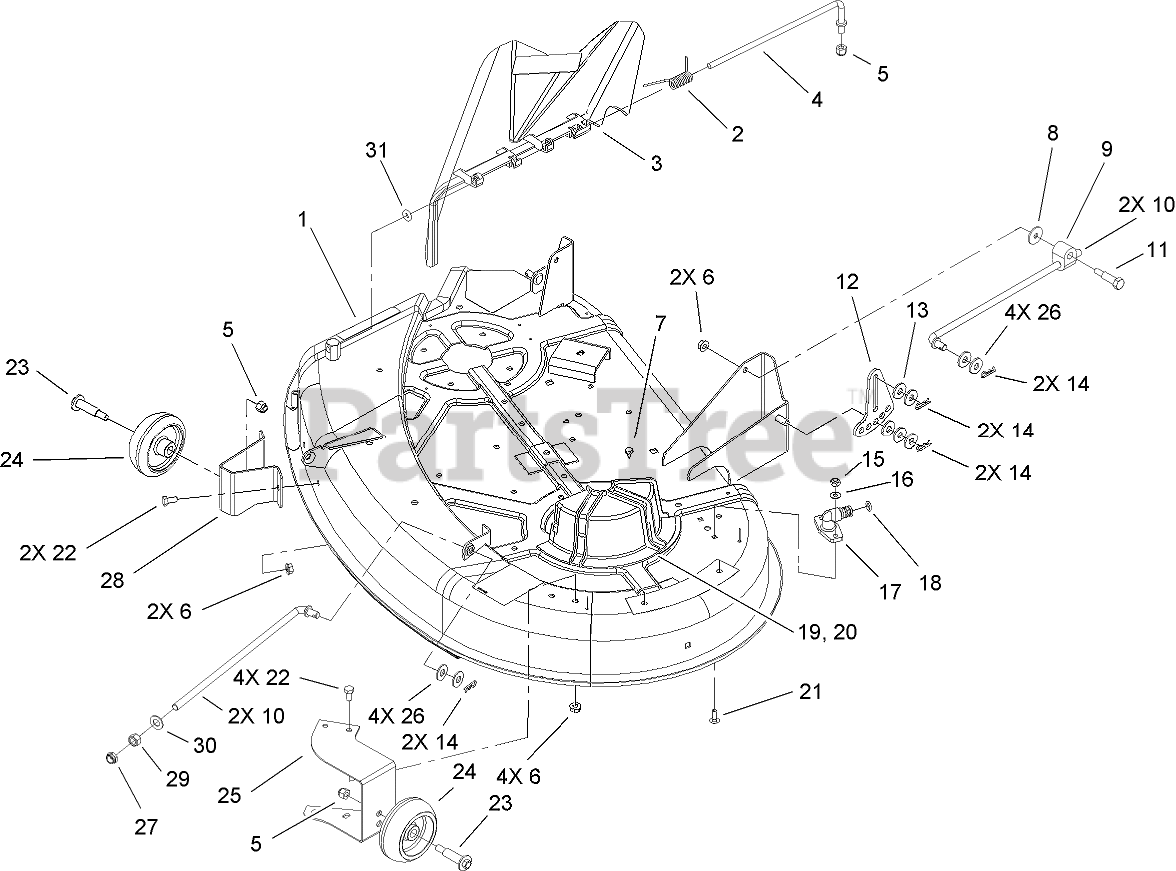

38IN DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 107-9139

38 INCH DECK ASM

$1264.99

$

Usually ships in 3-6 days

0

2

Toro 57-6950

SPRING

$26.99

$

In Stock, only 1 left!

0

3

Toro 93-7695

DEFLECTOR ASM

$95.99

$

In Stock, only 2 left!

0

4

Toro 95-1661

ROD-PIVOT

$20.99

$

In Stock, only 1 left!

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 12

0

6

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 8

0

9

Toro 88-4230

TRUNNION-HOC

$15.99

$

In Stock, only 1 left!

0

10

Toro 105-3437

ROD-HANGER

$32.99

$

In Stock, only 4 left!

0

11

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

Usually ships in 3-6 days

0

12

Toro 88-5570-03

LINK-ADJUSTING, HOC

$15.99

$

Usually ships in 3-6 days

0

13

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 14

0

14

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 18

0

16

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

18

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

19

Toro 88-4030

GUIDE-BELT, LH

$41.99

$

Usually ships in 3-6 days

0

20

Toro 88-4020

GUIDE-BELT, RH

Note: Not illustrated

$41.99

$

In Stock, only 1 left!

0

21

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

22

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

23

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, only 3 left!

0

24

Toro 701756

WHEEL-GAGE

$8.49

$

In Stock, Qty 14

0

25

Toro 107-1717-01

BRACKET-WHEEL, GAGE (FRONT, LH)

$87.99

$

Usually ships in 3-6 days

0

26

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

27

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

28

Toro 106-8704-01

BRACKET-WHEEL, GAGE (FRONT, RH)

$65.99

$

Usually ships in 3-6 days

0

29

Toro 3219-4

NUT-HEX

$3.99

$

Usually ships in 3-6 days

0

30

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

31

Toro 106-8745

O-RING

$1.99

$

In Stock, only 2 left!

0
