74418 (Z 400) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) SEAT AND BRACKET ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

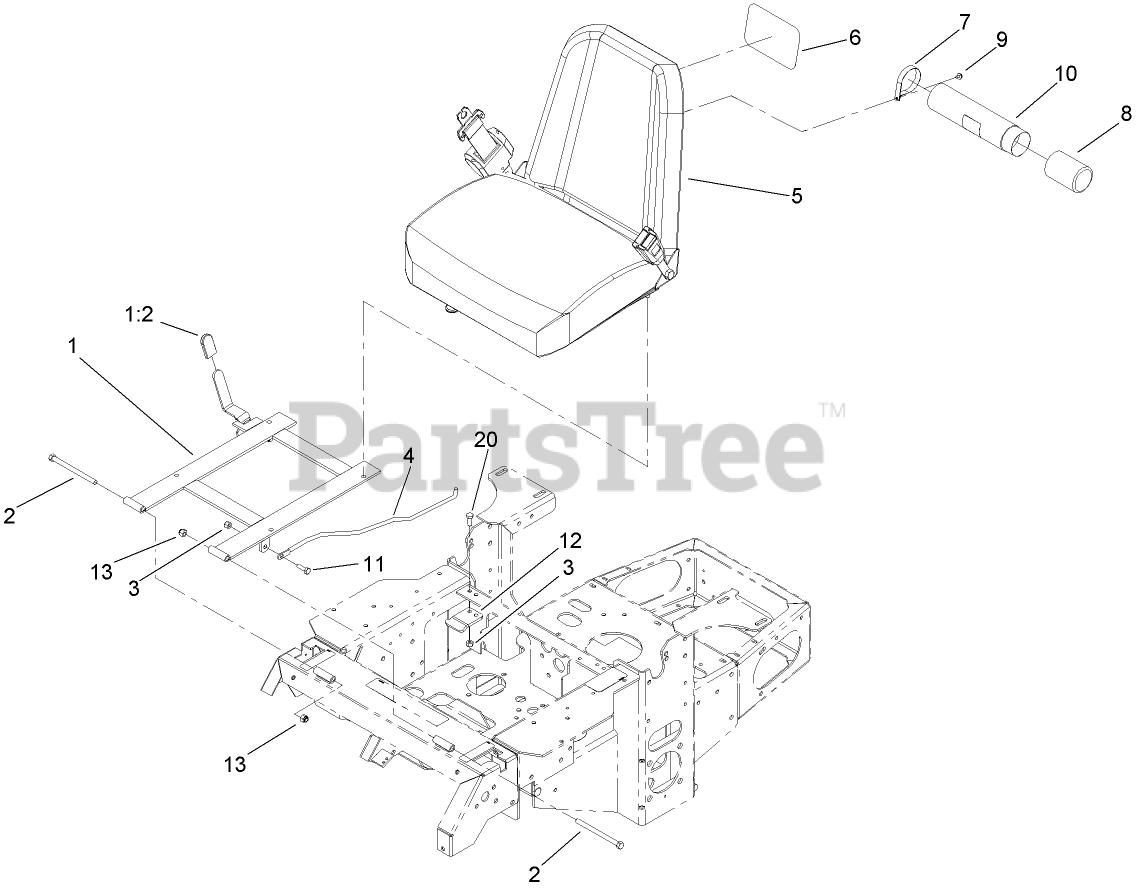

SEAT AND BRACKET ASSEMBLY Parts Diagram

  • Title

1

Toro 110-5850

SEAT FRAME AND LATCH ASM

$160.99

$

Usually ships in 3-6 days

0

1:2

Toro 103-4434

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

2

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

4

Toro 103-1731

ROD-RETAINER, SEAT

$21.99

$

In Stock, only 1 left!

0

5

Toro 110-5738

SEAT ASM

$

$

Not available

6

Toro 99-4693

DECAL

$25.99

$

In Stock, only 2 left!

0

7

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

8

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

9

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

10

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

11

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 103-5961

CATCH-LATCH, SEAT

$

$

Not available

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
