74418 (Z 400) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) PARKING BRAKE ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

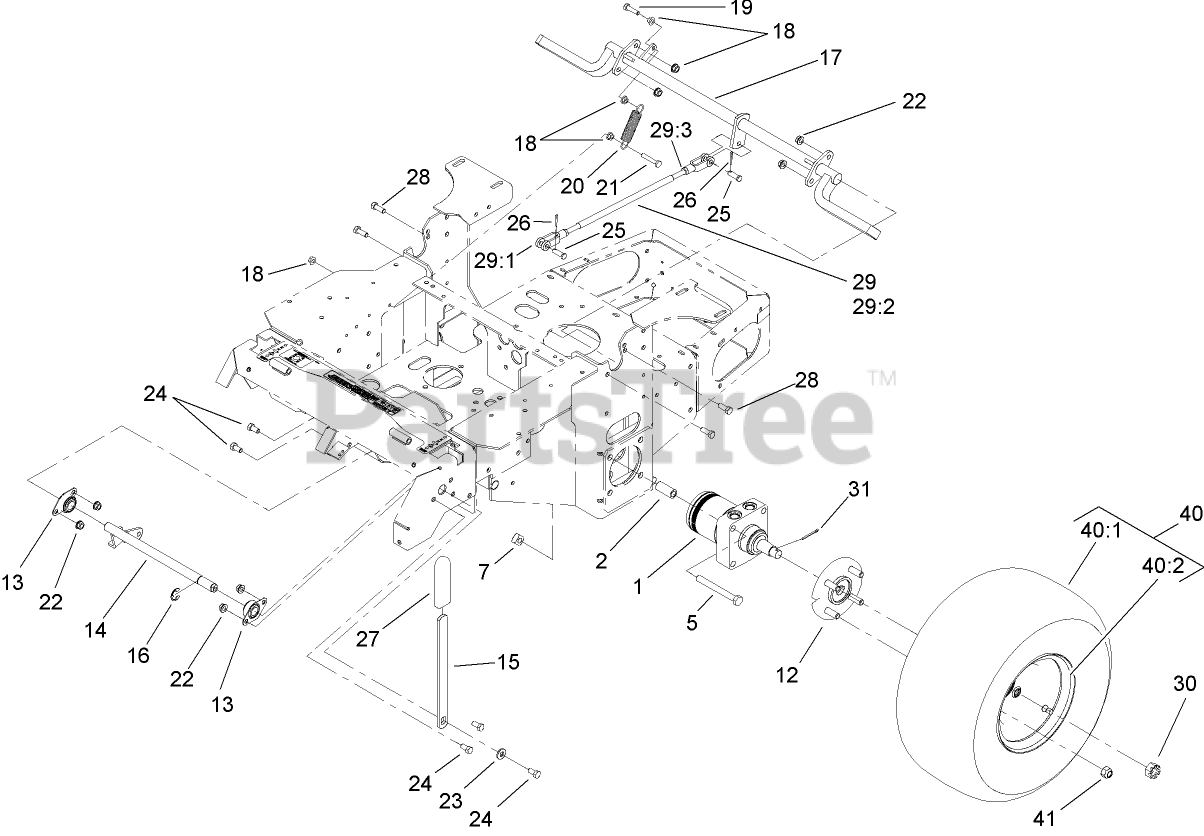

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title
1

Toro 103-4695

MOTOR-WHEEL

$1105.99

$

Usually ships in 3-6 days

0

1:1

Toro 1-000119

SEAL KIT

Note: Not illustrated

$201.99

$

In Stock, only 2 left!

0

1:2

Toro 1-000138

BEARING AND SEAL KIT

Note: Not illustrated

$310.99

$

Usually ships in 3-6 days

0

2

Toro 103-8503

SPACER-MOTOR, WHEEL

$6.99

$

Usually ships in 3-6 days

0

5

Toro 325-18

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

7

Toro 109-5618

NUT-SQUARE, SPECIAL

$6.49

$

In Stock, Qty 17

0

12

Toro 110-5812

WHEEL HUB ASM

$197.99

$

Usually ships in 3-6 days

0

13

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

14

Toro 103-3116

Shaft-Brake, Parking

$99.99

$

Usually ships in 3-6 days

0

15

Toro 107-9255-03

HANDLE-BRAKE, PARKING

$

$

Not available

16

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

17

$

$

Not available

18

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20

Toro 1-323161

SPRING-IDLER

$11.99

$

In Stock, only 3 left!

0

21

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

24

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

25

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 15

0

26

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

27

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

28

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

29

Toro 103-4335

BRAKE ROD ASM

$47.99

$

Usually ships in 3-6 days

0

29:1

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 5

0

29:2

Toro 103-3907

LINKAGE-HANDLE, BRAKE

$43.99

$

Usually ships in 3-6 days

0

29:3

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

30

Toro 32136-5

NUT-HEX, SLOTTED

$7.99

$

Usually ships in 3-6 days

0

31

Toro 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 18

0

40

Toro 1-543396

WHEEL AND TIRE ASM
(Superseded to 144-3664)

$190.99

$

Usually ships in 3-6 days

0

40:1

Toro 1-543680

TIRE
(Superseded to 99-4506)

$118.99

$

Usually ships in 3-6 days

0

40:2

$

$

Not available

41

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days
