74418 TE (Z 400) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270002001 - 270999999) (2007) MAIN FRAME ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

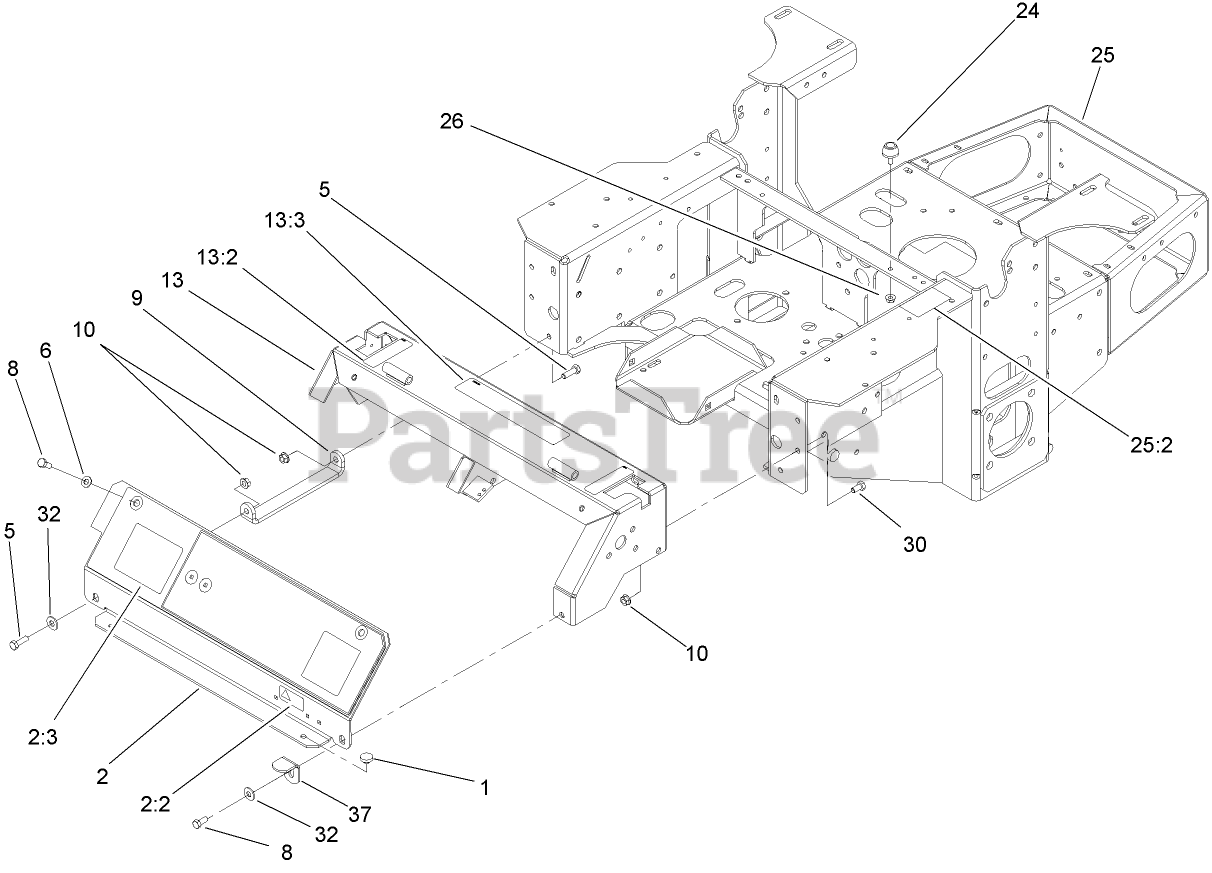

MAIN FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

2

$

$

Not available

2:2

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

2:3

Toro 108-1054

DECAL-PANEL, COVER

$

$

Not available

5

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 103-7935-03

BRACKET-PANEL, INSTRUMENT

$

$

Not available

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 112-9021

CONSOLE ASM

$465.99

$

Usually ships in 3-6 days

0

13:2

Toro 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

13:3

Toro 99-8944

DECAL-BATTERY

$

$

Not available

24

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 9

0

25

Toro 112-9023

MAIN FRAME ASM

$2120.99

$

Usually ships in 3-6 days

0

25:2

Toro 105-6183

Decal-Release, Drive

$

$

Not available

26

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

30

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

32

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 99-8947

STOP-COVER

$

$

Currently unavailable
