74418 TE (Z 400) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270002000) (2007) FRONT FRAME ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

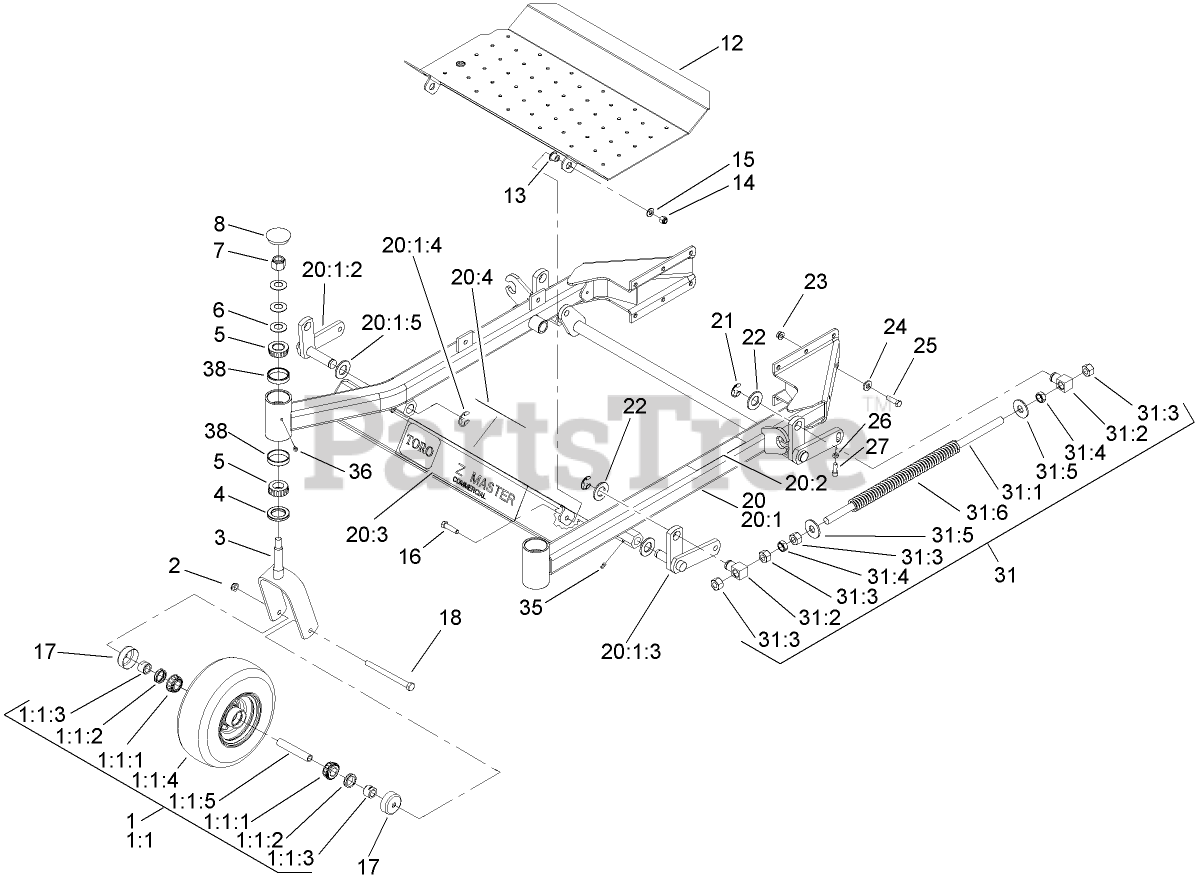

FRONT FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 103-3800

WHEEL AND TIRE ASM

$240.99

$

In Stock, only 4 left!

0

1:1

WHEEL AND BEARING ASM

Note: Not serviced separately

$

$

Not available

1:1:1

Toro 1-633585

BEARING-CONE, TAPER

$21.99

$

In Stock, Qty 12

0

1:1:2

Toro 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

1:1:3

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, only 2 left!

0

1:1:4

Toro 103-3151

WHEEL AND TIRE ASM

$269.99

$

Usually ships in 3-6 days

0

1:1:5

Toro 103-3157

AXLE-CASTER
(Superseded to 126-5359)

$18.99

$

In Stock, only 2 left!

0

2

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

3

Toro 108-7724-01

CASTER FORK ASM

$194.99

$

Usually ships in 3-6 days

0

4

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

5

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 18

0

6

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

7

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 14

0

8

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

12

Toro 108-5007-03

FLOOR PAN

$

$

Not available

13

Toro 86-2180

BUSHING-FLANGE

$0.99

$

Usually ships in 3-6 days

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 103-2768

GUARD-SEAL

$3.49

$

In Stock, Qty 20+

0

18

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

20

Toro 112-9020

FRONT FRAME ASM

$1929.99

$

Usually ships in 3-6 days

0

20:1

FRAME-FRONT

Note: Not serviced separately

$

$

Not available

20:1:2

Toro 99-3872

RH LIFT ARM ASM
(Superseded to 99-3872-01)

$123.99

$

Usually ships in 3-6 days

0

20:1:3

Toro 99-3871

LH LIFT ARM ASM
(Superseded to 99-3871-01)

$121.99

$

Usually ships in 3-6 days

0

20:1:4

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 9

0

20:1:5

Toro 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

20:2

Toro 107-2132

DECAL-WARNING

$28.99

$

Usually ships in 3-6 days

0

20:2

Toro 1-633818

DECAL-WARNING

$6.49

$

Usually ships in 3-6 days

0

20:3

Toro 106-7451

DECAL

$27.99

$

In Stock, only 1 left!

0

20:4

Toro 107-2112

DECAL-WARNING

$18.99

$

In Stock, only 2 left!

0

20:4

Toro 107-1866

DECAL-DANGER, SLOPE

$43.99

$

Usually ships in 3-6 days

0

21

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 9

0

22

Toro 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

23

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

25

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

27

Toro 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

31

Toro 1-634439

FRONT FRAME SPRING ASM

$69.99

$

In Stock, Qty 13

0

31:1

Toro 1-633096

ROD-LIFT, DECK

$22.99

$

In Stock, only 3 left!

0

31:2

Toro 1-633441

SWIVEL-DECK MOUNT, REAR

$26.99

$

Usually ships in 3-6 days

0

31:3

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 15

0

31:4

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0

31:5

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

31:6

Toro 1-633064

SPRING-SUPPORT, DECK

$31.99

$

In Stock, only 1 left!

0

35

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

36

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

38

Toro 254-72

BEARING-CUP, TAPERED

$9.99

$

In Stock, Qty 11

0
