74417 (Z 453) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250005000) (2005) SEAT ASSEMBLY NO. 107-1867 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

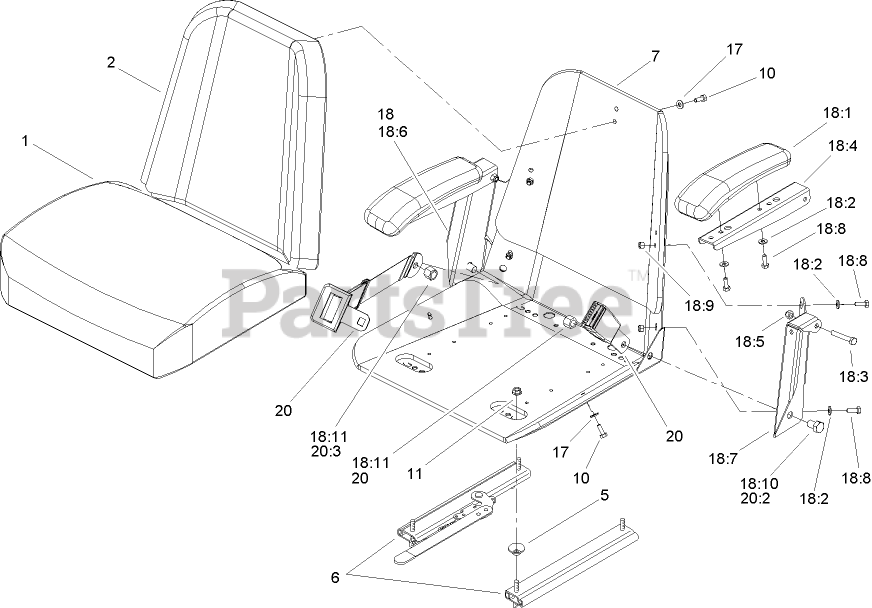

SEAT ASSEMBLY NO. 107-1867 Parts Diagram

  • Title

1

Toro 103-0290

CUSHION-SEAT, BOTTOM
(Superseded to 103-3521)

$259.99

$

In Stock, Qty 5

0

2

Toro 104-7754

CUSHION-SEAT, BACK

$514.99

$

In Stock, only 2 left!

0

5

Toro 1-543401

SPACER-TRACK

$5.49

$

In Stock, Qty 8

0

6

Toro 1-643255

TRACK-SEAT

$205.99

$

In Stock, only 2 left!

0

7

Toro 1-633859

FRAME-SEAT

$191.99

$

In Stock, only 3 left!

0

10

Toro 321-30

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 105-3620

ARMREST KIT

$429.99

$

Usually ships in 3-6 days

0

18:1

Toro 1-633710

CUSHION-ARMREST
(Superseded to 110-4163)

$94.99

$

Usually ships in 3-6 days

0

18:2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18:3

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

18:4

Toro 105-3623

CHANNEL-ARMREST

$70.99

$

Usually ships in 3-6 days

0

18:5

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

18:6

Toro 105-3621

Bracket-Armrest, RH

$111.99

$

Usually ships in 3-6 days

0

18:7

Toro 105-3622

Bracket-Armrest, LH

$111.99

$

Usually ships in 3-6 days

0

18:8

Toro 321-30

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

18:9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

18:10

Toro 325-2

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

18:11

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 103-4469

SEATBELT KIT

$167.99

$

Usually ships in 3-6 days

0

20:2

Toro 3212-4

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

20:3

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0
