74417 (Z 453) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250005000) (2005) LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FH680V-AS21 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

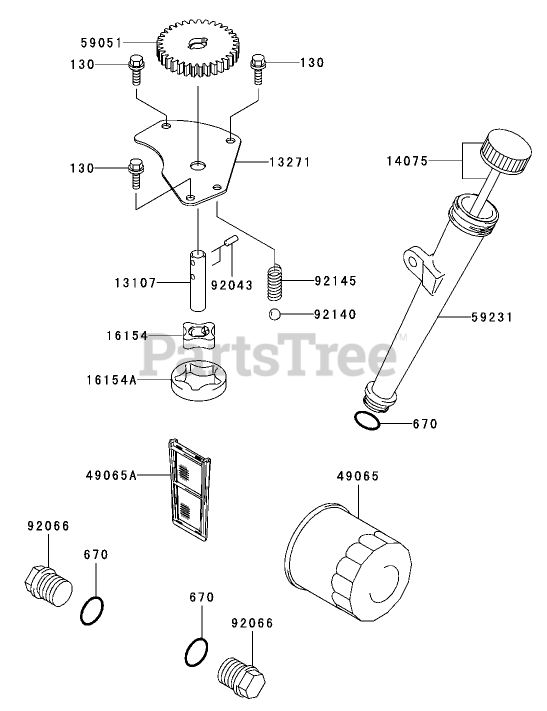

LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FH680V-AS21 Parts Diagram

  • Title

13107

Kawasaki 13107-7009

Shaft
(Superseded to 13107-0749)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, only 2 left!

0

13271

Kawasaki 13271-7005

Plate

Note: Obtain Parts From Kawasaki

$3.99

$

Usually ships in 2-5 days

0

14075

Kawasaki 14075-7008

Cap ASM
(Superseded to 14075-7002)

Note: Obtain Parts From Kawasaki

$11.99

$

In Stock, only 1 left!

0

16154

Kawasaki 16154-2053

ROTOR-PUMP (IN)

Note: Obtain Parts From Kawasaki

$12.99

$

In Stock, Qty 5

0

16154A

Kawasaki 16154-2054

ROTOR-PUMP (OUT)

Note: Obtain Parts From Kawasaki

$9.49

$

In Stock, Qty 5

0

49065

Toro 49065-2078

Filter-Oil
(Superseded to 49065-2071)

Note: Obtain Parts From Kawasaki

$

$

Not available

49065A

Kawasaki 49065-7003

Filter-Oil

Note: Obtain Parts From Kawasaki

$3.99

$

In Stock, Qty 15

0

59051

Kawasaki 59051-7011

Gear-Spur

Note: Obtain Parts From Kawasaki

$65.99

$

In Stock, only 1 left!

0

59231

Kawasaki 59231-7002

Filler
(Superseded to 59231-7006)

Note: Obtain Parts From Kawasaki

$7.49

$

In Stock, Qty 13

0

92043

Toro 92043-7006

Pin

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

92066

Kawasaki 92066-7003

Plug
(Superseded to 920660774)

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, Qty 8

0

92140

Kawasaki 92140-7003

Ball

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 11

0

92145

Kawasaki 92145-7002

Spring

Note: Obtain Parts From Kawasaki

$

$

Not available

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 15

0

670

Kawasaki 670D2016

O-RING (16mm)
(Superseded to M88478)

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, Qty 20+

0
