74416 (Z 453) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270002000) (2007) SPINDLE ASSEMBLY NO. 107-8504 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

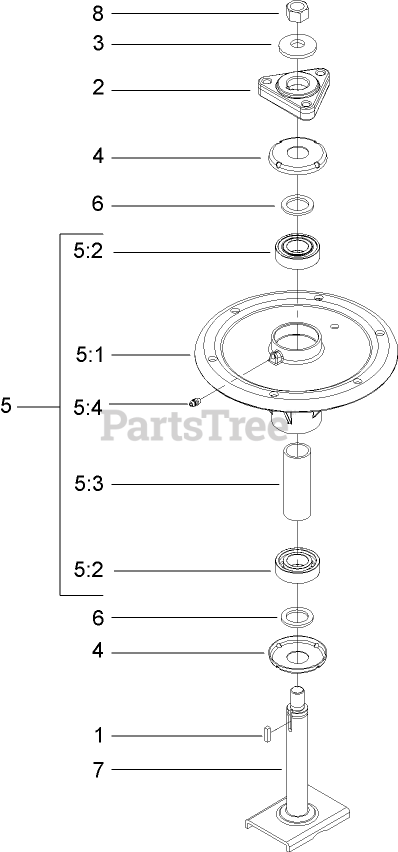

SPINDLE ASSEMBLY NO. 107-8504 Parts Diagram

  • Title
1

Toro 10-8040

KEY-SQUARE

$2.99

$

In Stock, Qty 17

0

2

Toro 106-3277

Hub-Pulley

$27.99

$

In Stock, only 2 left!

0

3

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 18

0

4

Toro 106-3204

Shield-Bearing

$7.99

$

In Stock, Qty 20+

0

5

SPINDLE BEARING ASM

Note: Not serviced separately

$

$

Not available

5:1

Toro 106-3211

Housing-Spindle

$263.99

$

In Stock, only 1 left!

0

5:2

Toro 113514

BEARING-BALL

$21.99

$

In Stock, only 3 left!

0

5:3

Toro 107-8502

SPACER-BEARING

$18.99

$

In Stock, only 1 left!

0

5:4

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

6

Toro 3-8514

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

7

Toro 107-8501

SPINDLE ASM

$118.99

$

In Stock, only 1 left!

0

8

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0
