74416 (Z 453) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270002000) (2007) ROLL-OVER PROTECTION SYSTEM ASSEMBLY NO. 107-8093 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

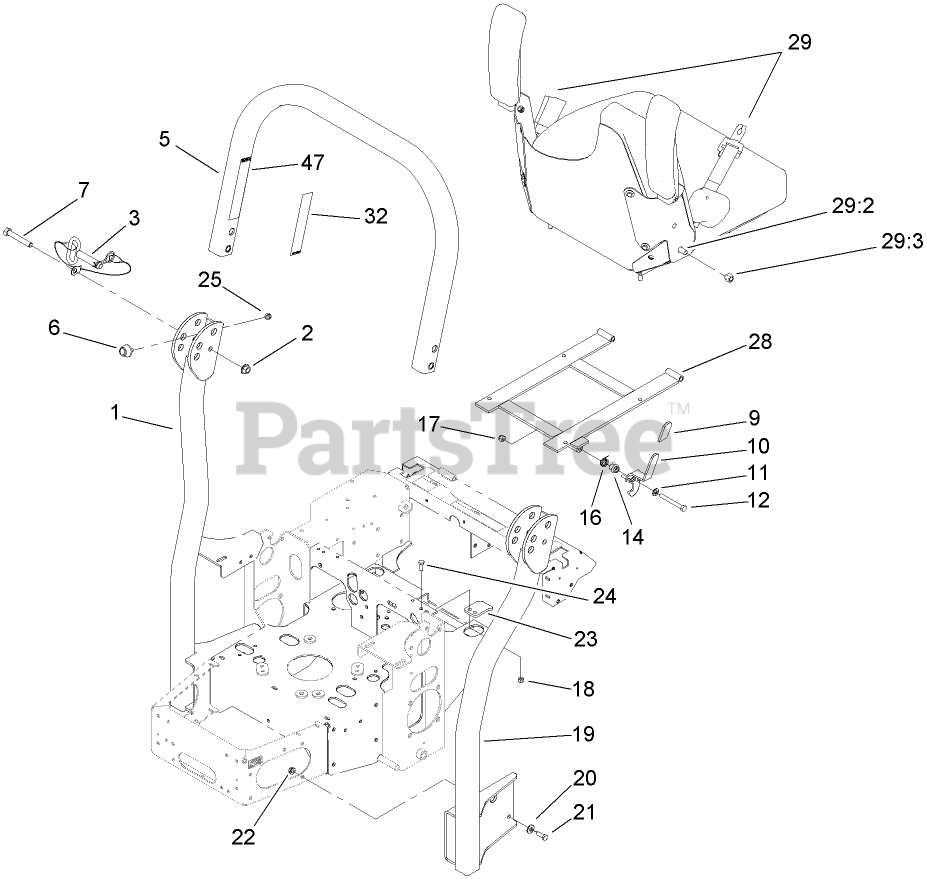

ROLL-OVER PROTECTION SYSTEM ASSEMBLY NO. 107-8093 Parts Diagram

  • Title
1

LH TUBE SUPPORT ASM

Note: Not serviced separately

$

$

Not available

2

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

3

Toro 103-4553

PIN-FOLD, ROPS

$79.99

$

In Stock, only 2 left!

0

5

Upper Tube ASM

Note: Not serviced separately

$

$

Not available

6

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 9

0

7

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

9

Toro 103-4434

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

10

Toro 107-3083

LATCH ASM

$30.99

$

Usually ships in 3-6 days

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

0

14

Toro 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

16

Toro 107-0076

SPRING-TORSION

$13.99

$

Usually ships in 3-6 days

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

RH TUBE SUPPORT ASM

Note: Not serviced separately

$

$

Not available

20

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

21

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 107-3059

CATCH-LATCH, SEAT

$

$

Not available

24

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 9

0

28

Toro 107-3052-03

SEAT SUPPORT FRAME ASM

$347.99

$

Usually ships in 3-6 days

0

29

Toro 110-0883

RETRACTABLE SEATBELT KIT

$274.99

$

Usually ships in 3-6 days

0

29:2

Toro 3212-4

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

29:3

Toro 3296-7

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0

32

Toro 107-3069

DECAL-WARNING

$22.99

$

Usually ships in 3-6 days

0

47

Toro 107-2102

DECAL-WARNING, FOLDING ROPS

$9.99

$

In Stock, only 1 left!

0
