74416 TE (Z 453) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) DECK ASSEMBLY NO 107-1671 Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

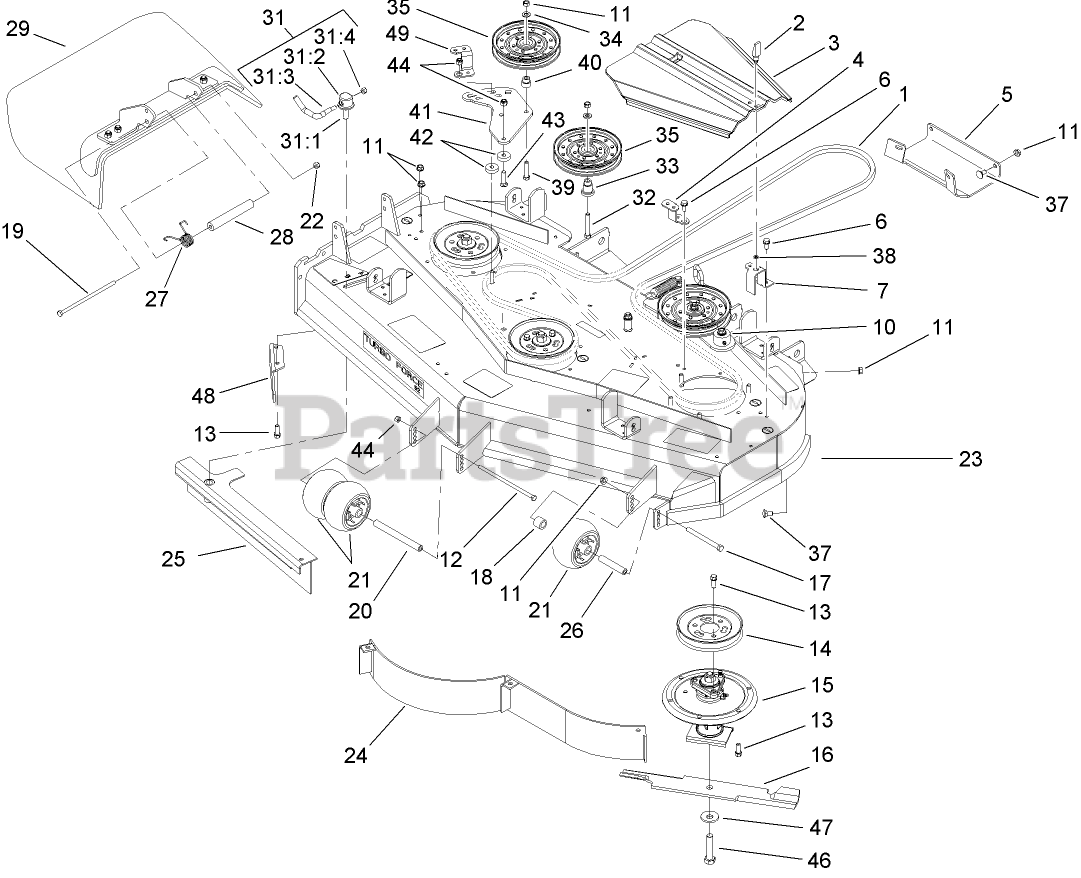

DECK ASSEMBLY NO 107-1671 Parts Diagram

  • Title

1

Toro 106-7369

BELT-V

$125.99

$

In Stock, only 1 left!

0

2

Toro 74-5950

LATCH-SWELL

$22.99

$

In Stock, Qty 10

0

3

Toro 107-8536

COVER-BELT

$21.99

$

In Stock, only 2 left!

0

4

Toro 108-2177-01

BRACKET-COVER, TALL

$31.99

$

In Stock, only 1 left!

0

5

Toro 106-7358-01

Plate-Skid

$95.99

$

Usually ships in 3-6 days

0

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 108-4121-01

BRACKET-COVER
(Superseded to 119-4220-01)

$12.99

$

In Stock, Qty 6

0

10

SPRING IDLER ASM

Note: Not serviced separately

$

$

Not available

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-28

SCREW-HH

$7.99

$

In Stock, only 1 left!

0

13

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

14

Toro 107-1683

PULLEY

$21.99

$

In Stock, only 4 left!

0

15

Toro 107-8504

SPINDLE ASM

$410.99

$

In Stock, only 3 left!

0

16

Toro 105-7781-03

BLADE-18IN, HI FLOW

$28.99

$

In Stock, Qty 13

0

17

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

18

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

19

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

20

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

21

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

23

Toro 107-1668

DECK DECAL ASM

$

$

Not available

24

Toro 105-7754-01

BAFFLE

$163.99

$

Usually ships in 3-6 days

0

25

Toro 105-7755-01

BAFFLE

$216.99

$

Usually ships in 3-6 days

0

26

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

27

Toro 108-4052

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

28

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

29

Toro 108-2792

RUBBER DEFLECTOR ASM

$221.99

$

In Stock, only 1 left!

0

31

Toro 107-1664

LEVER ASM

$72.99

$

Usually ships in 3-6 days

0

31:1

Toro 106-3239

Screw-Lock

$52.99

$

Usually ships in 3-6 days

0

31:2

Toro 107-1644

CAP-LOCK

$18.99

$

In Stock, only 2 left!

0

31:3

Toro 106-3241

Lever-Lock
(Superseded to 107-1664)

$72.99

$

Usually ships in 3-6 days

0

31:4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

32

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

33

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 4 left!

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 16

0

37

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

38

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

39

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Toro 1-603496

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

41

Toro 107-8516-01

PLATE-IDLER

$57.99

$

Usually ships in 3-6 days

0

42

Toro 105-7788

Spacer

$9.99

$

In Stock, only 2 left!

0

43

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

44

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

46

Toro 103-0862

Screw-Cap

$5.99

$

In Stock, Qty 19

0

47

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 19

0

48

Toro 106-3216-01

BAFFLE-DISCHARGE

$23.99

$

Usually ships in 3-6 days

0

49

Toro 108-2178-01

BRACKET-COVER, SHORT

$29.99

$

Usually ships in 3-6 days

0

99

Toro 105-7779-03

BLADE-RECYCLER

Note: Optional Equipment

$30.99

$

In Stock, Qty 8

0

99

Toro 105-7794-03

BLADE-MED FLOW

Note: Not illustrated

$29.99

$

In Stock, Qty 9

0

99

Toro 105-7795-03

BLADE-LOW FLOW

Note: Optional Equipment

$29.99

$

In Stock, only 2 left!

0

99

Toro 105-7796-03

BLADE-ATOMIC

Note: Not illustrated

$29.99

$

Usually ships in 3-6 days

0
