74415 (Z 449) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

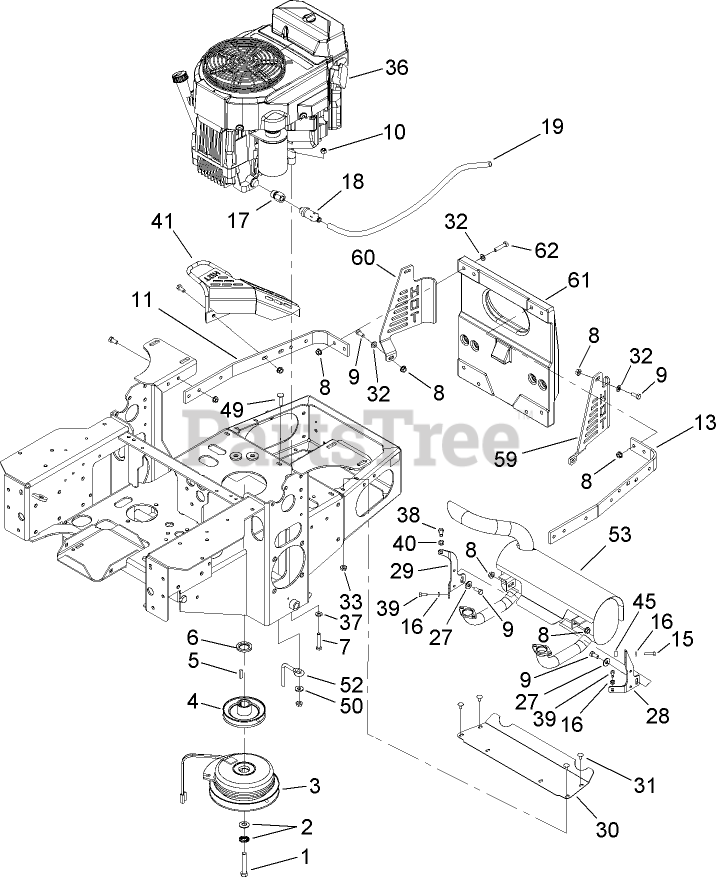

ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

  • Title
1

Toro 3212-12

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

2

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

3

Toro 103-0690

CLUTCH
(Superseded to 109-9276)

$591.99

$

In Stock, only 1 left!

0

4

Toro 103-3913

PULLEY

$66.99

$

In Stock, only 4 left!

0

$2.99

$

In Stock, only 1 left!

0

6

Toro 103-2308

Spacer-Crankshaft

$9.49

$

In Stock, Qty 5

0

7

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

11

Toro 103-3078-03

STRAP-GUARD, RH

$

$

Not available

13

Toro 103-3164-03

STRAP-GUARD, LH

$

$

Not available

15

Toro 33113-025

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

16

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

17

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

18

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

19

Toro 106-7022

TUBE-DRAIN, OIL

$9.49

$

In Stock, only 1 left!

0

27

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 103-4477-03

BRACKET-MUFFLER, LH

$

$

Not available

29

Toro 103-4478-03

BRACKET-MUFFLER, RH

$

$

Not available

30

Toro 103-2740-03

Deflector-Short

$27.99

$

Usually ships in 3-6 days

0

31

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

32

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

33

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

36

ENGINE-KAWASAKI, FH580V-AS50-R

Note: Not serviced separately

$

$

Not available

37

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

38

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

39

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

40

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

41

Toro 103-3218-03

GUARD-TAILPIPE

$

$

Not available

45

Toro 103-3096

Spacer

$

$

Not available

49

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

50

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

52

Toro 108-1058

ROD-BELT
(Superseded to 109-7394)

$83.99

$

In Stock, only 2 left!

0

53

Toro 103-4483

MUFFLER KIT

$522.99

$

Usually ships in 3-6 days

0

59

Toro 103-3287-03

GUARD-MUFFLER, LH

$68.99

$

In Stock, only 1 left!

0

60

Toro 103-3288-03

GUARD-MUFFLER, RH

$

$

Not available

61

Toro 107-8421-03

WEIGHT-NOTCHED, 60 LB

$

$

Not available

62

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
