74414 (Z 450) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) STARTER ASSEMBLY KOHLER CV20S-65601 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

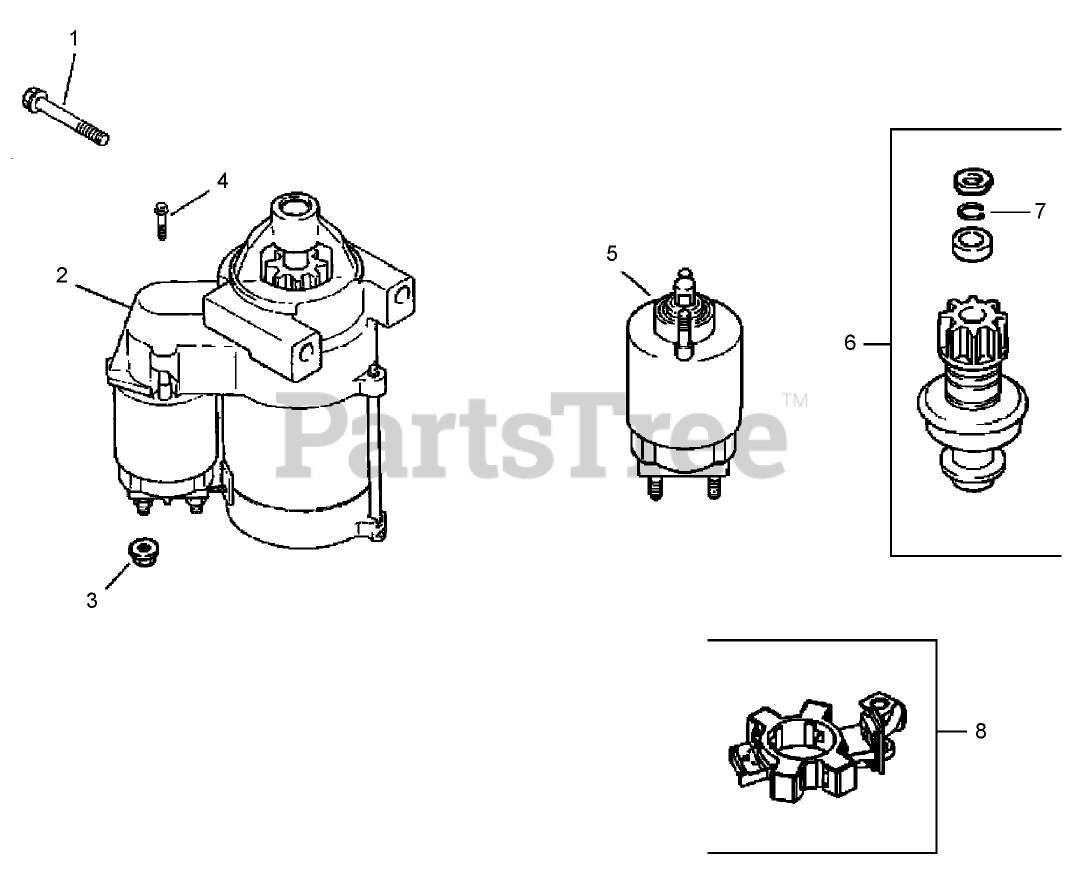

STARTER ASSEMBLY KOHLER CV20S-65601 Parts Diagram

  • Title
1

Kohler M-839080-S

SCREW-FLG (M8X1.25X80)
(Superseded to M-851080-S)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

2

Kohler 25 098 09-S

Starter, solenoid shift (Incl. 3-8)
(Superseded to 25 098 20-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

3

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 086 113-S

SCREW-TORX HEAD, EXTERNAL

Note: Obtain parts from www.kohlerplus.com

$15.99

$

Usually ships in 2-5 days

0

5

Kohler 25 435 05-S

Kit, solenoid (Incl. 4)
(Superseded to 25 435 06-S)

Note: Obtain parts from www.kohlerplus.com

$212.99

$

In Stock, only 2 left!

0

6

Kohler 25 755 33-S

Kit, drive (Incl. 7)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler 25 141 05-S

RING-RETAINING

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

8

Kohler 25 221 01-S

BRUSH HOLDER KIT

Note: Obtain parts from www.kohlerplus.com

$70.99

$

Usually ships in 2-5 days

0
