74414 (Z 450) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) OIL PAN / LUBRICATION ASSEMBLY KOHLER CV20S-65601 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

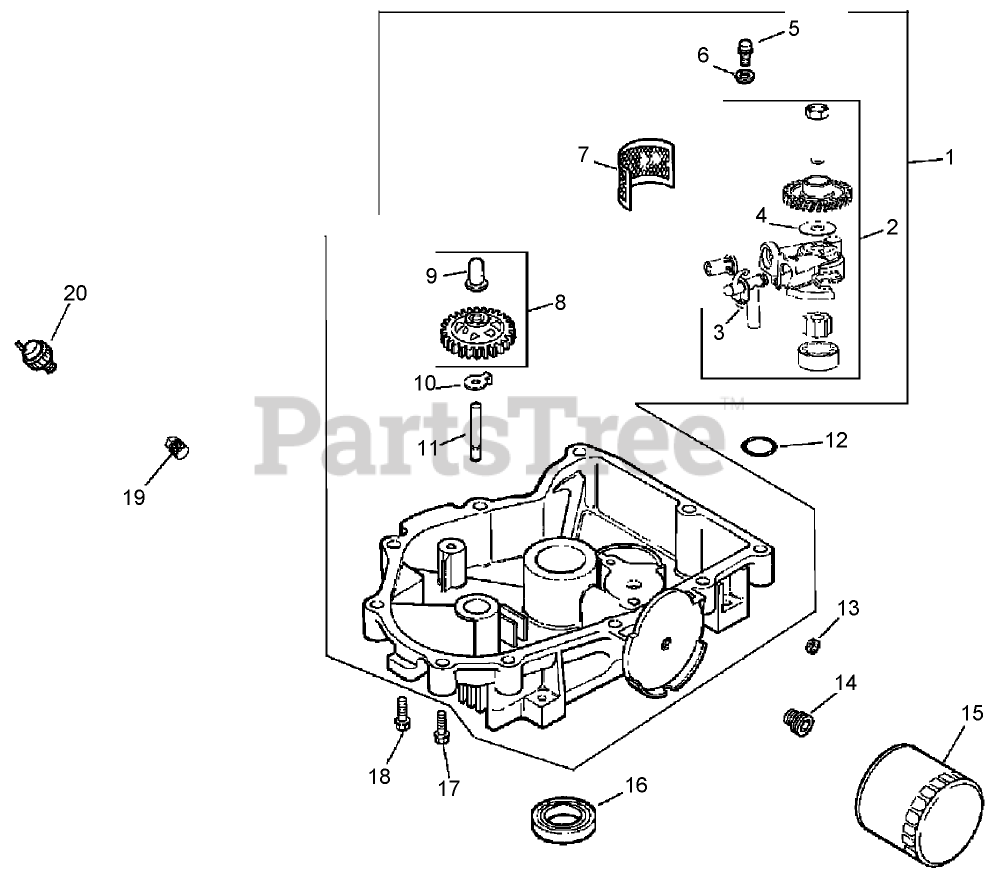

OIL PAN / LUBRICATION ASSEMBLY KOHLER CV20S-65601 Parts Diagram

  • Title

1

Kohler 24 199 07-S

Pan assembly, oil (Incl. Ref. # 2-11)
(Superseded to 24 199 35-S)

Note: Obtain parts from www.kohlerplus.com

$337.99

$

In Stock, only 1 left!

0

2

Kohler 24 393 37-S

Pump assembly, oil (Incl. Ref. # 3,4)
(Superseded to 24 393 53-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

3

Kohler 24 381 11-S

Tube-pickup, oil

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Kohler 24 153 01-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 8

0

5

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

6

Kohler M-631005-S

WASHER-FLAT (6 MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

7

Kohler 24 162 26-S

Screen-oil

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 1 left!

0

8

Kohler 24 043 12-S

Kit, governor gear w/pin (Incl. Ref. # 9)

Note: Obtain parts from www.kohlerplus.com

$68.99

$

In Stock, Qty 11

0

9

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 8

0

10

Kohler 24 448 02-S

TAB-LOCKING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

11

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

12

Kohler 24 153 08-S

O-Ring

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, only 2 left!

0

13

Kohler 25 139 62-S

Plug-pipe, HH (3/8)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

14

Kohler 24 136 01-S

Nipple-Filter, Oil
(Superseded to 24 136 09-S)

Note: Obtain parts from www.kohlerplus.com

$5.99

$

Usually ships in 2-5 days

0

15

Kohler 12 050 01-S

FILTER-OIL

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 20+

0

16

Kohler 52 032 08-S

SEAL-OIL (P-T-O END)
(Superseded to 25 032 06-S)

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 20+

0

17

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

18

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

19

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

20

Kohler 24 099 03-S

SWITCH-PRESSURE, OIL
(Superseded to 24 755 425-S)

Note: Obtain parts from www.kohlerplus.com

$29.99

$

In Stock, only 1 left!

0
