74414 (Z 450) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) HEAD / VALVE / BREATHER ASSEMBLY KOHLER CV20S-65601 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

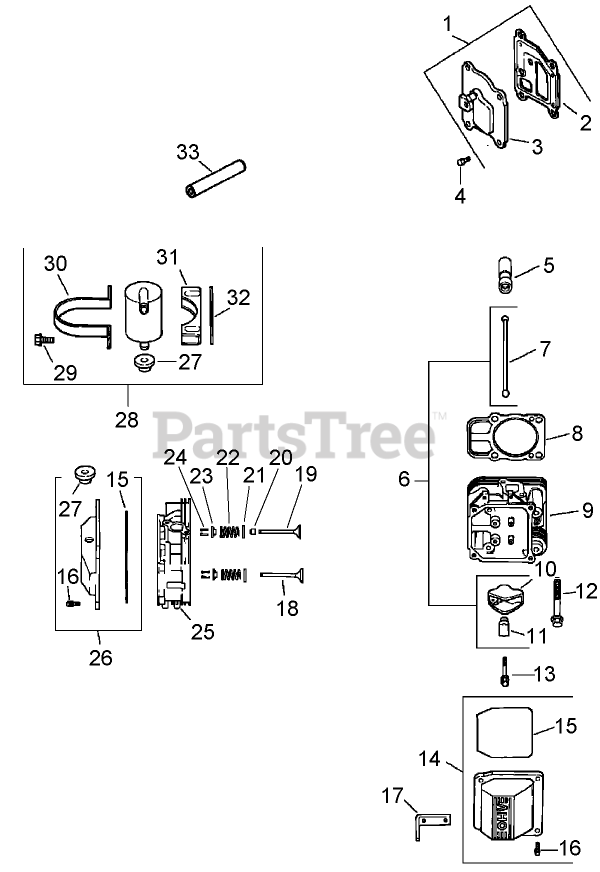

HEAD / VALVE / BREATHER ASSEMBLY KOHLER CV20S-65601 Parts Diagram

  • Title

1

Kohler 24 033 03-S

Kit, breather cover w/gasket (Incl. Ref. # 2,3)

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, only 1 left!

0

2

Kohler 24 041 51-S

GASKET-BREATHER
(Superseded to 24 041 67-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 9

0

3

Kohler 24 096 87-S

Cover-Breather
(Superseded to 24 033 03-S)

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, only 1 left!

0

4

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

5

Kohler 25 351 01-S

Lifter-Valve
(Superseded to 25 351 11-S)

Note: Obtain parts from www.kohlerplus.com

$23.99

$

In Stock, only 4 left!

0

6

Kohler 24 755 66-S

Kit, valve train (Incl. Ref. # 7,10,11)

Note: Obtain parts from www.kohlerplus.com

$45.99

$

In Stock, only 3 left!

0

7

Kohler 24 411 05-S

ROD-PUSH

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, Qty 9

0

8

Kohler 24 841 01-S

Cylinder Head Gasket Kit

Note: Obtain parts from www.kohlerplus.com

$45.99

$

Usually ships in 2-5 days

0

9

Kohler 24 318 70-S

CYLINDER HEAD ASM (CYLINDER No.2)
(Superseded to 24 318 195-S)

Note: Obtain parts from www.kohlerplus.com

$240.99

$

Usually ships in 2-5 days

0

10

Kohler 25 186 01-S

ARM-ROCKER

Note: Obtain parts from www.kohlerplus.com

$12.99

$

In Stock, only 2 left!

0

11

Kohler 24 599 01-S

Pivot-Arm, Rocker
(Superseded to 24 599 02-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 8

0

12

Kohler 12 086 16-S

SCREW-FLANGE (M10X1.5X90)
(Superseded to 62 086 08-S)

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 5

0

13

Kohler 66 086 07-S

Screw
(Superseded to M-640034-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 18

0

14

Kohler 24 755 141-S

Kit, valve cover ? plain (Incl. Ref. # 15,16)

Note: Obtain parts from www.kohlerplus.com

$35.99

$

In Stock, only 2 left!

0

15

Kohler 24 153 28-S

O-Ring
(Superseded to 25 153 24-S)

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 20+

0

16

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

17

Kohler 24 445 01-S

STRAP-LIFTING
(Superseded to 25 445 03-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

18

Kohler 24 016 01-S

VALVE-EXHAUST (STD)
(Superseded to 32 016 01-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 4 left!

0

Kohler 24 016 02-S

VALVE-EXHAUST (.25)
(Superseded to 32 016 02-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 3 left!

0

19

Kohler 24 017 01-S

VALVE-INTAKE (STD)

Note: Obtain parts from www.kohlerplus.com

$30.99

$

In Stock, Qty 17

0

Kohler 24 017 02-S

VALVE-INTAKE (.25)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

20

Kohler 66 032 05-S

SEAL-STEM, VALVE
(Superseded to 25 032 14-S)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, only 2 left!

0

21

Kohler 235011-S

RETAINER-SPRING

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 2 left!

0

22

Kohler 24 089 02-S

SPRING-VALVE

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, only 2 left!

0

23

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

Note: Obtain parts from www.kohlerplus.com

$8.49

$

In Stock, Qty 5

0

24

Kohler 12 755 03-S

RETAINER KIT

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, only 2 left!

0

25

Kohler 24 318 67-S

CYLINDER HEAD ASM (CYLINDER No.1)
(Superseded to 24 318 194-S)

Note: Obtain parts from www.kohlerplus.com

$240.99

$

Usually ships in 2-5 days

0

26

24755142-S

Kit, valve cover - breather (Incl. Ref. # 15,16,27)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

27

Kohler 25 313 03-S

GROMMET-RUBBER

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, only 3 left!

0

28

Kohler 24 755 57-S

Kit, breather separator (Incl. Ref. # 27,29-32)
(Superseded to 24 755 241-S)

Note: Obtain parts from www.kohlerplus.com

$90.99

$

In Stock, Qty 7

0

29

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

30

Kohler 24 445 02-S

STRAP-BREATHER
(Superseded to 24 755 241-S)

Note: Obtain parts from www.kohlerplus.com

$90.99

$

In Stock, Qty 7

0

32

Kohler 24 126 44-S

BRACKET-SEPARATOR, BREATHER

Note: Obtain parts from www.kohlerplus.com

$5.49

$

Usually ships in 2-5 days

0

33

Kohler 24 112 12-S

Spacer
(Superseded to 24 755 241-S)

Note: Obtain parts from www.kohlerplus.com

$90.99

$

In Stock, Qty 7

0

34

Kohler 24 326 54-S

Hose-Breather
(Superseded to 24 326 63-S)

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, only 2 left!

0
