74414 (Z 450) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) FUEL SYSTEM ASSEMBLY KOHLER CV20S-65601 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

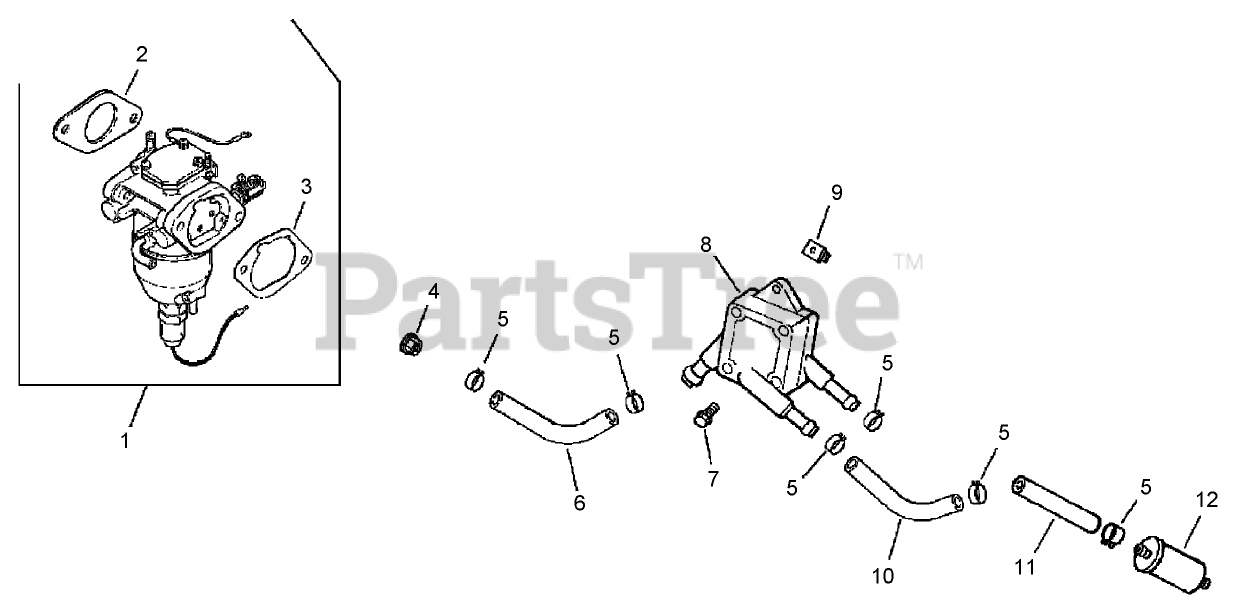

FUEL SYSTEM ASSEMBLY KOHLER CV20S-65601 Parts Diagram

  • Title

1

Kohler 24 853 99-S

Kit, carburetor w/gaskets

Note: Obtain parts from www.kohlerplus.com

$665.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 15-S

Gasket-carburetor

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 1 left!

0

3

Kohler 24 041 14-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 9

0

4

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 11

0

5

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 2 left!

0

6

Kohler 25 353 04-S

Line, fuel 6-1/4

Note: Obtain parts from www.kohlerplus.com

$7.49

$

Usually ships in 2-5 days

0

7

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

8

Kohler 24 393 16-S

PUMP-FUEL

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, only 2 left!

0

9

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 13

0

10

Kohler 24 353 03-S

Line, fuel 10-1/2
(Superseded to 24 353 12-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

11

2835301-S

Line, fuel 13

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler 24 050 02-S

Filter-Fuel
(Superseded to 24 050 13-S)

Note: Obtain parts from www.kohlerplus.com

$12.99

$

In Stock, Qty 20+

0

Kohler 24 234 02-S

Bowl-float

Note: Obtain parts from www.kohlerplus.com

$137.99

$

Usually ships in 2-5 days

0

Kohler 24 234 02-S

Bowl-float

Note: Not illustrated

$137.99

$

Usually ships in 2-5 days

0

Kohler 24 431 01-S

Sleeve-Insulating
(Superseded to 24 431 02-S)

Note: Not illustrated

$6.49

$

In Stock, only 1 left!

0

Kohler 24 431 01-S

Sleeve-Insulating
(Superseded to 24 431 02-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 1 left!

0

Kohler 24 757 18-S

Overhaul w/gaskets Kit

Note: Obtain parts from www.kohlerplus.com

$79.99

$

In Stock, only 2 left!

0

Kohler 24 757 18-S

Overhaul w/gaskets Kit

Note: Not illustrated

$79.99

$

In Stock, only 2 left!

0

Kohler 24 757 19-S

Choke Service Repair Kit

Note: Not illustrated

$153.99

$

In Stock, only 1 left!

0

Kohler 24 757 19-S

Choke Service Repair Kit

Note: Obtain parts from www.kohlerplus.com

$153.99

$

In Stock, only 1 left!

0

Kohler 24 757 20-S

Gasket Service Repair Kit

Note: Obtain parts from www.kohlerplus.com

$62.99

$

In Stock, only 1 left!

0

Kohler 24 757 20-S

Gasket Service Repair Kit

Note: Not illustrated

$62.99

$

In Stock, only 1 left!

0

Kohler 24 757 21-S

accelerator pump w/gaskets Kit

Note: Not illustrated

$120.99

$

In Stock, only 1 left!

0

Kohler 24 757 21-S

accelerator pump w/gaskets Kit

Note: Obtain parts from www.kohlerplus.com

$120.99

$

In Stock, only 1 left!

0

Kohler 24 757 22-S

Solenoid Valve Service w/Gaskets Kit

Note: Obtain parts from www.kohlerplus.com

$217.99

$

In Stock, only 2 left!

0

Kohler 24 757 22-S

Solenoid Valve Service w/Gaskets Kit

Note: Not illustrated

$217.99

$

In Stock, only 2 left!

0
