74414 (Z 450) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) EXHAUST ASSEMBLY KOHLER CV20S-65601 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

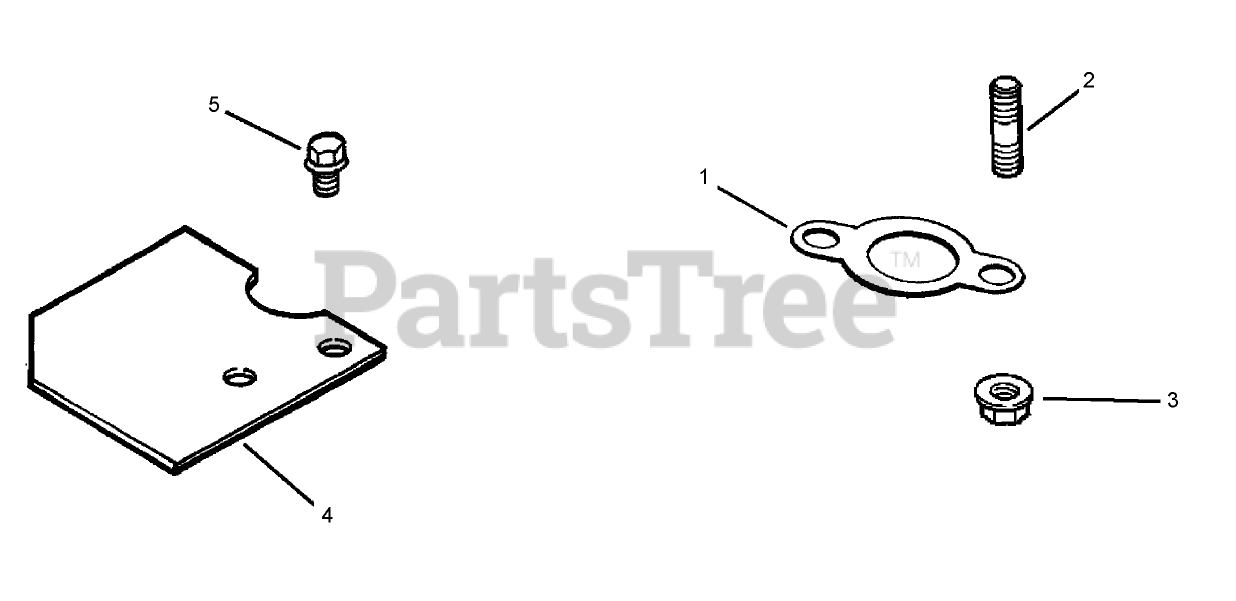

EXHAUST ASSEMBLY KOHLER CV20S-65601 Parts Diagram

  • Title

1

Kohler 24 041 49-S

GASKET-EXHAUST
(Superseded to 25 041 17-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 20+

0

2

Kohler 25 072 04-S

STUD (M8X1.25X33)
(Superseded to 25 072 24-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 14

0

3

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 24 265 09-S

Deflector, heat

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, only 1 left!

0

5

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 13

0

Kohler 24 072 08-S

Stud-Exhaust (M6X1.0X37)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

Kohler 24 072 08-S

Stud-Exhaust (M6X1.0X37)

Note: Not illustrated

$3.99

$

Usually ships in 2-5 days

0

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Not illustrated

$4.49

$

In Stock, Qty 8

0

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

Kohler 24 522 226

Short Block
(Superseded to 24 522 230)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 24 522 226

Short Block
(Superseded to 24 522 230)

Note: Not illustrated

$

$

Not available

Kohler 24 782 24

Miniblock

Note: Not illustrated

$

$

Not available

Kohler 24 782 24

Miniblock

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 24 755 107-S

Gasket Set

Note: Obtain parts from www.kohlerplus.com

$143.99

$

In Stock, only 3 left!

0

Kohler 24 755 107-S

Gasket Set

Note: Not illustrated

$143.99

$

In Stock, only 3 left!

0
