74412 (Z 400) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260002001 - 260999999) (2006) EXHAUST ASSEMBLY KOHLER CV493S 27528 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

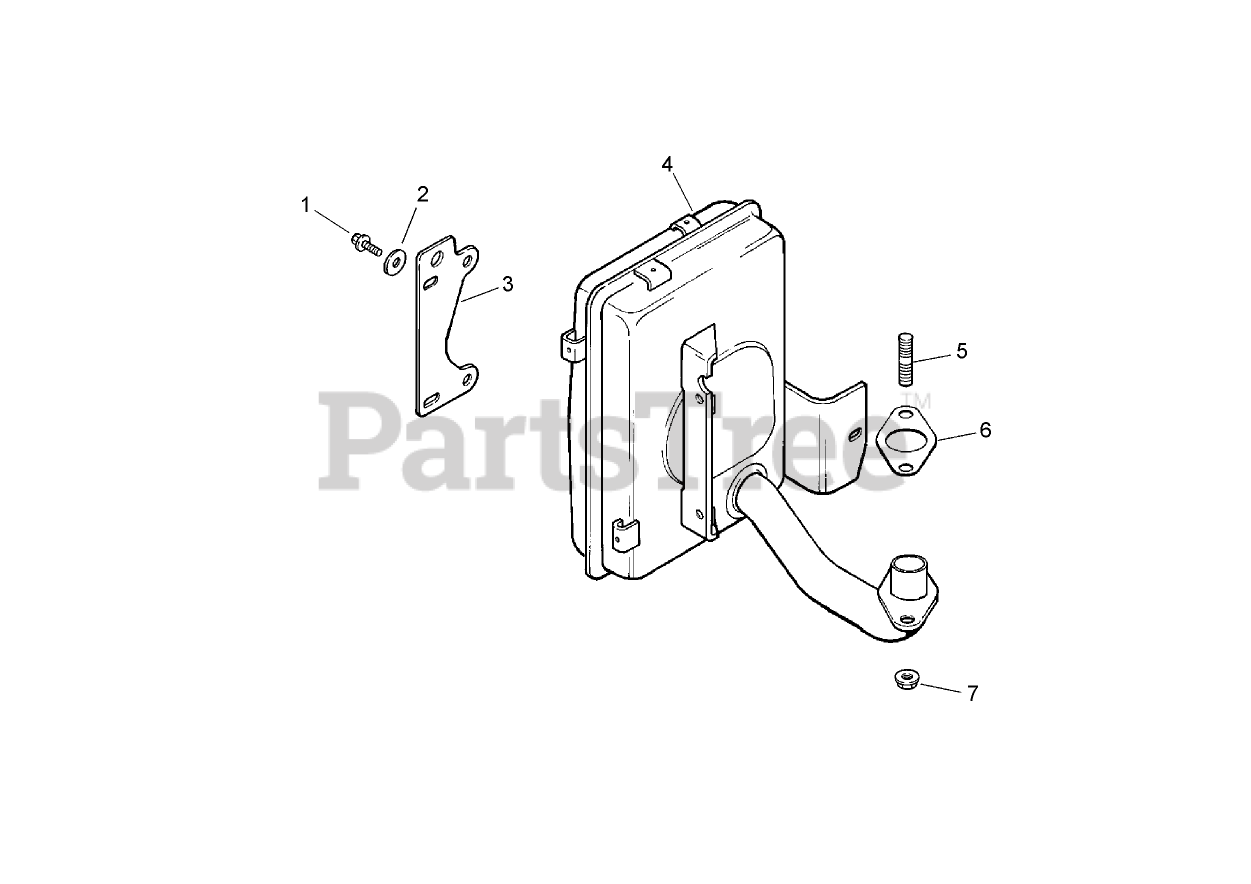

EXHAUST ASSEMBLY KOHLER CV493S 27528 Parts Diagram

  • Title

1

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

2

Kohler 12 112 20-S

Spacer

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, only 1 left!

0

3

Kohler 12 126 71-S

Bracket-Muffler

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Kohler 12 068 54-S

Muffler

Note: Obtain parts from www.kohlerplus.com

$296.99

$

Usually ships in 2-5 days

0

5

Kohler 25 072 04-S

STUD (M8X1.25X33)
(Superseded to 25 072 24-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 1 left!

0

6

Kohler 12 041 03-S

Gasket-Manifold, Exhaust

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, Qty 11

0

7

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Not illustrated

$4.49

$

In Stock, only 3 left!

0

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Not illustrated

$3.99

$

In Stock, Qty 15

0

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 15

0

Kohler 12 265 07-S

Deflector-Exhaust

Note: Obtain parts from www.kohlerplus.com

$10.99

$

Usually ships in 2-5 days

0

Kohler 12 265 07-S

Deflector-Exhaust

Note: Not illustrated

$10.99

$

Usually ships in 2-5 days

0

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Not illustrated

$4.49

$

In Stock, only 3 left!

0

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

Kohler 12 755 93-S

Gasket Set

Note: Obtain parts from www.kohlerplus.com

$89.99

$

Usually ships in 2-5 days

0

Kohler 12 755 93-S

Gasket Set

Note: Not illustrated

$89.99

$

Usually ships in 2-5 days

0
