74412 (Z 400) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000301 - 260002000) (2006) BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CV493S 27528 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

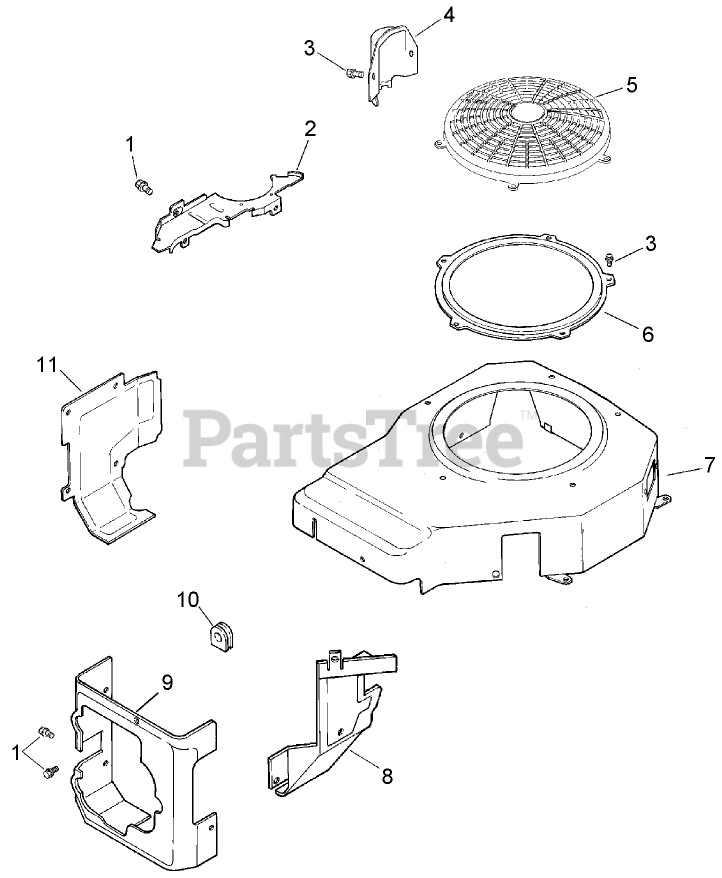

BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CV493S 27528 Parts Diagram

  • Title

1

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

2

Kohler 12 146 07-S

Plate-Housing, Blower

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

3

Kohler M-550010-S

Screw-HF (M5x0.8x10)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 1 left!

0

4

Kohler 12 096 33-S

Cover-Starter

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5

Kohler 12 314 07-S

Guard-Stylized
(Superseded to 12 755 65-S)

Note: Obtain parts from www.kohlerplus.com

$52.99

$

Usually ships in 2-5 days

0

6

Kohler 12 314 10-S

Guard-Screen, Grass

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler 12 027 53-S

Housing-Blower
(Superseded to 12 027 69-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

8

Kohler 12 063 18-S

Baffle (Intake Side)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

9

Kohler 12 063 20-S

Baffle (Cylinder Head)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

10

Kohler 12 313 03-S

Grommet-Spark Plug

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Kohler 12 063 19-S

Baffle-Cylinder

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Not illustrated

$3.99

$

Usually ships in 2-5 days

0

Kohler M-561016-S

SCREW-FLANGE, THREAD FORMING (M5X.80X16)
(Superseded to M-545016-S)

Note: Not illustrated

$2.49

$

In Stock, Qty 15

0

Kohler M-561016-S

SCREW-FLANGE, THREAD FORMING (M5X.80X16)
(Superseded to M-545016-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 15

0

Kohler 24 113 18-S

DECAL-SCREEN, GRASS
(Superseded to 24 113 499-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

Kohler 24 113 18-S

DECAL-SCREEN, GRASS
(Superseded to 24 113 499-S)

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 12 113 125-S

Decal-18hp

Note: Not illustrated

$

$

Not available

Kohler 12 113 125-S

Decal-18hp

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 25 113 39-S

DECAL-LAMINATE, CLEAR
(Superseded to 25 113 79-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

Kohler 25 113 39-S

DECAL-LAMINATE, CLEAR
(Superseded to 25 113 79-S)

Note: Not illustrated

$2.49

$

In Stock, only 4 left!

0
