74412 (Z 400) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250005000) (2005) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

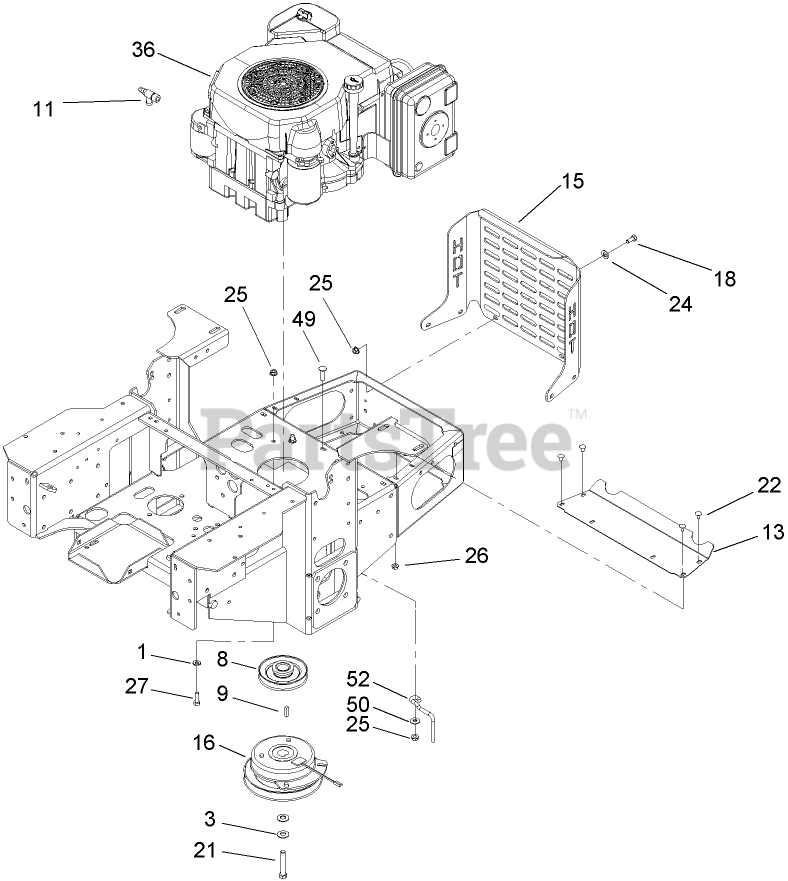

ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

3

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

8

Toro 1-653035

PULLEY

$68.99

$

In Stock, only 2 left!

0

9

Toro 1-807259

KEY

$2.99

$

In Stock, only 1 left!

0

11

Toro 103-1965

Valve-Drain, Oil

$55.99

$

In Stock, only 1 left!

0

13

Toro 103-2740-03

Deflector-Short

$27.99

$

Usually ships in 3-6 days

0

15

Toro 103-4048-03

BUMPER-REAR

$

$

Not available

16

Toro 104-3624

CLUTCH

$387.99

$

In Stock, only 3 left!

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

22

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

27

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

36

ENGINE, KOHLER CV493S

Note: Included in a service kit or in an assembly

$

$

Not available

36

ENGINE, KOHLER CV493S

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

49

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

50

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

52

Toro 108-1058

ROD-BELT
(Superseded to 109-7394)

$83.99

$

In Stock, only 2 left!

0
