74411 (Z 149) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) MOTION CONTROL ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

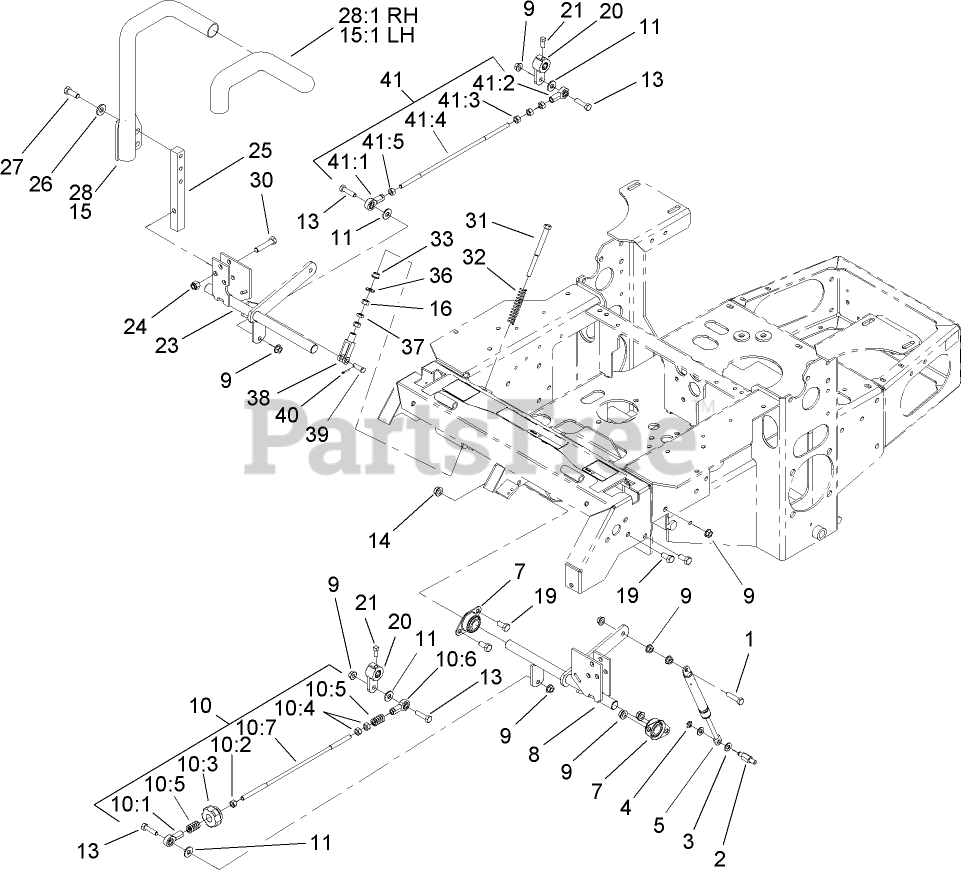

MOTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

2

Toro 103-4101

PIN-DAMPER

$21.99

$

In Stock, only 1 left!

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 6

0

5

Toro 103-4079

DAMPER-CONTROL, MOTION

$76.99

$

In Stock, Qty 7

0

7

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

8

Toro 103-4774

CONTROL-MOTION, LH

$148.99

$

In Stock, only 1 left!

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 103-4326

TRACKING ROD ASM

$84.99

$

Usually ships in 3-6 days

0

10:1

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

10:2

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 13

0

10:3

Toro 103-3060

KNOB-TRACKING

$6.99

$

In Stock, only 2 left!

0

10:4

Toro 1-804524

NUT

$2.99

$

In Stock, only 2 left!

0

10:5

Toro 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

10:6

Toro 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

10:7

Toro 103-3066

Link-Rod, Tracking

$

$

Not available

11

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

14

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

15

Toro 108-7238

LH LEVER ASM

$137.99

$

In Stock, only 1 left!

0

15:1

Toro 106-9987

Grip-Control, Motion

$19.99

$

In Stock, only 4 left!

0

16

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 13

0

19

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

20

Toro 103-3717

ARM-CONTROL

$18.99

$

In Stock, only 3 left!

0

21

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

23

Toro 103-4773

CONTROL-MOTION, RH
(Superseded to 109-3911)

$

$

Not available

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 103-0407

ARM-SHAFT, CONTROL

$30.99

$

In Stock, only 2 left!

0

26

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

27

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Toro 108-7237

RH LEVER ASM

$137.99

$

Usually ships in 3-6 days

0

28:1

Toro 106-9987

Grip-Control, Motion

$19.99

$

In Stock, only 4 left!

0

30

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

32

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

33

Toro 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

36

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

38

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

39

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

40

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

41

Toro 103-4327

TRACKING ASM

$66.99

$

Usually ships in 3-6 days

0

41:1

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

41:2

Toro 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

41:3

Toro 1-804524

NUT

$2.99

$

In Stock, only 2 left!

0

41:4

Toro 103-3066

Link-Rod, Tracking

$

$

Not available

41:5

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 13

0
