74411 (Z 149) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) FUEL SYSTEM ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

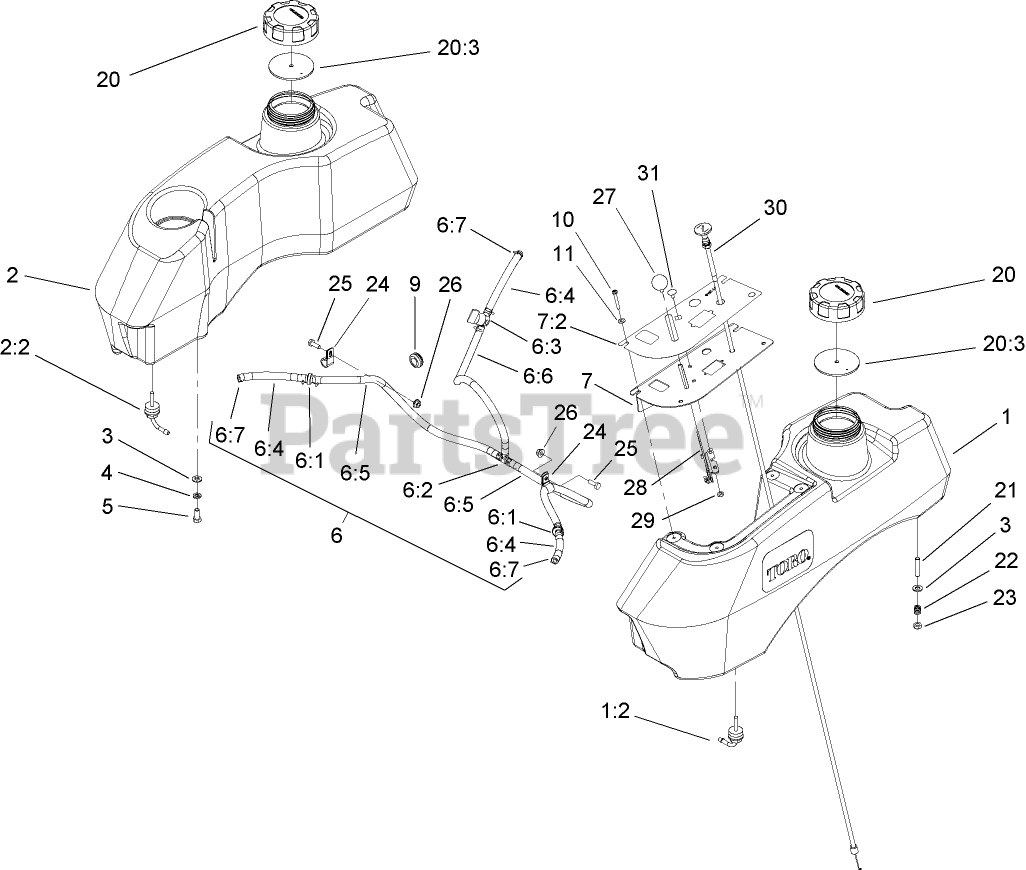

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 107-2146

LH FUEL TANK ASM
(Superseded to 110-4165)

$542.99

$

Usually ships in 3-6 days

0

1:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, only 3 left!

0

2

Toro 106-9975

RH Fuel Tank ASM
(Superseded to 105-3639)

$547.99

$

Usually ships in 3-6 days

0

2:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, only 3 left!

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

FUEL LINE ASM

Note: Not serviced separately

$

$

Not available

6:1

Toro 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, only 2 left!

0

6:2

Toro 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 2 left!

0

6:3

Toro 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 8

0

6:4

Toro 99-7190

HOSE-FUEL
(Superseded to 109-0678)

$5.49

$

Usually ships in 3-6 days

0

6:5

Toro 99-3185

HOSE-FUEL
(Superseded to 110-5701)

$17.99

$

Usually ships in 3-6 days

0

6:6

Toro 106-8720

HOSE-FUEL

$

$

Not available

6:7

Toro 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

7

Toro 107-2149

CONTROL PANEL ASM

$123.99

$

Usually ships in 3-6 days

0

7:2

Toro 107-2148

DECAL-PANEL, CONTROL
(Superseded to 110-0439)

$33.99

$

Usually ships in 3-6 days

0

9

Toro 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

10

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 13

0

11

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

20

Toro 88-3980

GAS CAP ASM

$31.99

$

In Stock, Qty 6

0

20:3

Toro 88-4010

GASKET-CAP, GAS

$29.99

$

In Stock, only 1 left!

0

21

Toro 1-633023

STUD

$6.49

$

Usually ships in 3-6 days

0

22

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

Usually ships in 3-6 days

0

23

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

24

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

25

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

27

Toro 1-513592

KNOB-BALL

$6.49

$

In Stock, Qty 10

0

28

Toro 1-633696

THROTTLE CABLE ASM

$59.99

$

In Stock, only 4 left!

0

29

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 1-603336

CONTROL-CHOKE

$38.99

$

In Stock, only 3 left!

0

31

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0
