74411 TE (Z 149) - Toro 112cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) SPINDLE ASSEMBLY NO. 107-8570 Parts Diagram

112cm Z Master Zero-Turn Mower, Side-Discharge Deck

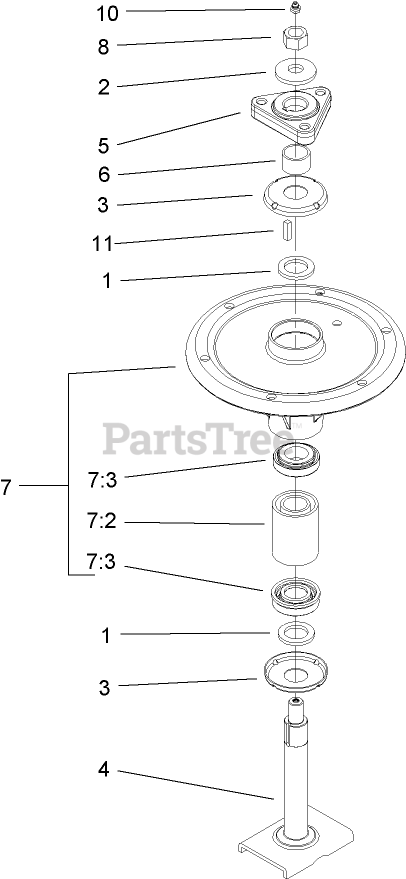

SPINDLE ASSEMBLY NO. 107-8570 Parts Diagram

  • Title
1

Toro 3-8514

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

2

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

3

Toro 106-3204

Shield-Bearing

$7.99

$

In Stock, Qty 20+

0

4

Toro 107-8569

SPINDLE ASM

$177.99

$

Usually ships in 3-6 days

0

5

Toro 106-3277

Hub-Pulley

$27.99

$

In Stock, Qty 8

0

6

Toro 107-8576

SPACER-BEARING

$16.99

$

Usually ships in 3-6 days

0

7

Toro 107-8574

SPINDLE BEARING ASM

$

$

Not available

7:2

Toro 107-8575

SPACER-BEARING

$29.99

$

Usually ships in 3-6 days

0

7:3

Toro 113514

BEARING-BALL

$21.99

$

In Stock, Qty 18

0

8

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

10

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 19

0

11

Toro 10-8040

KEY-SQUARE

$2.99

$

In Stock, Qty 20+

0
