74411 TE (Z 149) - Toro 112cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) DECK CONNECTION ASSEMBLY Parts Diagram

112cm Z Master Zero-Turn Mower, Side-Discharge Deck

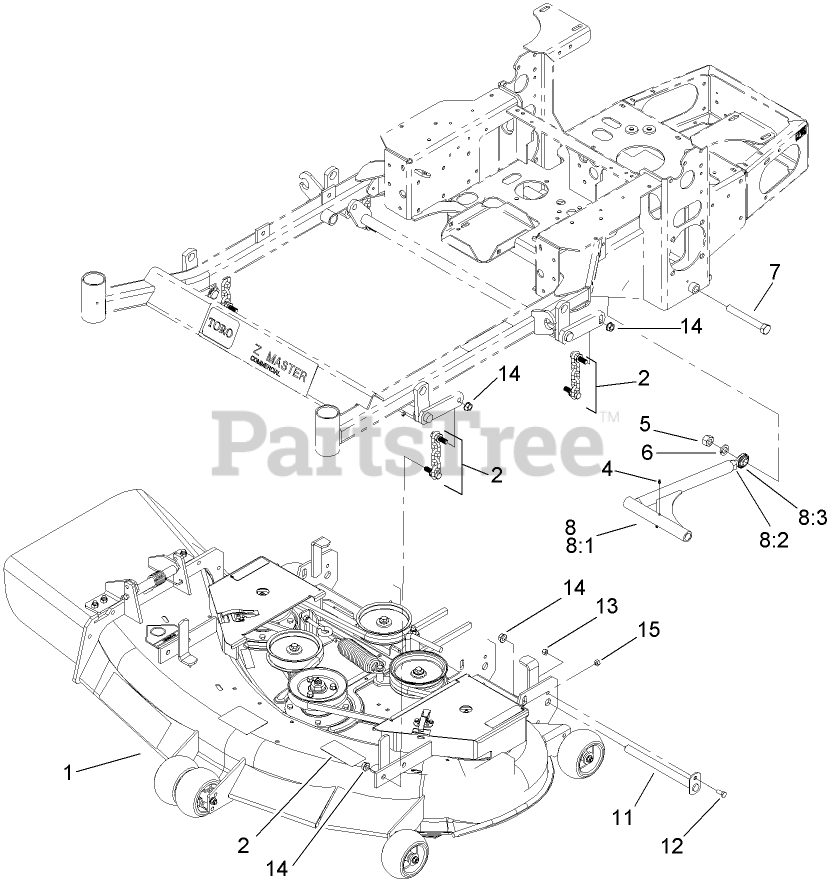

DECK CONNECTION ASSEMBLY Parts Diagram

  • Title

1

Toro 107-1678

DECK ASM

$

$

Not available

2

Toro 103-9792

DECK CHAIN ASM

$13.99

$

In Stock, only 1 left!

0

4

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

5

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

6

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 327-11

SCREW-HH

$11.99

$

In Stock, Qty 11

0

8

Toro 103-1081

STRUT ASM

$275.99

$

In Stock, only 2 left!

0

8:1

Toro 103-1072-01

STRUT
(Superseded to 109-1181)

$114.99

$

In Stock, Qty 10

0

8:2

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

8:3

Toro 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

0

11

Toro 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 12

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 13

0

15

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0
