74411 TE (Z 149) - Toro 112cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) DECK ASSEMBLY NO. 107-1678 Parts Diagram

112cm Z Master Zero-Turn Mower, Side-Discharge Deck

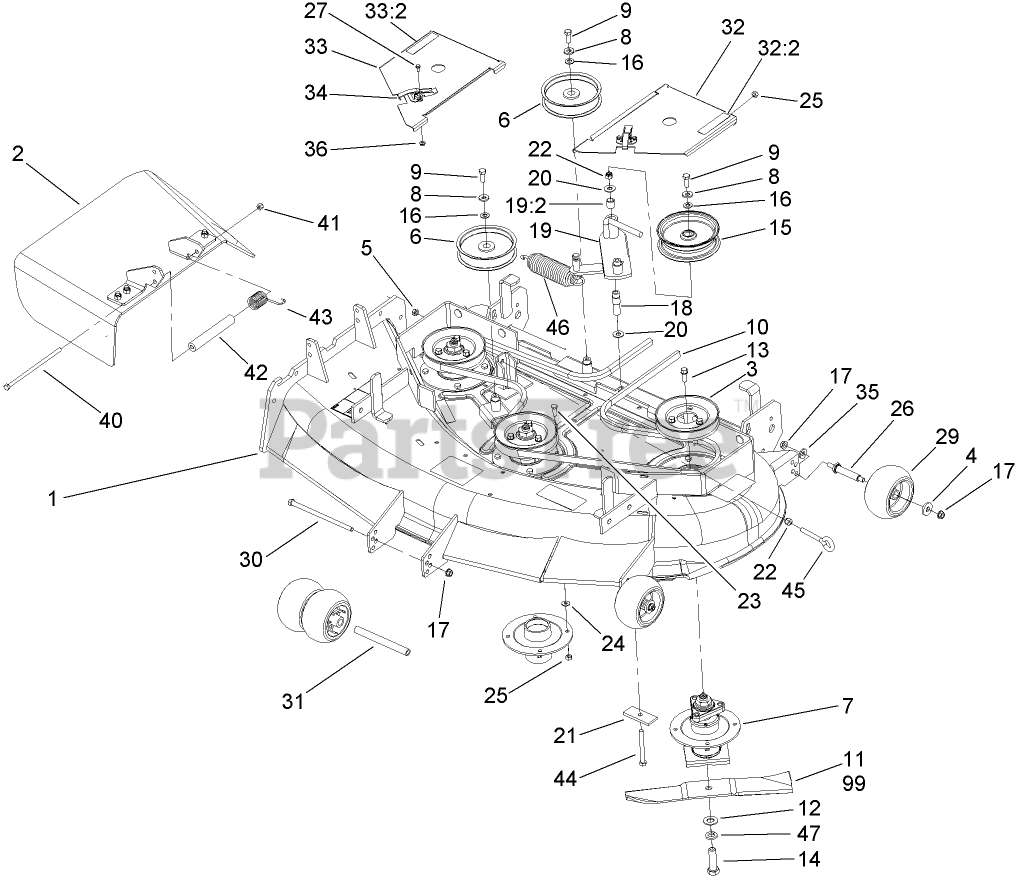

DECK ASSEMBLY NO. 107-1678 Parts Diagram

  • Title

1

Toro 107-1677

DECK DECAL ASM

$

$

Not available

2

Toro 108-2792

RUBBER DEFLECTOR ASM

$227.99

$

In Stock, only 1 left!

0

3

Toro 107-8586

PULLEY

$42.99

$

Usually ships in 3-6 days

0

4

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

5

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

6

Toro 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 7

0

7

Toro 107-8570

SPINDLE HOUSING ASM

$546.99

$

Usually ships in 3-6 days

0

8

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

9

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

10

Toro 98-3780

V-BELT, DRIVE

$142.99

$

Usually ships in 3-6 days

0

11

Toro 92-7952-03

BLADE-RECYCLER

$37.99

$

In Stock, only 1 left!

0

12

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

13

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

14

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

15

Toro 99-8912

PULLEY-IDLER, FLAT
(Superseded to 116-4669)

$79.99

$

In Stock, only 3 left!

0

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

18

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

19

Toro 99-8914

IDLER ARM ASM

$294.99

$

Usually ships in 3-6 days

0

19:2

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

20

Toro 1-809107

WASHER-HARDENED

$5.49

$

In Stock, only 2 left!

0

21

Toro 99-3946-01

PLATE-RETAINER, BOLT

$

$

Not available

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

26

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 7

0

27

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

29

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 16

0

30

Toro 323-28

SCREW-HH

$8.49

$

In Stock, only 1 left!

0

31

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

32

Toro 100-3961

LH COVER ASM

$

$

Not available

32:2

Toro 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

33

Toro 100-3962

RH COVER ASM

$

$

Not available

33:2

Toro 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

34

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

35

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

36

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 18

0

40

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

41

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

42

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

43

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

44

Toro 1-800805

SCREW-HH

$5.49

$

In Stock, only 4 left!

0

45

Toro 94-2547

BOLT-EYE

$27.99

$

Usually ships in 3-6 days

0

46

Toro 103-3330

Spring-Extension
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 11

0

47

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

99

Toro 104-1300

BLADE-ATOMIC

$45.99

$

Usually ships in 3-6 days

0

99

Toro 55-4940-03

BLADE-LIFT, HIGH

$38.99

$

In Stock, only 1 left!

0
