74410 (Z 400) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

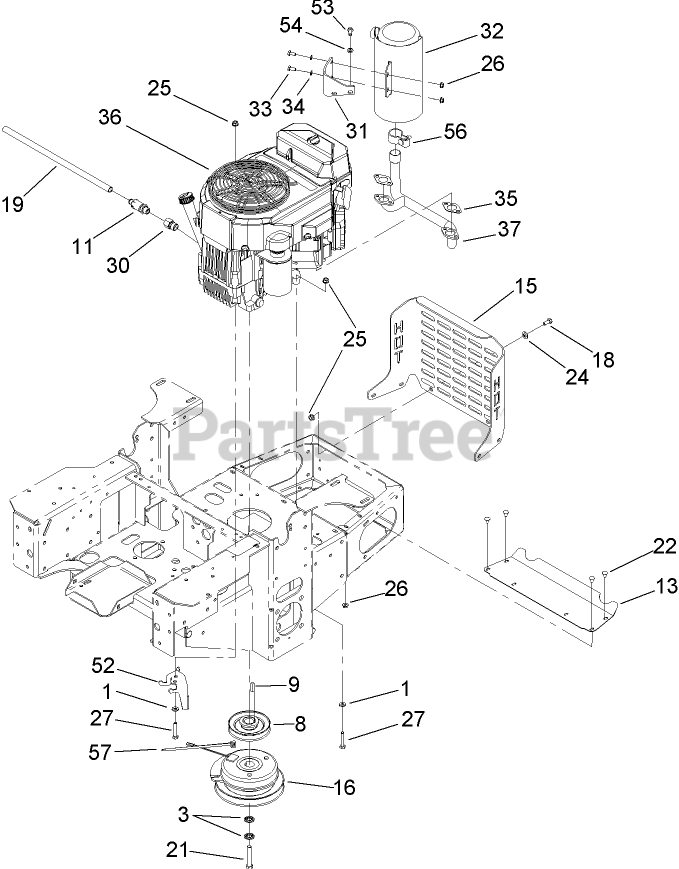

ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

  • Title
1

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

3

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

8

Toro 1-653035

PULLEY

$68.99

$

In Stock, only 1 left!

0

$2.49

$

In Stock, Qty 20+

0

11

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 2 left!

0

13

Toro 103-2740-03

Deflector-Short

$

$

Not available

15

Toro 103-4048-03

BUMPER-REAR

$

$

Not available

16

Toro 104-3624

CLUTCH

$387.99

$

In Stock, only 3 left!

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 106-7022

TUBE-DRAIN, OIL

$9.49

$

In Stock, only 4 left!

0

21

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, Qty 11

0

22

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

27

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

30

Toro 103-1966

Adapter

$18.99

$

In Stock, only 3 left!

0

31

Toro 103-4578-03

BRACKET-MUFFLER

$31.99

$

Usually ships in 3-6 days

0

32

Toro 103-8106

MUFFLER

$143.99

$

Usually ships in 3-6 days

0

33

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

35

Toro 1-653290

GASKET-EXHAUST

$21.99

$

Usually ships in 3-6 days

0

36

ENGINE-KAWASAKI, FH580V-AS30

Note: Not serviced separately

$

$

Not available

36

ENGINE-KAWASAKI, FH580V-AS30

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

37

Toro 103-4577

MANIFOLD-EXHAUST

$

$

Not available

52

Toro 109-7070-03

ANCHOR-CLUTCH

$51.99

$

In Stock, only 3 left!

0

53

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

54

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 7

0

56

Toro 103-8368

CLAMP-MUFFLER, 1.25 FLAT BAND

$17.99

$

Usually ships in 3-6 days

0

57

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0
