74410 (Z 400) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260002000) (2006) DECK MOUNTING ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

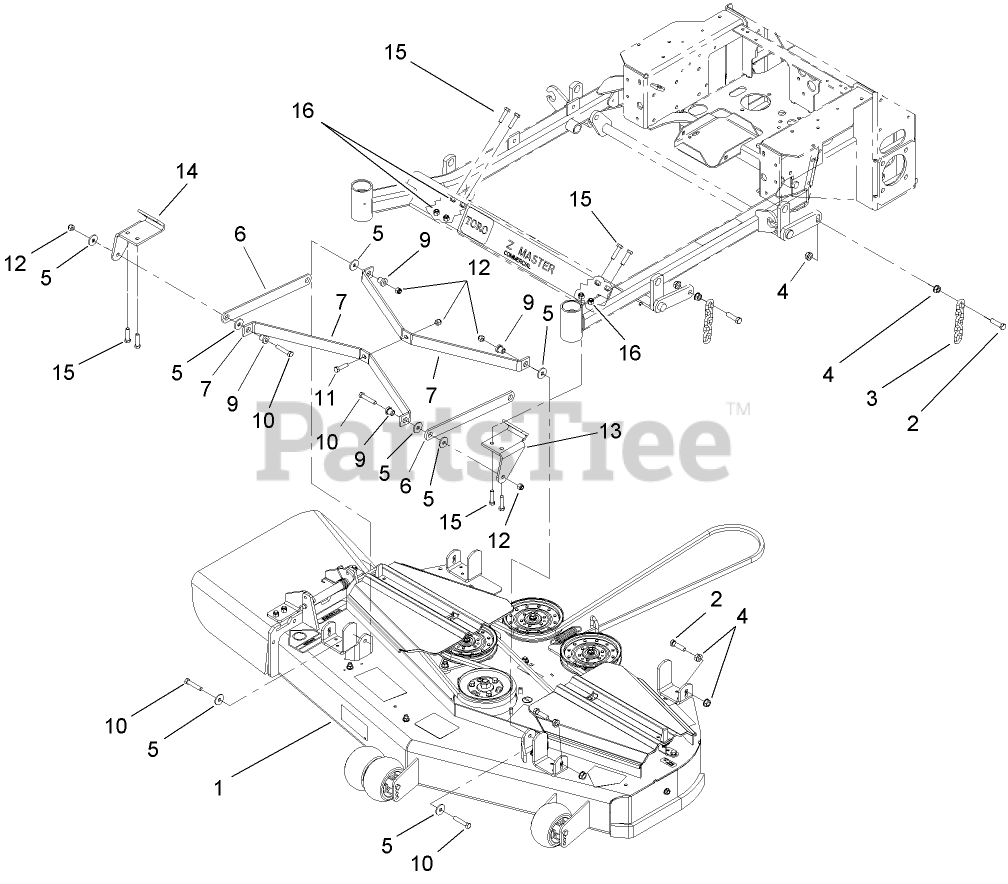

DECK MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro 107-1694

DECK ASM

$

$

Not available

2

Toro 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

3

Toro 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

4

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

5

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 13

0

6

Toro 107-1698-01

STRUT-FLAT

$32.99

$

Usually ships in 3-6 days

0

7

Toro 108-2168-01

BRACE-CROSS

$

$

Not available

9

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 20+

0

10

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 108-2164-01

PLATE-PULL, LH

$67.99

$

Usually ships in 3-6 days

0

14

Toro 108-2165-01

PLATE-PULL, RH

$68.99

$

Usually ships in 3-6 days

0

15

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0
