74410 (Z 400) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260002000) (2006) AIR FILTER AND MUFFLER ASSEMBLY KAWASAKI FH580V-AS14 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

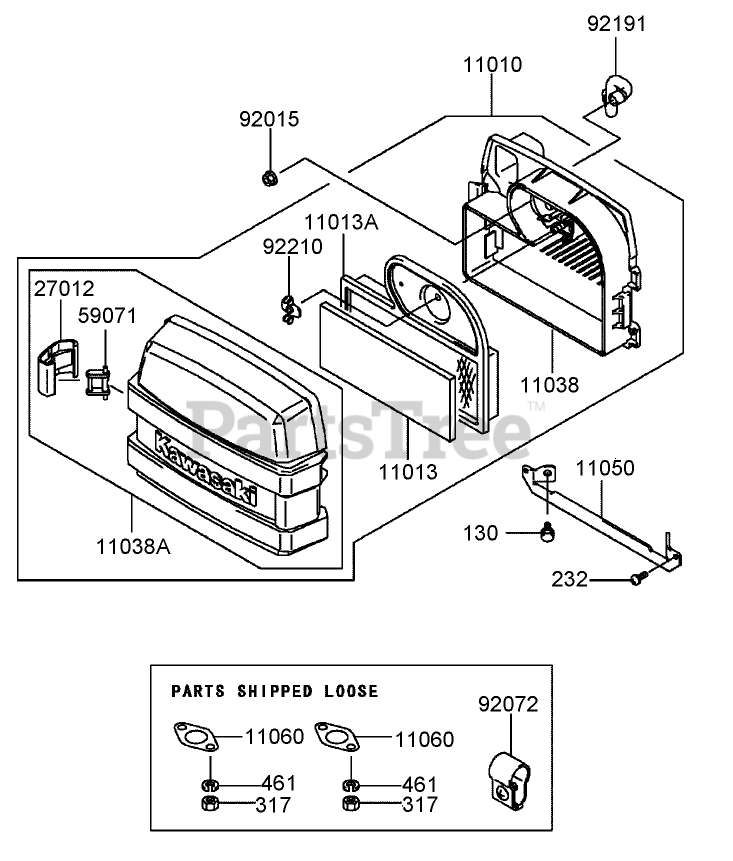

AIR FILTER AND MUFFLER ASSEMBLY KAWASAKI FH580V-AS14 Parts Diagram

  • Title
11010

Kawasaki 11010-7013

AIR FILTER ASM
(Superseded to 11010-7007)

Note: Obtain parts from www.kawpowerepc.com

$72.99

$

In Stock, Qty 6

0

11013

Kawasaki 11013-7001

Element-FILTER, AIR
(Superseded to 11013-7033)

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7002

Element-Filter, AIR

Note: Obtain parts from www.kawpowerepc.com

$21.99

$

In Stock, Qty 20+

0

11038

Kawasaki 11038-7006

AIR FILTER CASE ASM
(Superseded to 11038-7003)

Note: Obtain parts from www.kawpowerepc.com

$70.99

$

Usually ships in 2-5 days

0

11038A

Kawasaki 11038-7011

AIR FILTER CASE ASM
(Superseded to 11038-7013)

Note: Obtain parts from www.kawpowerepc.com

$67.99

$

In Stock, only 2 left!

0

11050

Kawasaki 11050-7006

Bracket

Note: Obtain parts from www.kawpowerepc.com

$9.49

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7021

GASKET-MUFFLER
(Superseded to 11060-7006)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

27012

Kawasaki 27012-7001

HOOK-FILTER, AIR
(Superseded to 27012-6003)

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 20+

0

59071

Kawasaki 59071-7014

Joint
(Superseded to 27012-6003)

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7009

BAND
(Superseded to 92072-7013)

Note: Obtain parts from www.kawpowerepc.com

$8.99

$

In Stock, only 1 left!

0

92191

Kawasaki 92191-7001

Tube

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92210

Kawasaki 92210-7004

NUT (M6)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

232

Kawasaki 232B0514

SCREW-PAN
(Superseded to 232AA0514)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, only 3 left!

0

317

Kawasaki 317R0800

NUT-HEX, SMALL (8mm)
(Superseded to 92210-0887)

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 16

0

461

Toro 461F0800

Washer-Spring (8mm)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
