74410 (Z 400) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250005001 - 250007000) (2005) PARKING BRAKE ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

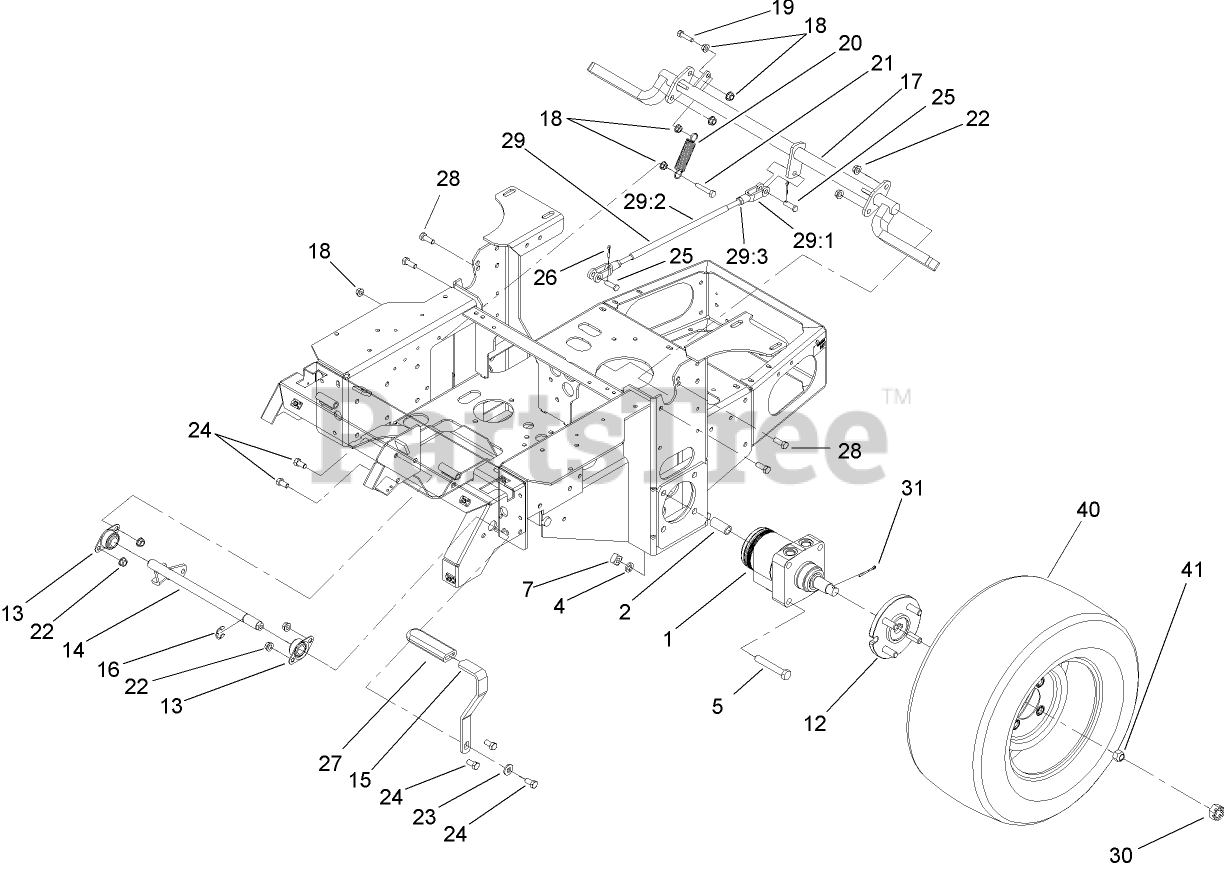

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 103-4695

MOTOR-WHEEL

$1222.99

$

Usually ships in 3-6 days

0

1:1

Toro 1-000119

SEAL KIT

Note: Not illustrated

$201.99

$

In Stock, only 1 left!

0

1:2

Toro 1-000138

BEARING AND SEAL KIT

Note: Not illustrated

$328.99

$

In Stock, only 1 left!

0

2

Toro 103-4042

SPACER-MOTOR, WHEEL

$

$

Not available

4

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

5

Toro 325-18

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

7

Toro 103-0131

NUT-SQUARE

$6.99

$

In Stock, Qty 9

0

12

Toro 1-602997

HUB ASM W/STUDS
(Superseded to 112-9049)

$199.99

$

In Stock, only 2 left!

0

13

Toro 1-633102

BEARING-FLANGE, SIDE

$19.99

$

In Stock, only 3 left!

0

14

Toro 103-3116

Shaft-Brake, Parking

$109.99

$

Usually ships in 3-6 days

0

15

Toro 1-653074-03

HANDLE-BRAKE, PARK

$67.99

$

Usually ships in 3-6 days

0

16

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 13

0

17

Toro 103-3960-03

BRAKE

$

$

Not available

18

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

20

Toro 1-323161

SPRING-IDLER

$12.99

$

In Stock, only 2 left!

0

21

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

24

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0

25

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 13

0

26

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

27

Toro 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 8

0

28

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

29

Toro 103-4335

BRAKE ROD ASM

$51.99

$

Usually ships in 3-6 days

0

29:1

Toro 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 6

0

29:2

Toro 103-3907

LINKAGE-HANDLE, BRAKE

$45.99

$

In Stock, only 1 left!

0

29:3

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

30

Toro 32136-5

NUT-HEX, SLOTTED

$8.99

$

In Stock, only 2 left!

0

31

Toro 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 15

0

40

Toro 1-543396

WHEEL AND TIRE ASM
(Superseded to 144-3664)

$204.99

$

Usually ships in 3-6 days

0

41

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 1 left!
