74410 (Z 400) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250005001 - 250007000) (2005) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

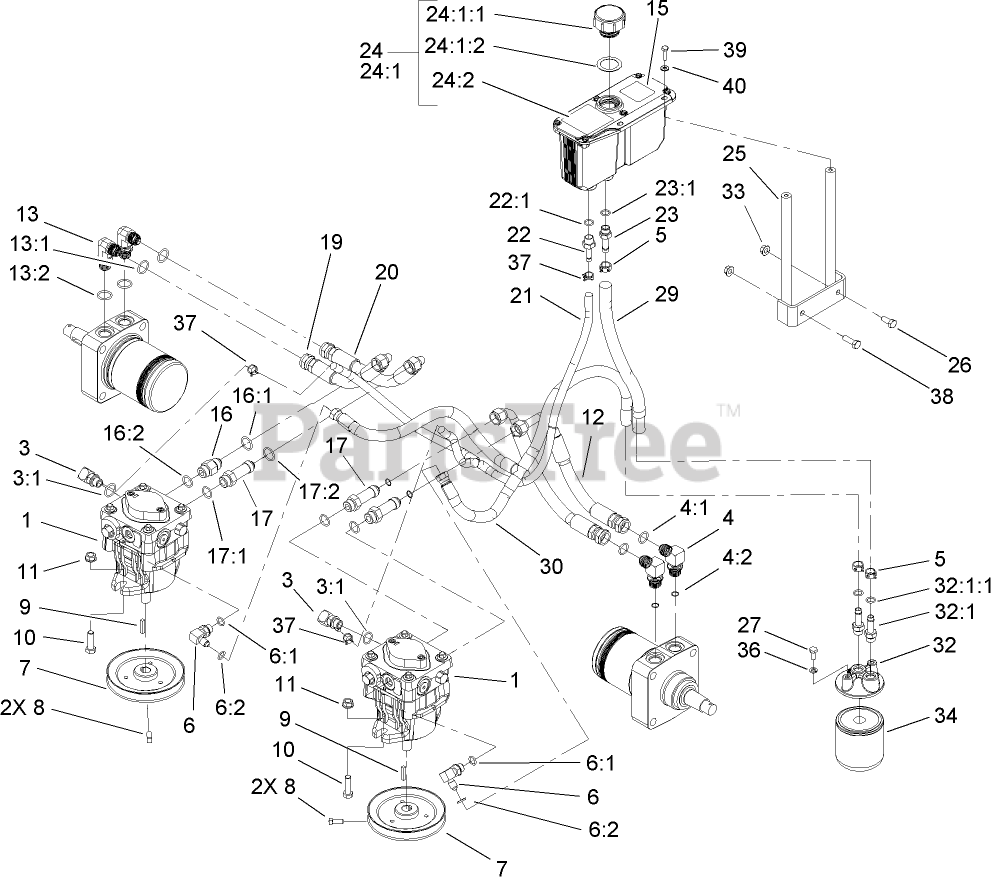

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 103-4040

PUMP-HYDRAULIC

$1129.99

$

Usually ships in 3-6 days

0

3

Toro 103-1799

ELBOW-90 DEG

$29.99

$

In Stock, only 1 left!

0

3:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

4

Toro 103-2153

FITTING-90 DEG

$49.99

$

Usually ships in 3-6 days

0

4:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

4:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

5

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

6

Toro 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 1 left!

0

6:1

Toro 1-603921

O-Ring
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

6:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

7

Toro 1-653156

PULLEY

$68.99

$

In Stock, only 3 left!

0

8

Toro 1-803050

SCREW-SET

$2.99

$

In Stock, Qty 8

0

9

Toro 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

10

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 103-4022

HOSE-REAR, LH

$90.99

$

Usually ships in 3-6 days

0

13

Toro 103-4797

ELBOW-90 DEG

$

$

Not available

13:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

13:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

15

Toro 103-2644

DECAL-EXHAUST

$2.99

$

In Stock, only 2 left!

0

16

Toro 103-4020

ADAPTER-STRAIGHT

$31.99

$

Usually ships in 3-6 days

0

16:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

16:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

17

Toro 103-1940

ADAPTER-HYD, STRAIGHT

$23.99

$

In Stock, only 3 left!

0

17:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

17:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

19

Toro 103-4021

HOSE-REAR, RH

$86.99

$

Usually ships in 3-6 days

0

20

Toro 1-653187

HOSE-REAR, RH

$78.99

$

In Stock, only 1 left!

0

21

Toro 103-2357

HYD HOSE ASM

$50.99

$

In Stock, only 1 left!

0

22

Toro 103-1801

Adapter-Straight

$30.99

$

In Stock, only 1 left!

0

22:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

23

Toro 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

24

Toro 103-1947

HYD Reservoir ASM

$263.99

$

Usually ships in 3-6 days

0

24:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

24:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$27.99

$

In Stock, Qty 5

0

24:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

24:2

Toro 1-523552

DECAL-TANK, HYD

$1.99

$

In Stock, Qty 15

0

25

Toro 103-3071-03

STAND-RESERVOIR

$56.99

$

Usually ships in 3-6 days

0

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 103-3077

HYD HOSE ASM

$11.99

$

In Stock, only 1 left!

0

30

Toro 103-2930

HYD HOSE ASM

$86.99

$

In Stock, only 3 left!

0

32

Toro 103-2889

Filter Head ASM

$107.99

$

Usually ships in 3-6 days

0

32:1

Toro 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

32:1:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

33

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Toro 1-633752

FILTER-OIL, HYD (WINTER)

$34.99

$

In Stock, only 1 left!

0

34

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 15

0

36

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

37

Toro 103-1716

Clamp-Hose

$1.49

$

In Stock, Qty 11

0

38

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+
