74410 (Z 400) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250005000) (2005) CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FH580V-AS14 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

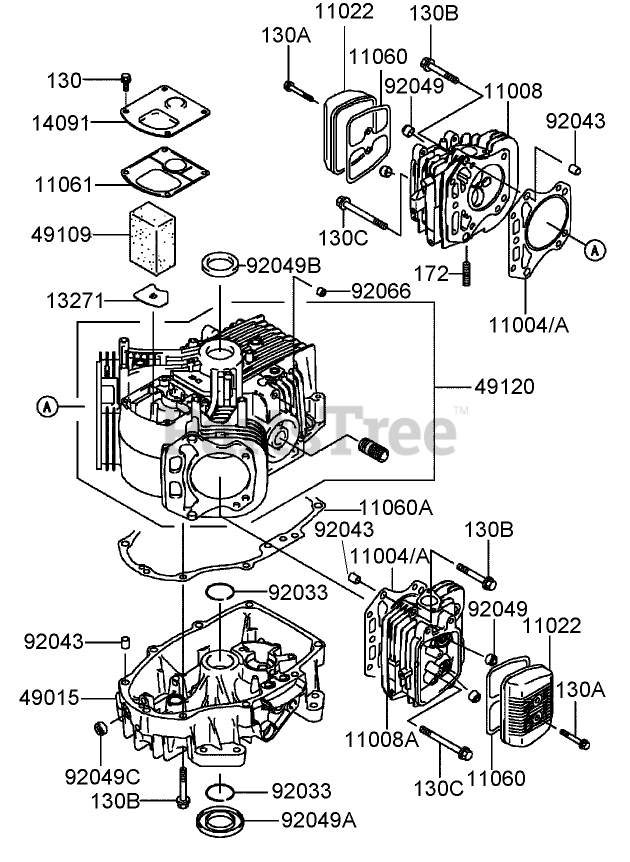

CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FH580V-AS14 Parts Diagram

  • Title

11004

Kawasaki 11004-7010

Gasket-Head
(Superseded to 11004-7016)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, Qty 20+

0

11004A

Kawasaki 11004-7016

GASKET-HEAD
(Superseded to 11004-7010)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, Qty 20+

0

11008

Kawasaki 11008-6043

HEAD-CYLINDER, NO. 1
(Superseded to 11008-6042)

Note: Obtain parts from www.kawpowerepc.com

$273.99

$

In Stock, Qty 9

0

11008A

Kawasaki 11008-7020

HEAD-CYLINDER, No. 2
(Superseded to 11008-7009)

Note: Obtain parts from www.kawpowerepc.com

$273.99

$

In Stock, only 1 left!

0

11022

Toro 11022-7003

Case-Rocker

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

11060

Kawasaki 11060-7001

GASKET-CASE, ROCKER

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-7008

GASKET-COVER, CRANKCASE
(Superseded to 11060-7007)

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7001

GASKET-BREATHER
(Superseded to 99996-6104)

Note: Obtain parts from www.kawpowerepc.com

$18.99

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7016

Plate

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, only 3 left!

0

14091

Toro 14091-7006

Cover

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

49015

Kawasaki 49015-6253

Cover-Crankcase
(Superseded to 49015-6226)

Note: Obtain parts from www.kawpowerepc.com

$180.99

$

Usually ships in 2-5 days

0

49109

Toro 49109-7002

Element-Breather

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

49120

Kawasaki 49120-7023

Crankcase
(Superseded to 49120-7113)

Note: Obtain parts from www.kawpowerepc.com

$552.99

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-7003

Ring-Snap

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 17

0

92043

Kawasaki 92043-7001

Pin

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 7

0

92049

Kawasaki 92049-7001

SEAL-OIL, R V C2 (6X11X10.2)

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-7015

SEAL-OIL, S D (35X62X8 L HSH)

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7016

SEAL-OIL, S D (35X48X8 R HSH)

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7019

SEAL-OIL, S O (8X14X5 HSH)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-7002

Plug
(Superseded to 92066-0881)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 6

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 15

0

130A

Kawasaki 130B0640

Bolt-Flanged (6X40)
(Superseded to 130AA0640)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, only 3 left!

0

130B

Toro 130T0850

Bolt-Flanged (8X50)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

130C

Kawasaki 130T0875

Bolt-Flanged (8X75)
(Superseded to 130CA0875)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 9

0

172

Toro 172G0818

Bolt-Stud (8X18)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
