74409 (Z 340) - Toro 40" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270000700) (2007) LH TRANSMISSION ASSEMBLY NO. 109-2241 Parts Diagram

40" Z Master Zero-Turn Mower, Side-Discharge Deck

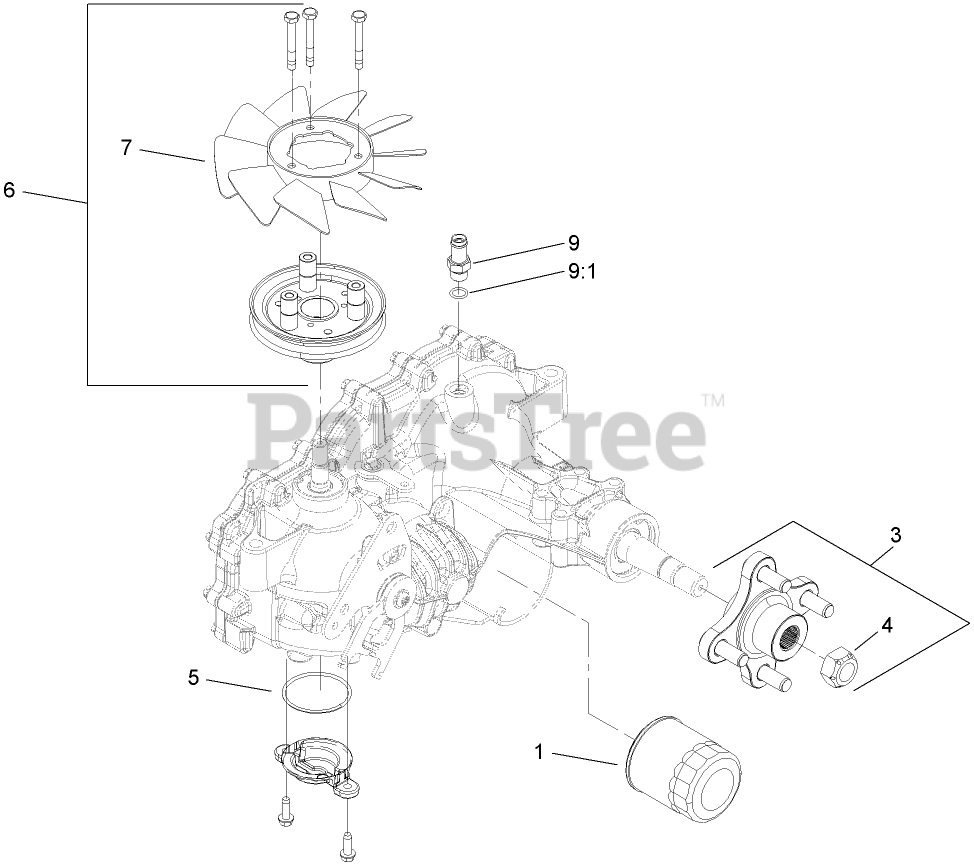

LH TRANSMISSION ASSEMBLY NO. 109-2241 Parts Diagram

  • Title

1

Toro 109-3321

ELEMENT-OIL FILTER, HYD

$28.99

$

In Stock, Qty 20+

0

2

Toro 109-3537

SEAL KIT
(Superseded to 140-8351)

Note: Not illustrated

$94.99

$

In Stock, Qty 6

0

3

Toro 109-3538

HUB KIT
(Superseded to 116-3872)

$69.99

$

In Stock, only 2 left!

0

4

Toro 109-3536

NUT-HUB

$23.99

$

In Stock, only 1 left!

0

5

Toro 109-3540

O RING-SEAL

$6.49

$

In Stock, Qty 20+

0

6

Toro 109-3541

FAN AND PULLEY KIT
(Superseded to 135-7346)

$109.99

$

Usually ships in 3-6 days

0

7

Toro 109-3542

FAN
(Superseded to 135-7346)

$109.99

$

Usually ships in 3-6 days

0

9

Toro 109-3278

ADAPTER-STRAIGHT

$131.99

$

Usually ships in 3-6 days

0

9:1

Toro 1-603921

O-Ring
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0
