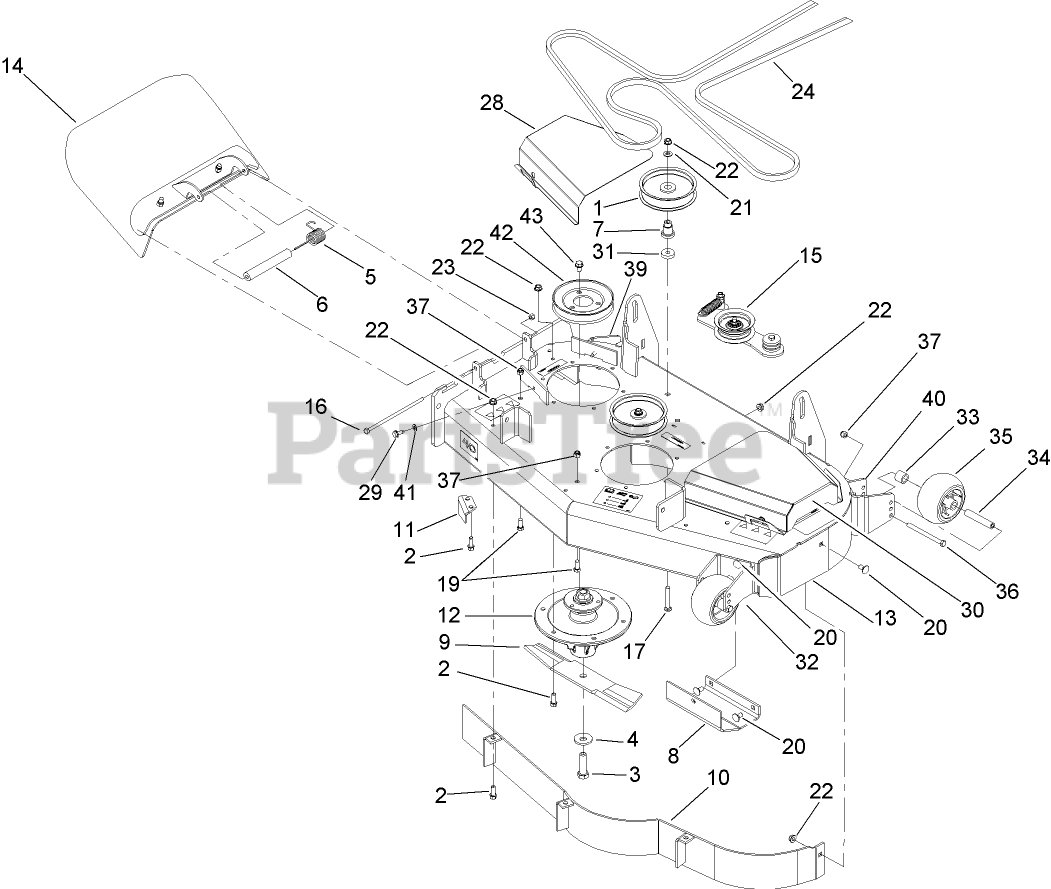

74409 TE (Z 300) - Toro 102cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) DECK ASSEMBLY Parts Diagram

102cm Z Master Zero-Turn Mower, Side-Discharge Deck

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 1-613098

PULLEY-IDLER

$49.99

$

In Stock, Qty 7

0

2

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

3

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

4

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 19

0

5

Toro 108-4052

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

6

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

7

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 4 left!

0

8

Toro 107-3166-01

SKID

$63.99

$

Usually ships in 3-6 days

0

9

Toro 108-4089-03

BLADE-ROTARY, 14 INCH (RECYCLING)

$33.99

$

Usually ships in 3-6 days

0

10

Toro 108-7266-01

BAFFLE ASM

$223.99

$

Usually ships in 3-6 days

0

11

Toro 108-7273-01

BAFFLE-DISCHARGE

$33.99

$

Usually ships in 3-6 days

0

12

Toro 114-0460

SPINDLE ASM
(Superseded to 114-0459)

$488.99

$

Usually ships in 3-6 days

0

13

Toro 114-0523

DECK DECAL ASM

$2899.99

$

Usually ships in 3-6 days

0

14

Toro 110-9917

DEFLECTOR ASM

$209.99

$

Usually ships in 3-6 days

0

15

Toro 112-3787

IDLER ASM

$

$

Not available

16

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

17

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

19

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

20

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 114-0454

BELT-V

$79.99

$

In Stock, only 1 left!

0

28

Toro 110-9959-01

COVER-RH

$119.99

$

Usually ships in 3-6 days

0

29

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

30

Toro 110-9982-01

COVER-LH

$119.99

$

Usually ships in 3-6 days

0

31

Toro 105-7788

Spacer

$9.99

$

In Stock, only 2 left!

0

32

Toro 110-9946-01

PLATE-SUPPORT, WHEEL

$

$

Not available

33

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

34

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 14

0

35

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

36

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 18

0

37

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

39

Toro 110-9991-01

MOUNT-WHEEL, RH

$

$

Not available

40

Toro 110-9992-01

MOUNT-WHEEL, LH

$

$

Not available

41

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

42

Toro 107-8586

PULLEY

$38.99

$

Usually ships in 3-6 days

0

43

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0
