74409 CP (Z 340) - Toro 40" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) SEAT ASSEMBLY Parts Diagram

40" Z Master Zero-Turn Mower, Side-Discharge Deck

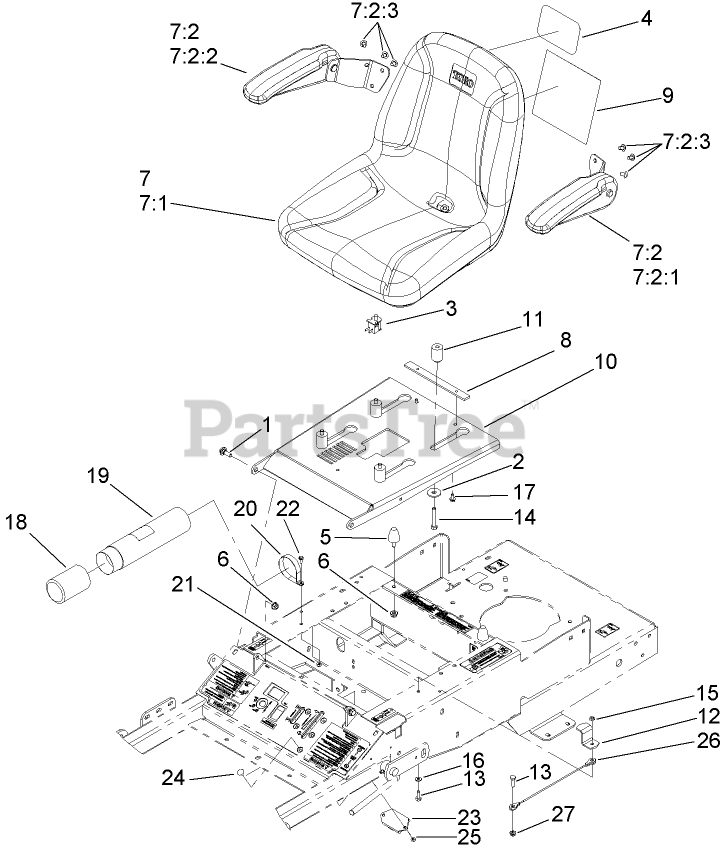

SEAT ASSEMBLY Parts Diagram

  • Title
1

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

2

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

3

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 11

0

4

Toro 94-2579

DECAL

$12.99

$

Usually ships in 3-6 days

0

5

Toro 103-9376

BUMPER-SEAT

$

$

Not available

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

7

Toro 112-3845

SEAT (WITH ARM RESTS)

$875.99

$

Usually ships in 3-6 days

0

7:1

$647.99

$

Usually ships in 3-6 days

0

7:2

Toro 108-6163

ARMREST KIT

$

$

Not available

7:2:1

Toro 110-6569

LH ARMREST KIT

$

$

Not available

7:2:2

Toro 110-6570

RH ARMREST KIT

$147.99

$

Usually ships in 3-6 days

0

7:2:3

Toro 108-6179

SCREW-HSBH

$13.99

$

Usually ships in 3-6 days

0

8

Toro 109-2427-03

BAR-STOP, SEAT

$

$

Not available

9

Toro 112-3836

DECAL-SERVICE

$

$

Not available

10

Toro 109-2607-03

BRACKET-SEAT

$483.99

$

Usually ships in 3-6 days

0

11

Toro 109-2608

SPACER

$15.99

$

Usually ships in 3-6 days

0

12

Toro 109-3519

BRACKET-HOLD DOWN, SEAT

$

$

Not available

13

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

15

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

16

Toro 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

17

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

18

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

19

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

20

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

21

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

23

Toro 100-6186

MODULE-DELAY, SEAT

$44.99

$

In Stock, only 4 left!

0

24

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

25

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 109-2628

CABLE-STOP, SEAT

$19.99

$

In Stock, only 1 left!

0

27

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
