74409 CP (Z 340) - Toro 40" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) IDLER ASSEMBLY Parts Diagram

40" Z Master Zero-Turn Mower, Side-Discharge Deck

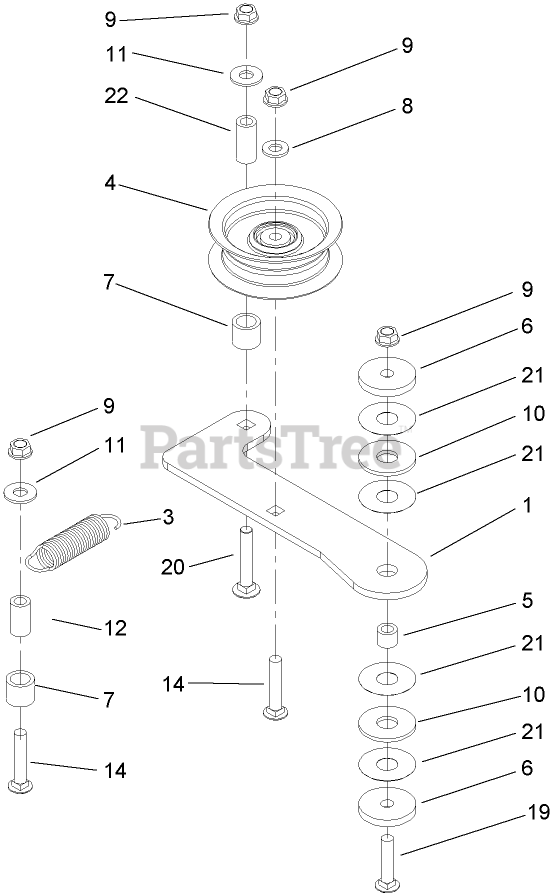

IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 110-9996

ARM-IDLER

$

$

Not available

3

Toro 108-4056

SPRING-EXTENSION

$8.49

$

In Stock, Qty 20+

0

4

Toro 106-2175

PULLEY-IDLER, FLAT
(Superseded to 132-9420)

$34.99

$

In Stock, Qty 20+

0

5

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

6

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 4 left!

0

7

Toro 108-4063

SPACER-RUBBER

$6.49

$

Usually ships in 3-6 days

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Toro 112-3788

SPACER

$

$

Not available

11

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

12

Toro 1-603401

SPACER

$6.99

$

In Stock, Qty 8

0

14

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

19

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

20

Toro 3231-7

SCREW-CARR

$6.99

$

In Stock, Qty 15

0

21

Toro 110-9998

WASHER

$

$

Not available

22

Toro 104-0151

SPACER

$13.99

$

In Stock, only 1 left!

0
