74409 CP (Z 340) - Toro 40" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) DECK ASEMBLY Parts Diagram

40" Z Master Zero-Turn Mower, Side-Discharge Deck

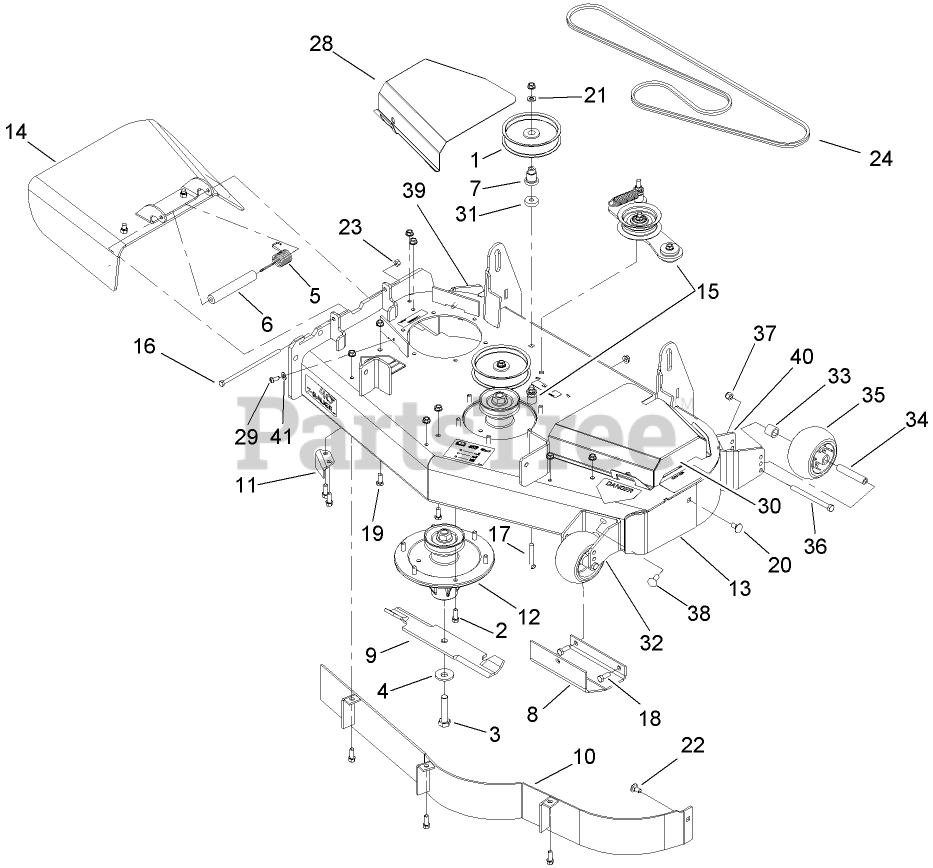

DECK ASEMBLY Parts Diagram

  • Title

1

Toro 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

0

2

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

3

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

4

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 20+

0

5

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, Qty 8

0

6

Toro 105-4622

SPACER

$10.99

$

In Stock, Qty 6

0

7

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, Qty 20+

0

8

Toro 107-3166-01

SKID

$69.99

$

Usually ships in 3-6 days

0

9

Toro 108-4081-03

BLADE-14 INCH (HIGH SAIL)

$34.99

$

In Stock, Qty 8

0

10

Toro 108-7266-01

BAFFLE ASM

$241.99

$

Usually ships in 3-6 days

0

11

Toro 108-7273-01

BAFFLE-DISCHARGE

$34.99

$

Usually ships in 3-6 days

0

12

Toro 110-9963

SPINDLE ASM

$566.99

$

Usually ships in 3-6 days

0

13

Toro 112-3769

DECK ASM

$2841.99

$

Usually ships in 3-6 days

0

14

Toro 110-9917

DEFLECTOR ASM

$256.99

$

Usually ships in 3-6 days

0

15

IDLER ASM

Note: Not serviced separately

$

$

Not available

16

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 13

0

17

Toro 3231-31

SCREW-CARR

$7.49

$

In Stock, Qty 20+

0

18

Toro 323-46

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

19

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

20

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 114-0453

BELT-V

$64.99

$

In Stock, Qty 7

0

28

Toro 110-9959-01

COVER-RH

$146.99

$

Usually ships in 3-6 days

0

29

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

30

Toro 110-9982-01

COVER-LH

$146.99

$

Usually ships in 3-6 days

0

31

Toro 105-7788

Spacer

$9.49

$

In Stock, Qty 15

0

32

Toro 110-9946-01

PLATE-SUPPORT, WHEEL

$

$

Not available

33

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

34

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

35

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

36

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

37

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

38

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

39

Toro 110-9991-01

MOUNT-WHEEL, RH

$

$

Not available

40

Toro 110-9992-01

MOUNT-WHEEL, LH

$

$

Not available

41

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
