74409 CP (Z 300) - Toro 40" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) MOTION CONTROL ASSEMBLY Parts Diagram

40" Z Master Zero-Turn Mower, Side-Discharge Deck

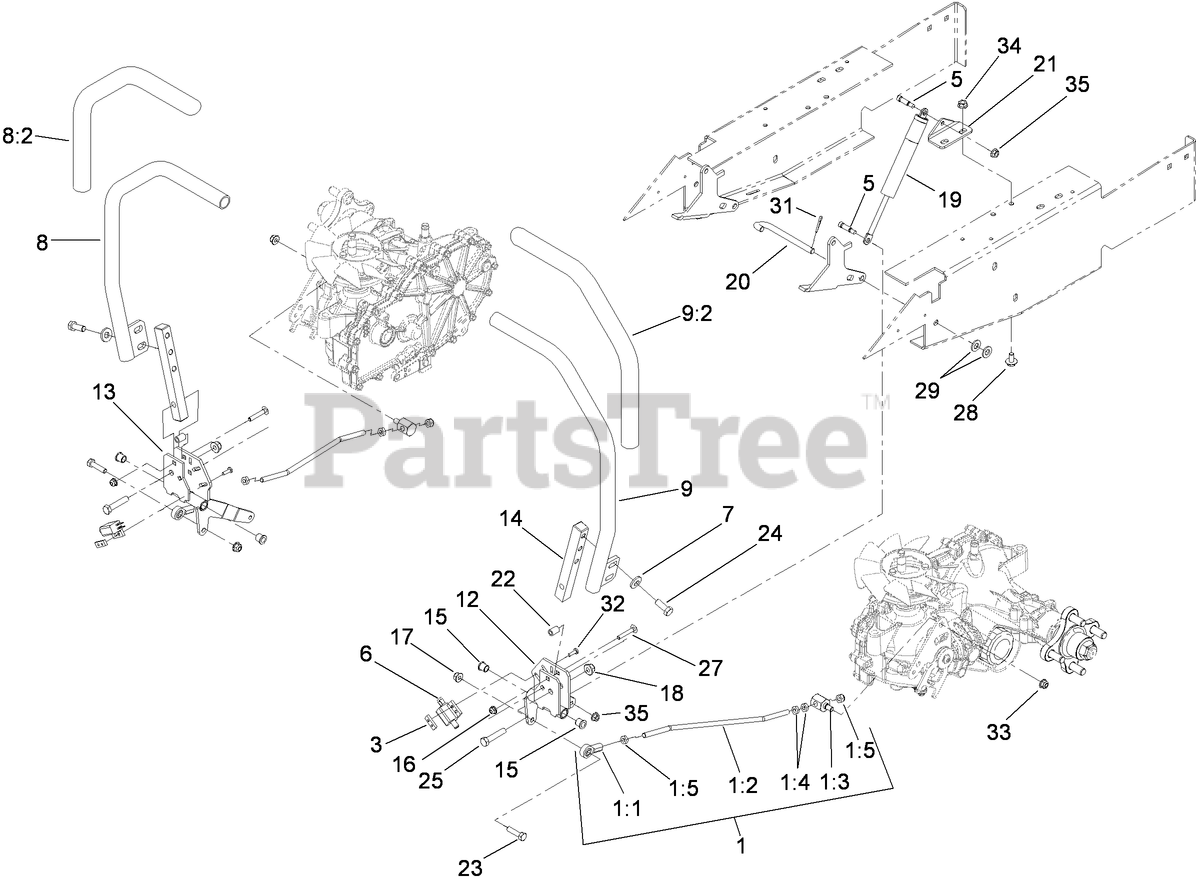

MOTION CONTROL ASSEMBLY Parts Diagram

  • Title
1

STEERING ROD ASM

Note: Not serviced separately

$

$

Not available

1:1

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, Qty 13

0

1:2

Toro 103-9407

ROD-STEERING, LH

$23.99

$

In Stock, only 3 left!

0

1:3

Toro 103-9373

TRUNNION

$21.99

$

Usually ships in 3-6 days

0

1:4

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

1:5

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

3

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

0

5

Toro 1-809057

SCREW-HSH

$

$

Not available

6

Toro 65-7410

SWITCH-POLE, SINGLE
(Superseded to 1-513051)

$19.99

$

In Stock, Qty 20+

0

7

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Toro 112-3814

RH CONTROL LEVER ASM

$

$

Not available

8:2

Toro 108-5213

GRIP-FOAM

$33.99

$

Usually ships in 3-6 days

0

9

Toro 112-3815

LH CONTROL LEVER ASM

$

$

Not available

9:2

Toro 108-5213

GRIP-FOAM

$33.99

$

Usually ships in 3-6 days

0

12

Toro 103-9411

CONTROL-STEERING, RH

$

$

Not available

13

Toro 103-9413

CONTROL-STEERING, LH

$

$

Not available

14

Toro 103-9414

MOUNT-POST, LEVER

$

$

Not available

15

Toro 103-9928

BEARING

$7.99

$

In Stock, Qty 20+

0

16

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 109-2339

DAMPER-CONTROL, MOTION

$76.99

$

In Stock, Qty 20+

0

20

Toro 109-2423

SHAFT-PIVOT, CONTROL

$

$

Not available

21

Toro 109-2428

BRACKET-DAMPER

$

$

Not available

22

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

23

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

24

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3229-4

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

28

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

29

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

32

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

33

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

34

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

35

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0
