74408 (Z 300) - Toro 34" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) LH TRANSMISSION ASSEMBLY NO. 116-1205 Parts Diagram

34" Z Master Zero-Turn Mower, Side-Discharge Deck

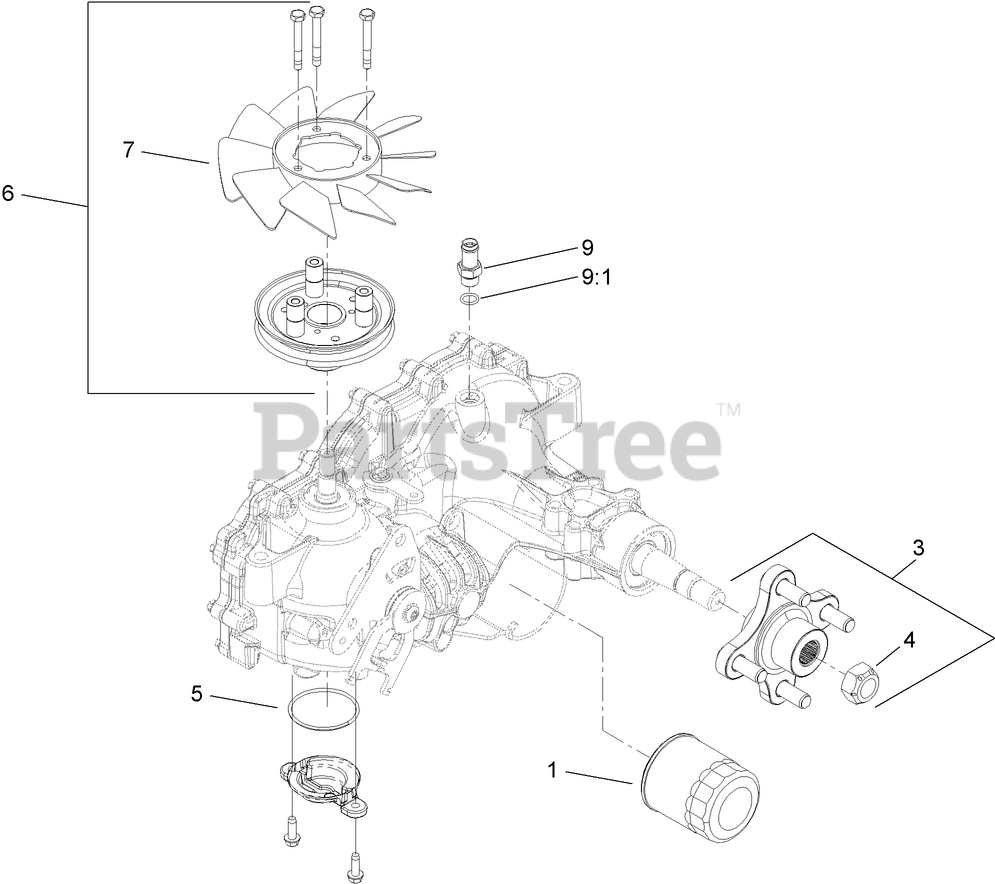

LH TRANSMISSION ASSEMBLY NO. 116-1205 Parts Diagram

  • Title
1

Toro 109-3321

ELEMENT-OIL FILTER, HYD

$31.99

$

In Stock, only 4 left!

0

2

Toro 109-3537

SEAL KIT
(Superseded to 140-8351)

Note: Not illustrated

$90.99

$

In Stock, only 1 left!

0

3

Toro 109-3538

HUB KIT
(Superseded to 116-3872)

$69.99

$

In Stock, only 1 left!

0

4

Toro 109-3536

NUT-HUB

$22.99

$

Usually ships in 3-6 days

0

5

Toro 109-3540

O RING-SEAL

$6.49

$

In Stock, Qty 6

0

6

Toro 116-1207

FAN AND PULLEY KIT
(Superseded to 135-7346)

$99.99

$

Usually ships in 3-6 days

0

7

Toro 116-1206

FAN-7 INCH, 10 BLADE

$

$

Currently unavailable

9

Toro 109-3278

ADAPTER-STRAIGHT

$124.99

$

Usually ships in 3-6 days

0

9:1

Toro 1-603921

O-Ring
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0
