74408 (Z 300) - Toro 34" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) HYDRAULIC DRIVE ASSEMBLY Parts Diagram

34" Z Master Zero-Turn Mower, Side-Discharge Deck

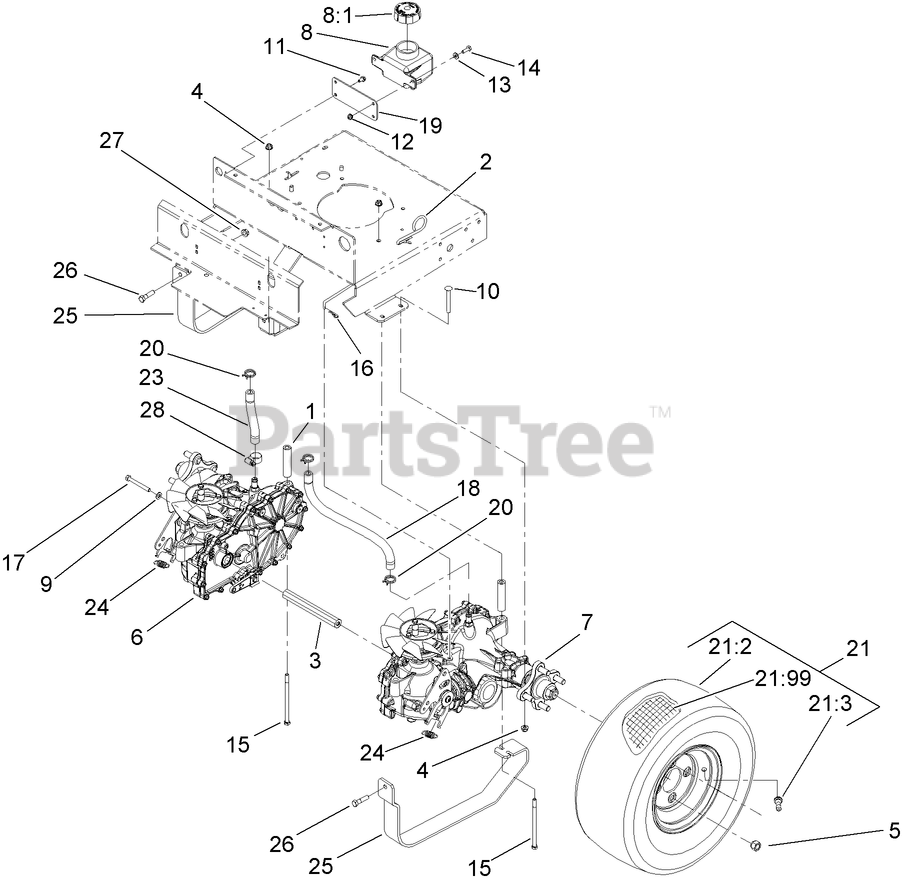

HYDRAULIC DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 103-9397

SPACER-HYDRO

$20.99

$

Usually ships in 3-6 days

0

2

Toro 103-9380

ROD-BYPASS, HYDRO

$26.99

$

Usually ships in 3-6 days

0

3

Toro 103-9398

SPACER-AXLE

$70.99

$

Usually ships in 3-6 days

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

6

Toro 116-1204

RH TRANSAXLE ASM

$2187.99

$

Usually ships in 3-6 days

0

7

Toro 116-1205

LH TRANSAXLE ASM

$2187.99

$

Usually ships in 3-6 days

0

8

Toro 109-2250

TANK-HYD

$66.99

$

In Stock, Qty 8

0

8:1

Toro 109-3320

CAP-RESERVOIR, HYD

$28.99

$

In Stock, only 1 left!

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Toro 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 15

0

11

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

12

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-800286

SCREW-HH

$

$

Not available

16

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

18

Toro 109-3459

HOSE-HYD

$20.99

$

Usually ships in 3-6 days

0

19

Toro 103-9350-03

PLATE-MOUNT, TANK

$

$

Not available

20

Toro 109-3322

CLAMP-HOSE

$1.49

$

In Stock, Qty 9

0

21

Toro 112-3794

WHEEL AND TIRE ASM

$

$

Not available

21:2

Toro 112-3797

TIRE

$

$

Not available

21:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

21:99

Toro 107-2491

TUBE-TIRE

$83.99

$

In Stock, only 2 left!

0

23

Toro 109-3319

HOSE-HYD

$8.99

$

Usually ships in 3-6 days

0

24

Toro 109-2631

SPRING-RETURN, NEUTRAL

$6.99

$

Usually ships in 3-6 days

0

25

Toro 114-0469-03

GUARD-TRANSMISSION

$99.99

$

Usually ships in 3-6 days

0

26

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

28

Toro 109-6801

CLAMP-HOSE

$9.49

$

Usually ships in 3-6 days

0
