74408 CP (Z 300) - Toro 34" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) DECK ASSEMBLY Parts Diagram

34" Z Master Zero-Turn Mower, Side-Discharge Deck

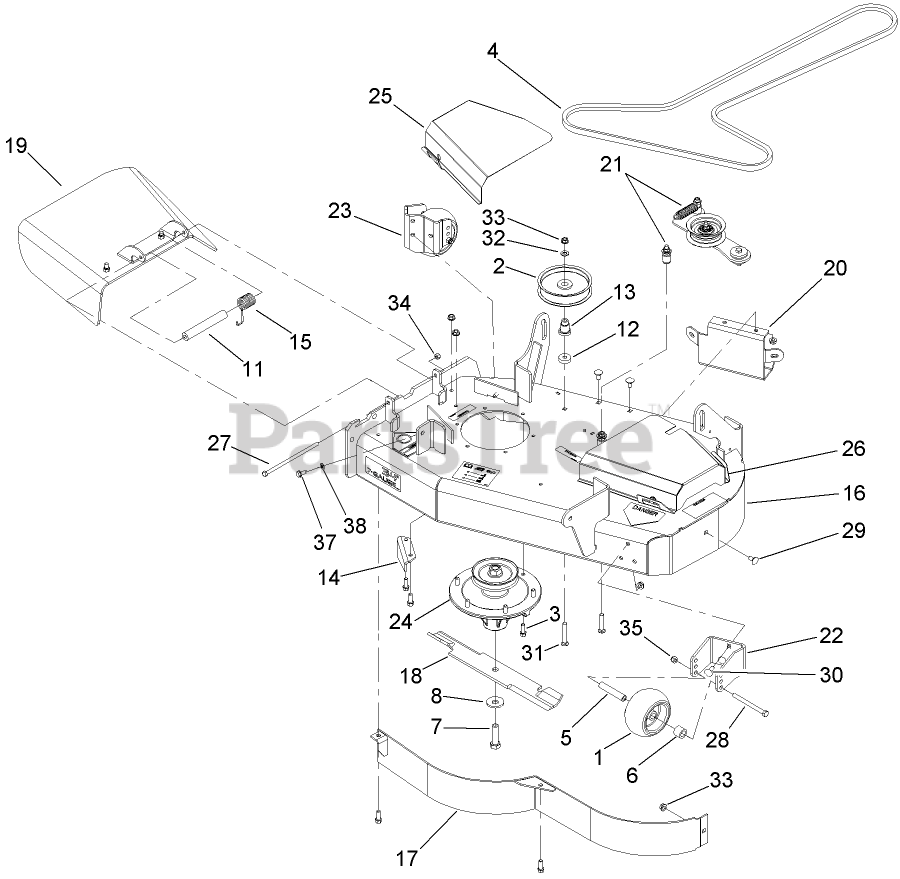

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

2

Toro 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

0

3

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

4

Toro 114-0451

BELT

$123.99

$

Usually ships in 3-6 days

0

5

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

6

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

7

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

8

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 20+

0

11

Toro 105-4622

SPACER

$10.99

$

In Stock, Qty 6

0

12

Toro 105-7788

Spacer

$9.49

$

In Stock, Qty 15

0

13

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, Qty 20+

0

14

Toro 107-8541-01

BAFFLE-DISCHARGE

$21.99

$

Usually ships in 3-6 days

0

15

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, Qty 7

0

16

Toro 114-0503

DECK DECAL ASM

$2818.99

$

Usually ships in 3-6 days

0

17

Toro 110-1515-01

BAFFLE

$327.99

$

Usually ships in 3-6 days

0

18

Toro 110-9915-03

BLADE-ROTARY, 17.50 HIGH FLOW

$34.99

$

In Stock, only 2 left!

0

19

Toro 110-9917

DEFLECTOR ASM

$256.99

$

Usually ships in 3-6 days

0

20

Toro 110-9926-01

PLATE-SKID

$

$

Not available

21

Toro 112-3787

IDLER ASM

$

$

Not available

22

Toro 110-9946-01

PLATE-SUPPORT, WHEEL

$

$

Not available

23

Toro 110-9949-01

MOUNT-WHEEL, RH

$

$

Not available

24

Toro 110-9962

SPINDLE ASM

$577.99

$

Usually ships in 3-6 days

0

25

Toro 110-9959-01

COVER-RH

$146.99

$

Usually ships in 3-6 days

0

26

Toro 110-9968-01

COVER-LH

$

$

Not available

27

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 13

0

28

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

29

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

30

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

31

Toro 3231-31

SCREW-CARR

$7.49

$

In Stock, Qty 20+

0

32

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

34

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

35

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

37

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

38

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
